GSM60U07 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

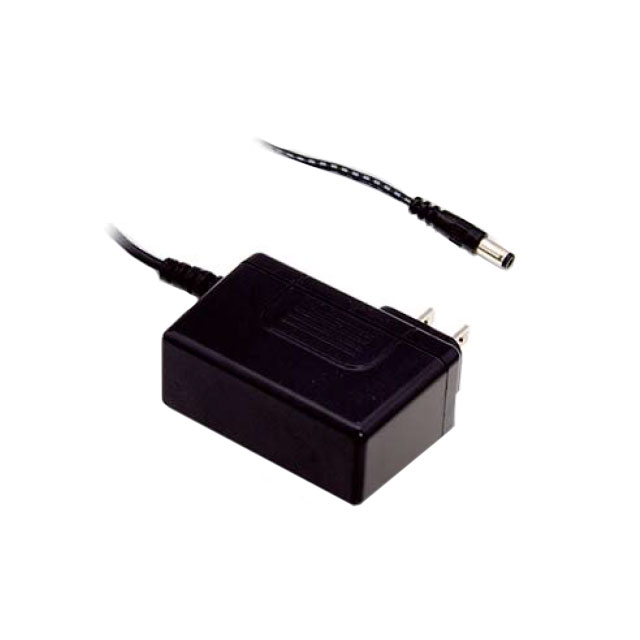

AC/DC WALL MNT ADAPTER 7.5V 45W
| Part | Input Connector | Approval Agency | Current - Output (Max) [Max] | Output Connector [x] | Output Connector [diameter] | Output Connector | Power (Watts) | Form | Efficiency | Applications | Cord Length | Cord Length | Voltage - Output | Voltage - Input [Min] | Voltage - Input [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Region Utilized | Input Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Polarization |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | NEMA 1-15P | CB FCC UR | 6 A | 11 mm | 2.1 mm 5.5 mm | Barrel Plug | 45 W | Wall Mount | 85 % | Medical | 1 m | 39.4 in | 7.5 V | 80 VAC | 264 VAC | -30 ░C | 70 °C | North America | Fixed Blade | 1.26 in | 47.5 mm | 2.97 in | 32 mm | 1.87 in | 75.5 mm | Positive Center |
