TB67S128 Series

Catalog

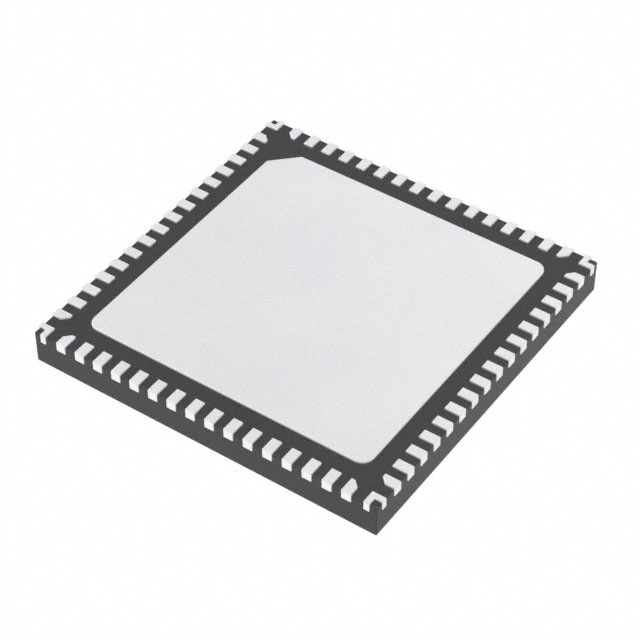

MOTOR DRIVER IC, STEPPER, VQFN-64 ROHS COMPLIANT: YES

Part	Motor Type - Stepper	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Load [Max]	Voltage - Load [Min]	Output Configuration	Interface	Mounting Type	Function	Applications	Supplier Device Package	Technology	Package / Case	Current - Output	Step Resolution	Voltage - Supply [Max]	Voltage - Supply [Min]	Step Resolution	Motor Type - AC, DC
Toshiba Semiconductor and Storage TB67S128FTG(O,EL)	Bipolar	85 C	-40 ¯C	44 V	6.5 V	Half Bridge (4)	Parallel	Surface Mount	Driver - Fully Integrated Control and Power Stage	General Purpose	64-VQFN (9x9)	Power MOSFET	64-VFQFN Exposed Pad	5 A	0.03125 0.0625 0.125	5.5 V	0 V
Toshiba Semiconductor and Storage TB67S128FTG,EL	Bipolar	85 °C	-40 C	44 V	6.5 V	Half Bridge (4)	PWM	Surface Mount	Driver - Fully Integrated Control and Power Stage	General Purpose	64-VQFN (9x9)	Power MOSFET	64-VFQFN Exposed Pad	5 A		5.25 V	4.75 V	1 1/128 1/16 1/2 1/32 1/4 1/8	Brushless DC (BLDC)
