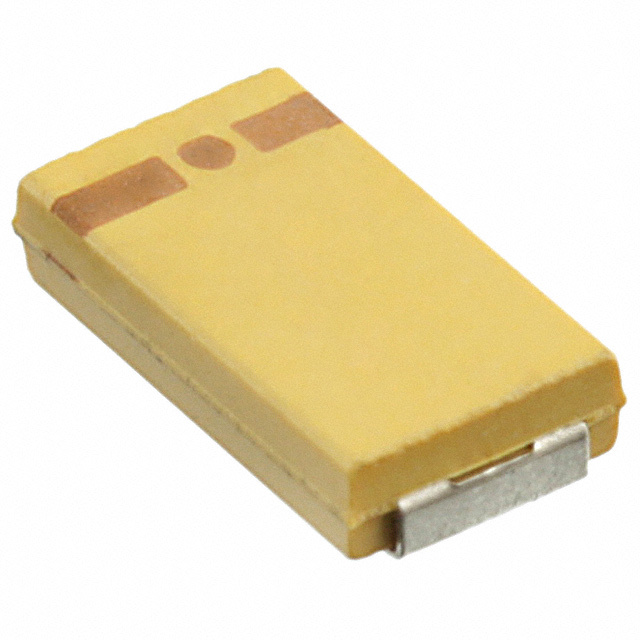

T494U Series
Manufacturer: KEMET
Beta
⌘K
CAP TANT SOLID 10UF 16V U CASE 20%( 6 X 3.2 X 1.4MM) INWARD L SMD 6032-15 1 OHM 125°C T/R
| Part | Tolerance | Lifetime @ Temp. | Capacitance | Type | ESR (Equivalent Series Resistance) | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Operating Temperature [Min] | Operating Temperature [Max] | Manufacturer Size Code | Features | Package / Case | Package / Case | Mounting Type | Height - Seated (Max) [Max] | Height - Seated (Max) | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 20 % | 2000 Hrs | 10 µF | Molded | 1 Ohms | 6 mm | 0.236 in | 0.11 " | 2.8 mm | -55 C | 125 °C | U | General Purpose | 6028 Metric | 2311 | Surface Mount | 0.059 " | 1.5 mm | 16 V |
 KEMET | 10 % | 2000 Hrs | 10 µF | Molded | 800 mOhm | 6 mm | 0.236 in | 0.11 " | 2.8 mm | -55 C | 125 °C | U | General Purpose | 6028 Metric | 2311 | Surface Mount | 0.059 " | 1.5 mm | 20 V |
