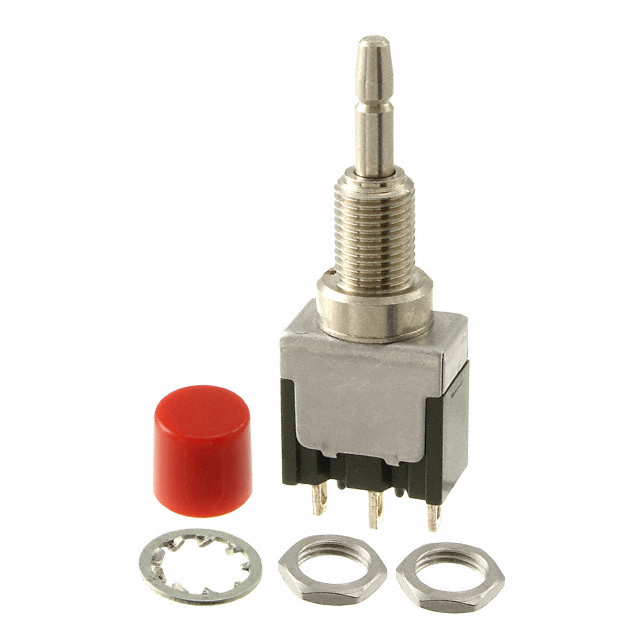

MB2065L Series

Catalog

SWITCH PUSHBUTTON SPDT 6A 125V

Part	Mechanical Life	Electrical Life	Voltage Rating - DC	Circuit	Panel Cutout Dimensions [diameter]	Actuator Marking	Mounting Type	Current Rating (Amps)	Switch Function	Color - Actuator/Cap	Features	Actuator Type	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Type	Termination Style	Ingress Protection
NKK Switches MB2065LS1W01-BC	100000 Cycles	25000 Steps	30 V	SPDT	6.5 mm	No Marking	Panel Mount Rear	3 A 6 A	On-On	Red	Epoxy Sealed Terminals	Button Round	125 V	85 °C	-30 ░C	Standard	Solder Lug
NKK Switches MB2065LS1W01-BA	100000 Cycles	25000 Steps	30 V	SPDT	6.5 mm	No Marking	Panel Mount Rear	3 A 6 A	On-On	Black	Epoxy Sealed Terminals	Button Round	125 V	85 °C	-30 ░C	Standard	Solder Lug
NKK Switches MB2065LD3W01-CB	50000 Cycles	25000 Steps	30 V	SPDT	6.5 mm	No Marking	Panel Mount Rear	3 A 6 A	On-On	White	Epoxy Sealed Terminals	Button Round	125 V	85 °C	-30 ░C	Standard	Solder Lug	IP67 - Dust Tight Waterproof
NKK Switches MB2065LD1W01	100000 Cycles	25000 Steps	30 V	SPDT	6.5 mm	No Marking	Panel Mount Rear	3 A 6 A	On-On		Epoxy Sealed Terminals	Plunger for Cap	125 V	85 °C	-30 ░C	Standard	Solder Lug

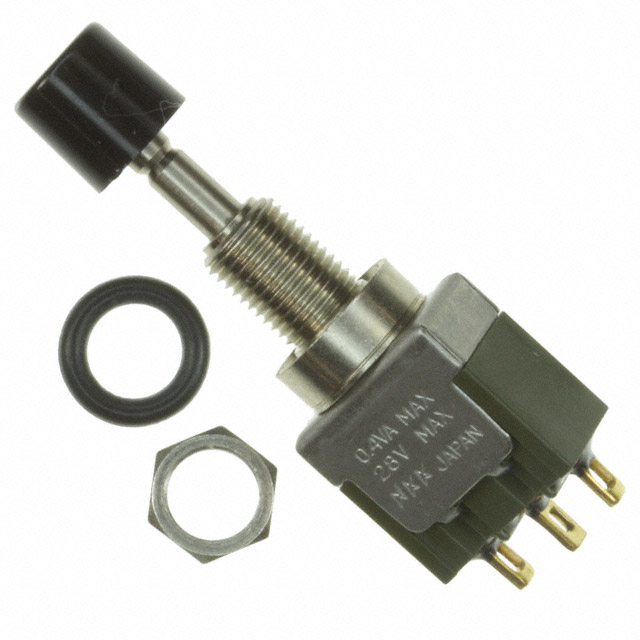

NKK Switches MB2065LD3G01-BA	50000 Cycles	50000 Cycles	28 V	SPDT	6.5 mm	No Marking	Panel Mount Rear	0.4 VA	On-On	Black	Epoxy Sealed Terminals	Button Round	28 V	85 °C	-30 ░C	Standard	Solder Lug	IP67 - Dust Tight Waterproof
