32_N-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

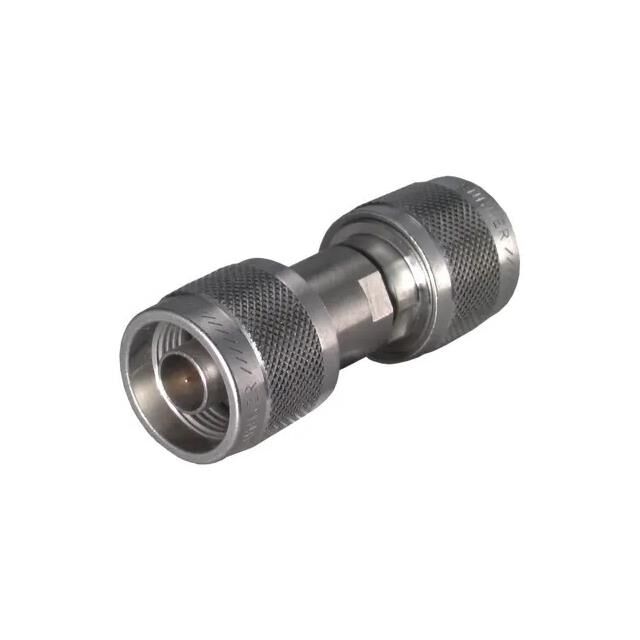

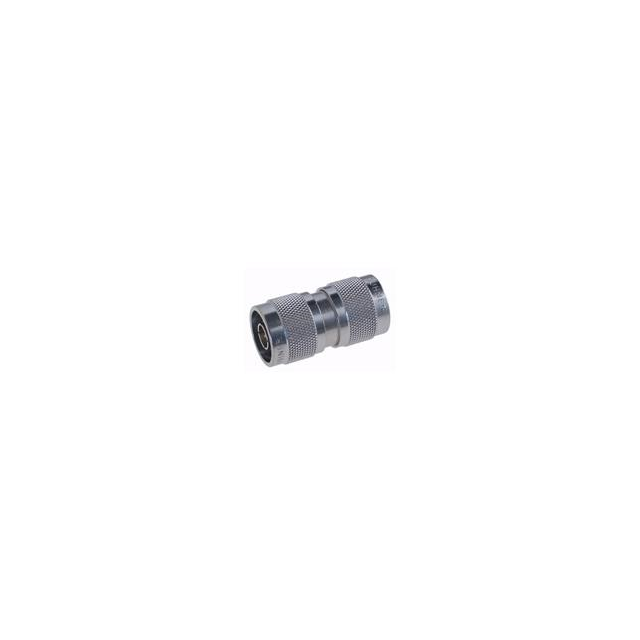

RF ADAPTER, N - N PLUG, 50 OHM ROHS COMPLIANT: YES
| Part | Body Material | Center Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Adapter Type | Conversion Type | Convert To (Adapter End) | Impedance | Adapter Series | Style | Convert From (Adapter End) | Center Gender | Frequency - Max [Max] | Mounting Type | Center Contact Plating | Body Finish | Dielectric Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | Stainless Steel | Beryllium Copper | -55 C | 70 °C | 500 | Plug to Plug | Same Series | N Plug Male Pin | 50 Ohms | N to N | Straight | N Plug Male Pin | Male to Male | 18 GHz | Free Hanging (In-Line) | Gold | ||
 Huber+Suhner, Inc. | Brass | Brass | -65 ░C | 165 °C | 500 | Plug to Plug | Same Series | N Plug Male Pin | 50 Ohms | N to N | Straight | N Plug Male Pin | Male to Male | 11 GHz | Free Hanging (In-Line) | Gold | White Bronze | Polytetrafluoroethylene (PTFE) |
