MRJR54 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

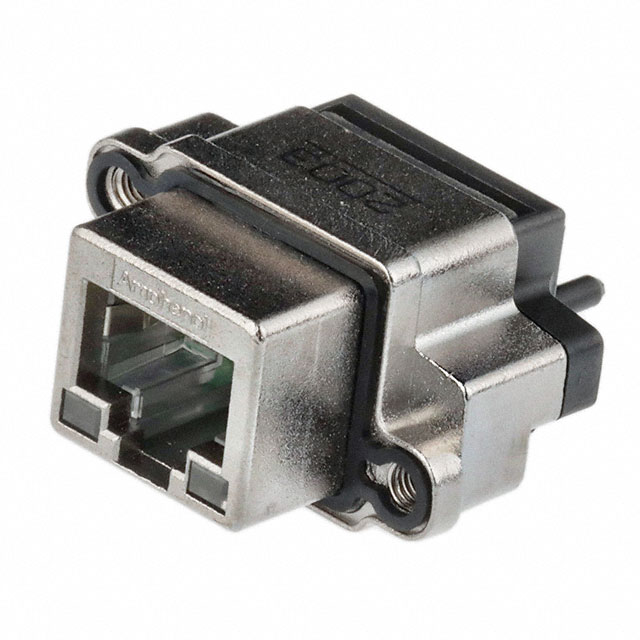

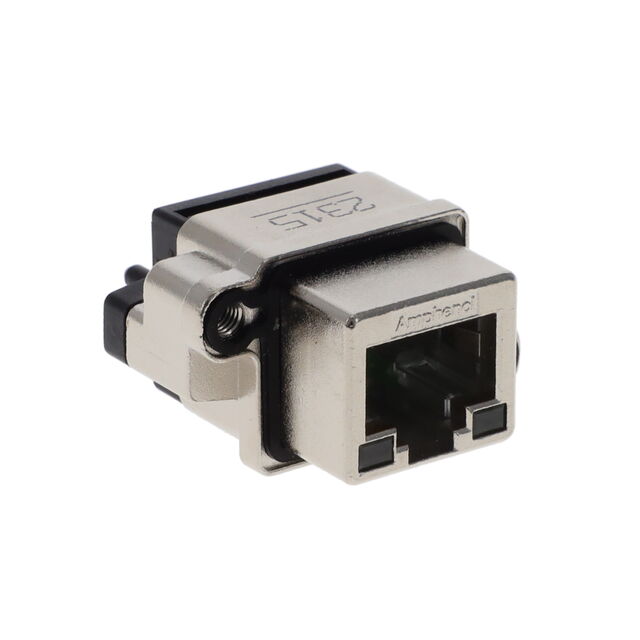

CONN MOD JACK 8P8C UNSHLD
| Part | Housing Material | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | LED Color | Ingress Protection | Contact Material | Features | Number of Ports | Mounting Type | Number of Rows | Tab Direction | Orientation | Termination | Number of Positions/Contacts | Shielding | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Polycarbonate (PC) | 50 µin | 1.27 µm | -40 C | 105 ░C | Jack | Green - Green | IP67 - Dust Tight Waterproof | Phosphor Bronze | Board Guide | 1 | Flange (2 Hole) Panel Mount Through Hole | 1 | User Selectable | Vertical | Solder | 8p8c (RJ45 Ethernet) | Unshielded | Gold |
 Amphenol ICC (Commercial Products) | Polycarbonate (PC) | 50 µin | 1.27 µm | -40 C | 105 ░C | Jack | Green - Yellow | IP67 - Dust Tight Waterproof | Phosphor Bronze | Board Guide | 1 | Flange (2 Hole) Panel Mount Through Hole | 1 | User Selectable | Vertical | Solder | 8p8c (RJ45 Ethernet) | Unshielded | Gold |
 Amphenol ICC (Commercial Products) | Polycarbonate (PC) | 50 µin | 1.27 µm | -40 C | 105 ░C | Jack | Yellow - Green | IP67 - Dust Tight Waterproof | Phosphor Bronze | Board Guide | 1 | Flange (2 Hole) Panel Mount Through Hole | 1 | User Selectable | Vertical | Solder | 8p8c (RJ45 Ethernet) | Unshielded | Gold |
 Amphenol ICC (Commercial Products) | Polycarbonate (PC) | 50 µin | 1.27 µm | -40 C | 105 ░C | Jack | Does Not Contain LED | IP67 - Dust Tight Waterproof | Phosphor Bronze | Board Guide | 1 | Flange (2 Hole) Panel Mount Through Hole | 1 | User Selectable | Vertical | Solder | 8p8c (RJ45 Ethernet) | Unshielded | Gold |
Amphenol ICC (Commercial Products) | Polycarbonate (PC) | 50 µin | 1.27 µm | -40 C | 105 ░C | Jack | Yellow - Green | IP67 - Dust Tight Waterproof | Phosphor Bronze | Board Guide | 1 | Flange (2 Hole) Panel Mount Through Hole | 1 | User Selectable | Vertical | Solder | 8p8c (RJ45 Ethernet) | Unshielded | Gold |
