DP1205 Series

Catalog

RF TXRX MOD ISM<1GHZSMD

Part	Antenna Type	Utilized IC / Part	Frequency	Sensitivity	Serial Interfaces	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	RF Family/Standard	Current - Transmitting [Max]	Current - Transmitting [Min]	Current - Receiving	Package / Case	Power - Output	Data Rate
Semtech Corporation DP1205C868LF	Antenna Not Included	XE1205	868 MHz	-118 dBm	SPI	85 °C	-40 C	3.6 V	2.4 V	Surface Mount	General ISM < 1GHz	62 mA	33 mA	14 mA	Module	15 dBm	152.3 kbps

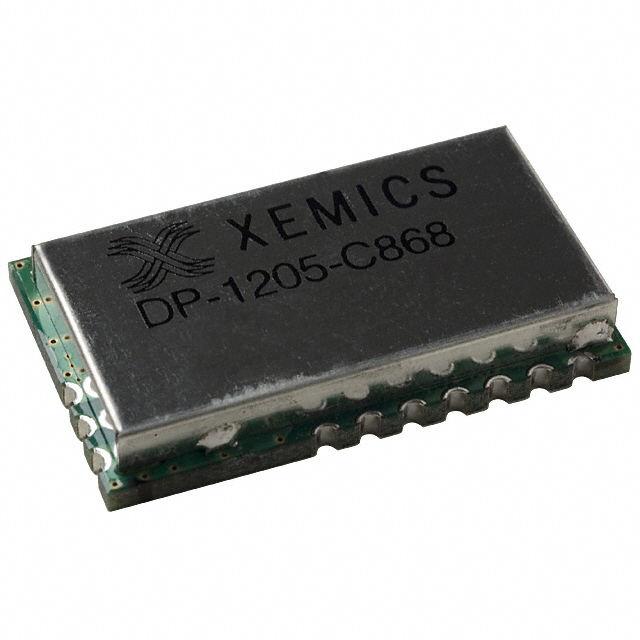

Semtech Corporation DP1205C868	Antenna Not Included	XE1205	868 MHz	-118 dBm	SPI	85 °C	-40 C	3.6 V	2.4 V	Surface Mount	General ISM < 1GHz	62 mA	33 mA	14 mA	Module	15 dBm	152.3 kbps
