044242 Series
Manufacturer: Molex
Beta
⌘K
CONN HEADER VERT 8POS 3MM
| Part | Fastening Type | Contact Length - Post | Contact Length - Post | Insulation Height | Insulation Height | Contact Type | Mounting Type | Row Spacing - Mating | Row Spacing - Mating | Material Flammability Rating | Insulation Material | Style | Insulation Color | Number of Positions | Termination | Shrouding | Number of Rows | Number of Positions Loaded | Contact Material | Contact Shape | Contact Finish - Mating | Applications | Connector Type | Pitch - Mating | Pitch - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

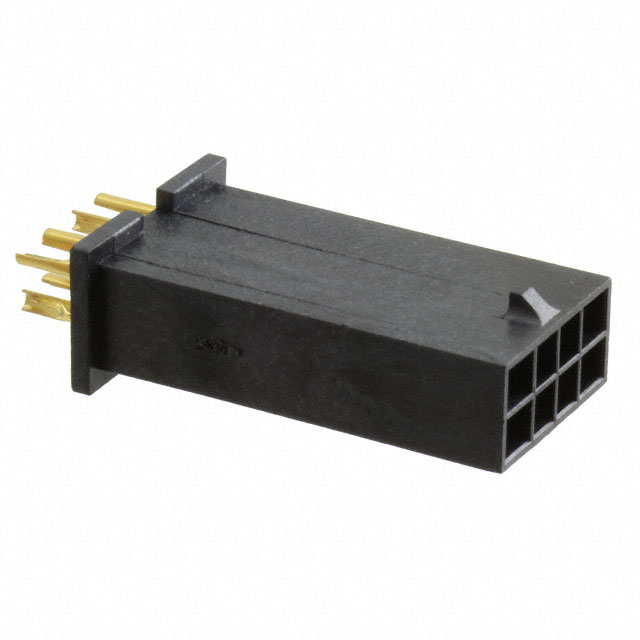

 Molex | Locking Ramp | 0.23 in | 5.84 mm | 27.94 mm | 1.1 in | Male Pin | Through Hole | 3 mm | 0.118 in | UL94 V-0 | Liquid Crystal Polymer (LCP) | Board to Cable/Wire | Black | 8 | Solder | Shrouded - 4 Wall | 2 | All | Beryllium Copper | Circular | Gold | General Purpose Medical Military Telecommunications | Plug | 0.118 in | 3 mm | |

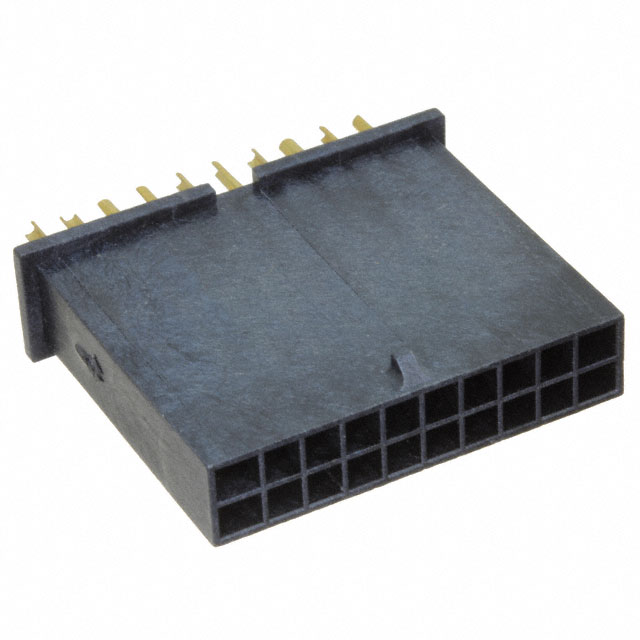

 Molex | Locking Ramp | 0.23 in | 5.84 mm | 27.94 mm | 1.1 in | Male Pin | Through Hole | 3 mm | 0.118 in | UL94 V-0 | Liquid Crystal Polymer (LCP) | Board to Cable/Wire | Black | 20 | Solder | Shrouded - 4 Wall | 2 | All | Beryllium Copper | Circular | Gold | General Purpose Medical Military Telecommunications | Plug | 0.118 in | 3 mm | |

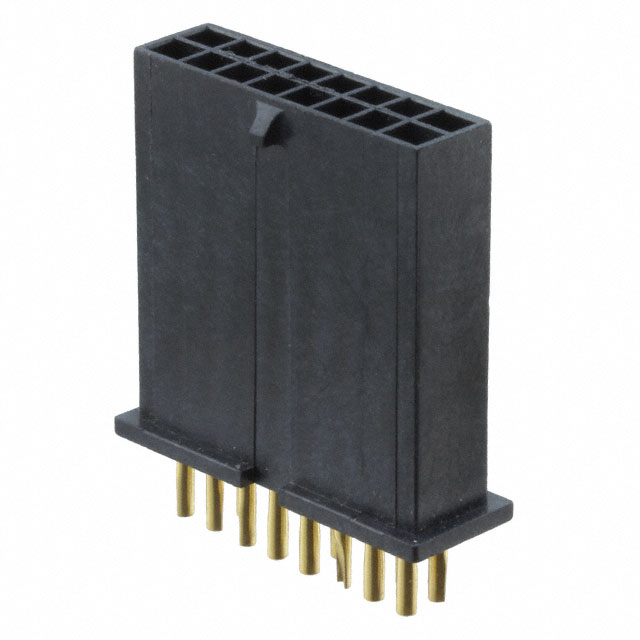

 Molex | Locking Ramp | 0.23 in | 5.84 mm | 27.94 mm | 1.1 in | Male Pin | Through Hole | 3 mm | 0.118 in | UL94 V-0 | Liquid Crystal Polymer (LCP) | Board to Cable/Wire | Black | Solder | Shrouded - 4 Wall | 2 | All | Beryllium Copper | Circular | Gold | General Purpose Medical Military Telecommunications | Plug | 0.118 in | 3 mm | 16 | |
Molex | Locking Ramp | 0.23 in | 5.84 mm | 27.94 mm | 1.1 in | Male Pin | Through Hole | 3 mm | 0.118 in | UL94 V-0 | Liquid Crystal Polymer (LCP) | Board to Cable/Wire | Black | 12 | Solder | Shrouded - 4 Wall | 2 | All | Beryllium Copper | Circular | Gold | General Purpose Medical Military Telecommunications | Plug | 0.118 in | 3 mm | |

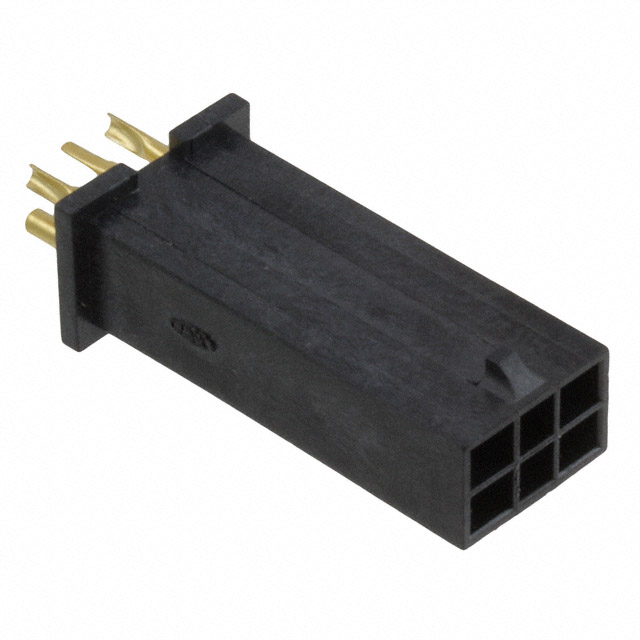

 Molex | Locking Ramp | 0.23 in | 5.84 mm | 27.94 mm | 1.1 in | Male Pin | Through Hole | 3 mm | 0.118 in | UL94 V-0 | Liquid Crystal Polymer (LCP) | Board to Cable/Wire | Black | 6 | Solder | Shrouded - 4 Wall | 2 | All | Beryllium Copper | Circular | Gold | General Purpose Medical Military Telecommunications | Plug | 0.118 in | 3 mm | |
Molex | Locking Ramp | 0.23 in | 5.84 mm | 27.94 mm | 1.1 in | Male Pin | Through Hole | 3 mm | 0.118 in | UL94 V-0 | Liquid Crystal Polymer (LCP) | Board to Cable/Wire | Black | 22 positions | Solder | Shrouded - 4 Wall | 2 | All | Beryllium Copper | Circular | Gold | General Purpose Medical Military Telecommunications | Plug | 0.118 in | 3 mm | |

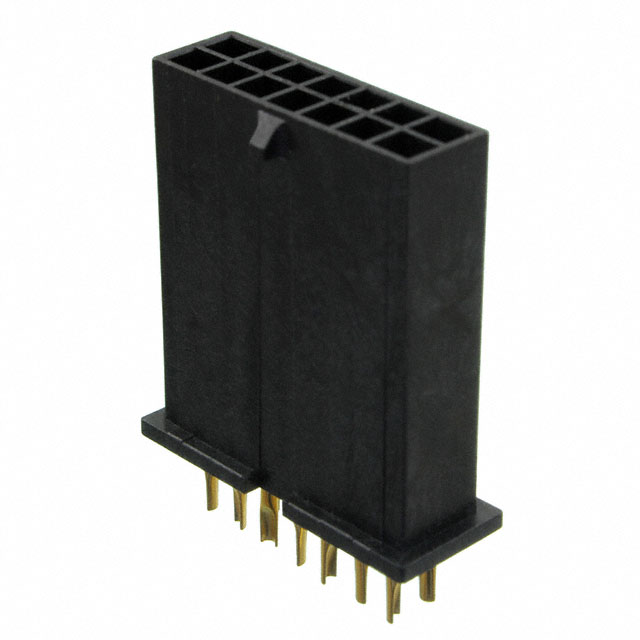

 Molex | Locking Ramp | 0.23 in | 5.84 mm | 27.94 mm | 1.1 in | Male Pin | Through Hole | 3 mm | 0.118 in | UL94 V-0 | Liquid Crystal Polymer (LCP) | Board to Cable/Wire | Black | 14 | Solder | Shrouded - 4 Wall | 2 | All | Beryllium Copper | Circular | Gold | General Purpose Medical Military Telecommunications | Plug | 0.118 in | 3 mm |
