9GA0824 Series

Catalog

DC FAN AXIAL BALL BEARING 24V 20.4V TO 27.6V 86.5CFM 57DB 80 X 80 X 32MM

Part	Material - Frame	Lifetime @ Temp.	Material - Blade	Current Rating (Amps)	Static Pressure	Static Pressure	Features	Voltage - Rated	Power (Watts)	Weight	Weight	Air Flow	Air Flow	RPM	Bearing Type	Fan Type	Approval Agency	Width [y]	Termination	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Noise	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Weight [custom]	Weight [custom]	Width [x]
Sanyo Denki America Inc. 9GA0824P2S001	Plastic	40000 Hrs	Plastic	0.42 A	361.2 Pa	1.45 in H2O	PWM Control Speed Sensor (Tach)	24 VDC	10.1 W	130.18 g	0.287 lb	86.5 CFM	2.42 m³/min	9700 RPM	Ball	Tubeaxial	CSA TUV UL	32 mm	4 Wire Leads	80 mm	80 mm	70 °C	-10 °C	57 dB

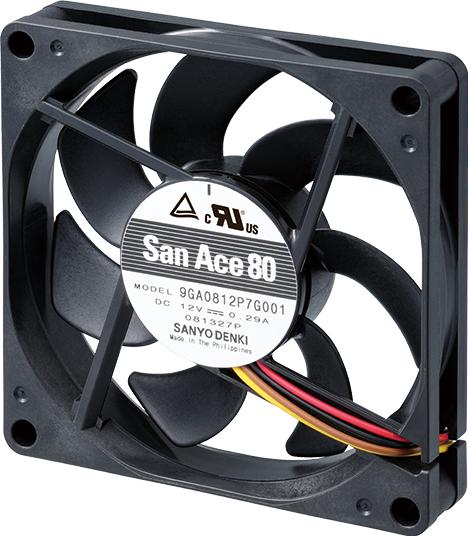

Sanyo Denki America Inc. 9GA0824H7D001	Plastic		Plastic	50 mA	32.4 Pa	0.13 in H2O	Locked Rotor Sensor	24 VDC	1.2 W			31.4 CFM	0.879 m³/min	3800 RPM	Ball	Tubeaxial	CSA TUV UL	15 mm	3 Wire Leads	80 mm	80 mm	70 °C	-20 ░C	29 dB(A)	Varies Based on Temperature	26.4 VDC	12 VDC
Sanyo Denki America Inc. 9GA0824P7G001	Plastic	40000 Hrs	Plastic		0.337 in H2O 83.9 Pa		PWM Control Speed Sensor (Tach)	24 VDC	3.12 W			50.9 CFM	1.43 mł/min	6100 RPM	Ball	Tubeaxial	CSA TUV UL	15 mm	4 Wire Leads	80 mm	80 mm	70 °C	-20 ░C	41 dB				64.86 g	0.143 lb
Sanyo Denki America Inc. 9GA0824P6M001	Plastic		Plastic	30 mA	27.4 Pa	0.11 in H2O	Locked Rotor Protection PWM Control Speed Sensor (Tach)	24 VDC	720 mW			29.6 CFM	0.829 m³/min	2900 RPM	Ball	Tubeaxial	CSA TUV UL	20 mm	4 Wire Leads	80 mm	80 mm	70 °C	-20 ░C	26.5 dB				80.29 g	0.177 lb
Sanyo Denki America Inc. 9GA0824S162	Plastic		Plastic	0.47 A	480.8 Pa	1.93 in H2O		24 VDC	11.28 W	160.12 g	0.353 lb	91.8 CFM	2.57 m³/min	9550 RPM	Ball	Tubeaxial	CSA TUV UL	38 mm	2 Wire Leads	80 mm	80 mm	70 °C	-20 ░C	59 dB(A)	Varies Based on Temperature
Sanyo Denki America Inc. 9GA0824J4001	Plastic		Plastic	0.28 A	174.4 Pa	0.7 in H2O	Locked Rotor Protection Speed Sensor (Tach)	24 VDC	6.72 W	110.22 g	0.243 lb	73 CFM	2.04 m³/min	7400 RPM	Ball	Tubeaxial	CSA TUV UL		3 Wire Leads	80 mm	80 mm	70 °C	-20 ░C	48 dB	Varies Based on Temperature	26.4 VDC	21.6 VDC			25.2 mm
Sanyo Denki America Inc. 9GA0824J4002	Plastic		Plastic	0.28 A	174.4 Pa	0.7 in H2O		24 VDC	6.72 W	110.22 g	0.243 lb	73 CFM	2.04 m³/min	7400 RPM	Ball	Tubeaxial	CSA TUV UL		2 Wire Leads	80 mm	80 mm	70 °C	-20 ░C	48 dB	Varies Based on Temperature	26.4 VDC	21.6 VDC			25.2 mm
Sanyo Denki America Inc. 9GA0824H4002	Plastic		Plastic	100 mA	87.2 Pa	0.35 in H2O		24 VDC	2.4 W	110.22 g	0.243 lb	51.5 CFM	1.44 m³/min	5200 RPM	Ball	Tubeaxial	CSA TUV UL		2 Wire Leads	80 mm	80 mm	70 °C	-20 ░C	37 dB	Varies Based on Temperature	26.4 VDC	21.6 VDC			25.2 mm
Sanyo Denki America Inc. 9GA0824B2002	Plastic		Plastic					24 VDC	1.92 W						Ball	Tubeaxial		32 mm	2 Wire Leads	80 mm	80 mm

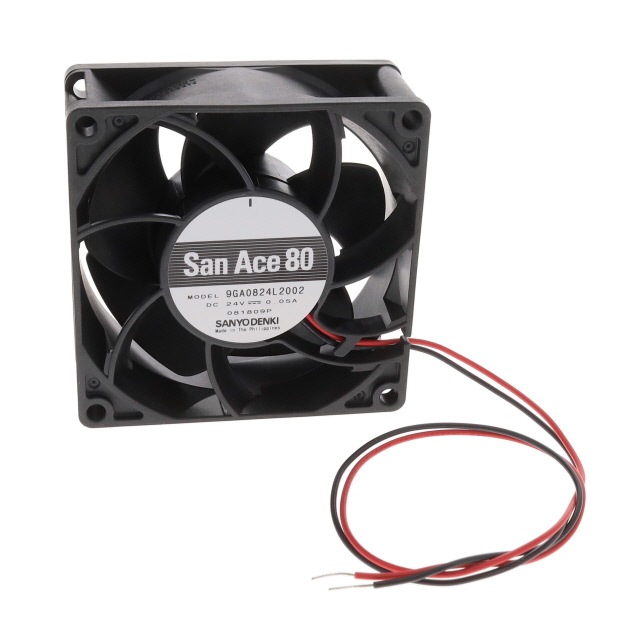

Sanyo Denki America Inc. 9GA0824L2002	Plastic		Plastic					24 VDC	1.2 W						Ball	Tubeaxial		32 mm	2 Wire Leads	80 mm	80 mm
