ADS4246 Series

Catalog

DUAL-CHANNEL, 14-BIT, 160-MSPS ANALOG-TO-DIGITAL CONVERTER (ADC)

Part	Number of Bits	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Number of Inputs	Input Type	Data Interface	Supplier Device Package	Mounting Type	Package / Case	Sampling Rate (Per Second)	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Ratio - S/H:ADC	Number of A/D Converters	Architecture	Configuration	Reference Type	Utilized IC / Part	Supplied Contents	Input Range
Texas Instruments ADS4246IRGCT	14	1.9 V	1.7 V	85 °C	-40 °C	Simultaneous Sampling	2	Differential	LVDS - Parallel Parallel	64-VQFN (9x9)	Surface Mount	64-VFQFN Exposed Pad	160M	1.7 V	1.9 V	1:1	2	Pipelined	S/H-ADC	Internal

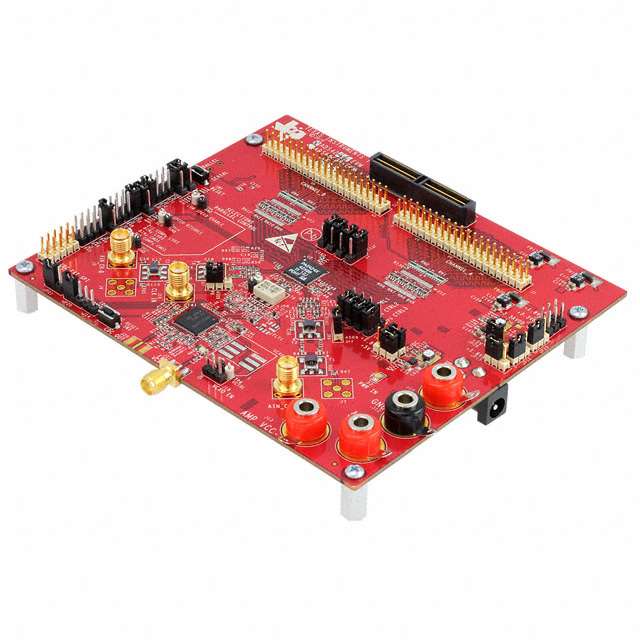

Texas Instruments ADS4246EVM	14								CMOS LVDS Parallel Serial				160M				2				ADS4246	Board(s)	2 Vpp
Texas Instruments ADS4246IRGCR	14	1.9 V	1.7 V	85 °C	-40 °C	Simultaneous Sampling	2	Differential	LVDS - Parallel Parallel	64-VQFN (9x9)	Surface Mount	64-VFQFN Exposed Pad	160M	1.7 V	1.9 V	1:1	2	Pipelined	S/H-ADC	Internal
Texas Instruments ADS4246IRGC25	14	1.9 V	1.7 V	85 °C	-40 °C	Simultaneous Sampling	2	Differential	LVDS - Parallel Parallel	64-VQFN (9x9)	Surface Mount	64-VFQFN Exposed Pad	160M	1.7 V	1.9 V	1:1	2	Pipelined	S/H-ADC	Internal
