TPS92610 Series

Automotive Single-channel LED driver with 450mA output, open, short and single LED short detection.

Catalog

Automotive Single-channel LED driver with 450mA output, open, short and single LED short detection.

Part	Supplied Contents	Outputs and Type	Outputs and Type	Voltage - Input [Min]	Voltage - Input [Max]	Utilized IC / Part	Current - Output / Channel	Contents	Type	Grade	Package / Case	Voltage - Supply (Min) [Min]	Internal Switch(s)	Voltage - Supply (Max) [Max]	Qualification	Dimming	Mounting Type	Number of Outputs	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Voltage - Output [Max]	Voltage - Output [Min]

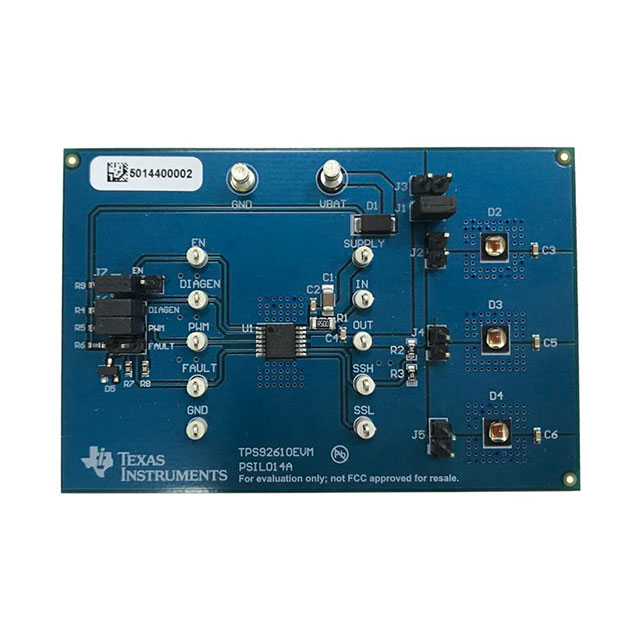

Texas Instruments TPS92610EVM	Board(s)	1	1 Non-Isolated Output Non-Isolated	9 V	16 V	TPS92610-Q1	200 mA	Board(s)
Texas Instruments TPS92610QPWPRQ1									Linear	Automotive	14-PowerTSSOP (0.173" 4.40mm Width)	4.5 V		40 V	AEC-Q100	PWM	Surface Mount	1	Lighting	125 °C	-40 °C	14-HTSSOP	40 V	0 VDC

Catalog

Automotive Single-channel LED driver with 450mA output, open, short and single LED short detection.

Description

With LEDs being widely used in automotive applications, simple LED drivers are more and more popular. Compared to discrete solutions, a low-cost monolithic solution lowers system level component counts and significantly improves current accuracy and reliability. The TPS92610-Q1 device is a simple single-channel high-side LED driver operating from an automotive car battery. It is a simple and elegant solution to deliver constant current for a single LED string with full LED diagnostics. Its one-fails–all-fail feature is able to work together with other LED drivers, such as the TPS9261x-Q1, TPS9263x-Q1, and TPS9283x-Q1 devices, to address different requirements. With LEDs being widely used in automotive applications, simple LED drivers are more and more popular. Compared to discrete solutions, a low-cost monolithic solution lowers system level component counts and significantly improves current accuracy and reliability. The TPS92610-Q1 device is a simple single-channel high-side LED driver operating from an automotive car battery. It is a simple and elegant solution to deliver constant current for a single LED string with full LED diagnostics. Its one-fails–all-fail feature is able to work together with other LED drivers, such as the TPS9261x-Q1, TPS9263x-Q1, and TPS9283x-Q1 devices, to address different requirements.
