PSK-S25 Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 15V 24W

Part	Approval Agency	Current - Output (Max) [Max]	Number of Outputs	Line Regulation	Applications	Standard Number	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Output 1	Efficiency	Power (Watts)	Type	Features	Load Regulation	Package / Case	Voltage - Isolation	Current - Output 1	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Input Type	DC Voltage - Input (Min) [Min]	DC Voltage - Input (Max) [Max]
CUI Inc. PSK-S25D-15	CB Scheme IEC UL	1.6 A	1	0.5 %	ITE (Commercial)	62368-1	Through Hole	-40 °C	85 °C	85 VAC 100 V	264 VAC 370 VDC	23.5 mm	1.89 in	0.93 "	48 mm	2.76 "	70 mm	15 V	84 %	24 W	Enclosed	Adjustable Output Universal Input	±1%	9-DIP Module 6 Leads

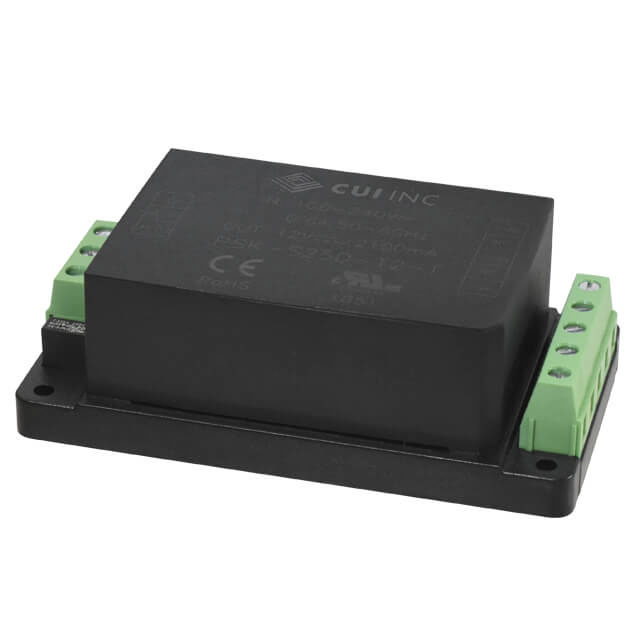

CUI Inc. PSK-S25D-15-T	CB Scheme IEC UL		1		ITE (Commercial)	62368-1	Chassis Mount	-40 °C	85 °C	85 VAC 100 V	264 VAC 370 VDC	32 mm	2.13 in	1.26 "	54 mm	3.78 in	96.1 mm	15 V	84 %	24 W	Enclosed	Adjustable Output Universal Input			4000 V	1.6 A

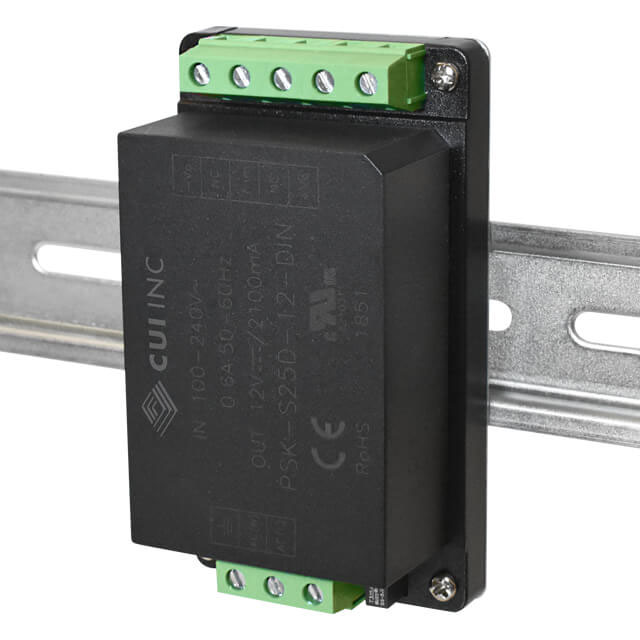

CUI Inc. PSK-S25D-12-DIN	CB Scheme IEC UL	2.1 A	1		ITE (Commercial)	62368-1		-40 °C	85 °C			96.1 mm	1.44 "	3.78 in	36.6 mm	2.13 in	54 mm	12 V	83 %	25 W		Adjustable Output Universal Input			4000 V		264 VAC	85 VAC	AC or DC	100 V	370 V
CUI Inc. PSK-S25D-9-T	CB Scheme IEC UL		1		ITE (Commercial)	62368-1	Chassis Mount	-40 °C	85 °C	85 VAC 100 V	264 VAC 370 VDC	32 mm	2.13 in	1.26 "	54 mm	3.78 in	96.1 mm	9 V	81 %	23 Watts	Enclosed	Adjustable Output Universal Input			4000 V	2.5 A
CUI Inc. PSK-S25D-48	CB Scheme IEC UL	500 mA	1	0.5 %	ITE (Commercial)	62368-1	Through Hole	-40 °C	85 °C	85 VAC 100 V	264 VAC 370 VDC	23.5 mm	1.89 in	0.93 "	48 mm	2.76 "	70 mm	48 V	87 %	24 W	Enclosed	Adjustable Output Universal Input	±1%	9-DIP Module 6 Leads
CUI Inc. PSK-S25B-24	CB Scheme EN IEC SIQ TUV UL	1.05 A	1	1 %	Household Appliances ITE (Commercial)	55024 55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61204-3 62368-1	Through Hole	-30 °C	70 °C	90 VAC 120 VDC	264 VAC 370 VDC	24.8 mm	1.19 in	0.98 in	30.3 mm	2.09 in	53.1 mm	24 V	86 %	25 W	Enclosed	Universal Input	±1%	4-DIP Module
CUI Inc. PSK-S25D-9-DIN	CB Scheme IEC UL	2.5 A	1		ITE (Commercial)	62368-1		-40 °C	85 °C			96.1 mm	1.44 "	3.78 in	36.6 mm	2.13 in	54 mm	9 V	81 %	23 Watts		Adjustable Output Universal Input			4000 V		264 VAC	85 VAC	AC or DC	100 V	370 V
CUI Inc. PSK-S25D-15-DIN	CB Scheme IEC UL	1.6 A	1		ITE (Commercial)	62368-1		-40 °C	85 °C			96.1 mm	1.44 "	3.78 in	36.6 mm	2.13 in	54 mm	15 V	84 %	24 W		Adjustable Output Universal Input			4000 V		264 VAC	85 VAC	AC or DC	100 V	370 V
CUI Inc. PSK-S25B-5	CB Scheme EN IEC SIQ TUV UL	4 A	1	1 %	Household Appliances ITE (Commercial)	55024 55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61204-3 62368-1	Through Hole	-30 °C	70 °C	90 VAC 120 VDC	264 VAC 370 VDC	24.8 mm	1.19 in	0.98 in	30.3 mm	2.09 in	53.1 mm	5 V	81 %	20 W	Enclosed	Universal Input	±1%	4-DIP Module
CUI Inc. PSK-S25D-48-DIN	CB Scheme IEC UL	500 mA	1		ITE (Commercial)	62368-1		-40 °C	85 °C			96.1 mm	1.44 "	3.78 in	36.6 mm	2.13 in	54 mm	48 V	87 %	24 W		Adjustable Output Universal Input			4000 V		264 VAC	85 VAC	AC or DC	100 V	370 V
