WP59 Series

Catalog

LED GRN/RED DIFFUSED T-1 3/4 T/H

Part	Lens Transparency	Lens Style	Wavelength - Dominant	Mounting Type	Voltage - Forward (Vf) (Typ)	Configuration	Size / Dimension [diameter]	Viewing Angle	Supplier Device Package	Lens Size	Lens Size	Package / Case	Height (Max) [z]	Millicandela Rating	Wavelength - Peak	Color	Lens Color	Current - Test [custom]	Current - Test [custom]	Wavelength - Peak	Current - Test	Wavelength - Dominant	Voltage Rating	Lens Type	Current	Current	Millicandela Rating [custom]	Millicandela Rating [custom]

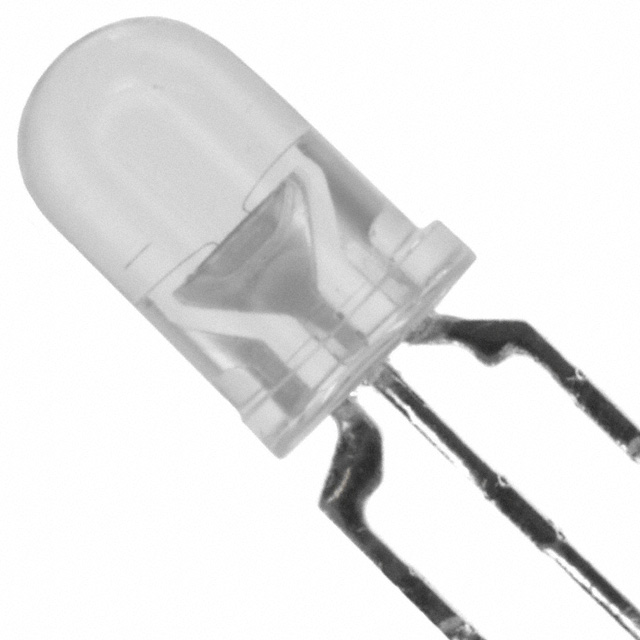

Kingbright WP59EGW	Diffused	Round with Domed Top	568 nm 617 nm	Through Hole	2 V 2.2 V	Common Cathode	5 mm	60 °	T-1 3/4	5 mm	T-1 3/4	Radial - 3 Leads	11.35 mm	40 mcd 60 mcd	565 nm 627 nm	Green Red	White	20 mA	20 mA
Kingbright WP59GYW	Diffused	Round with Domed Top		Through Hole	2.1 V 2.2 V	Common Cathode	5 mm	60 °	T-1 3/4	5 mm	T-1 3/4	Radial - 3 Leads	11.35 mm	40 mcd 50 mcd		Green Yellow	White			565nm Green 590nm Yellow	20 mA 20 mA	568nm Green 588nm Yellow

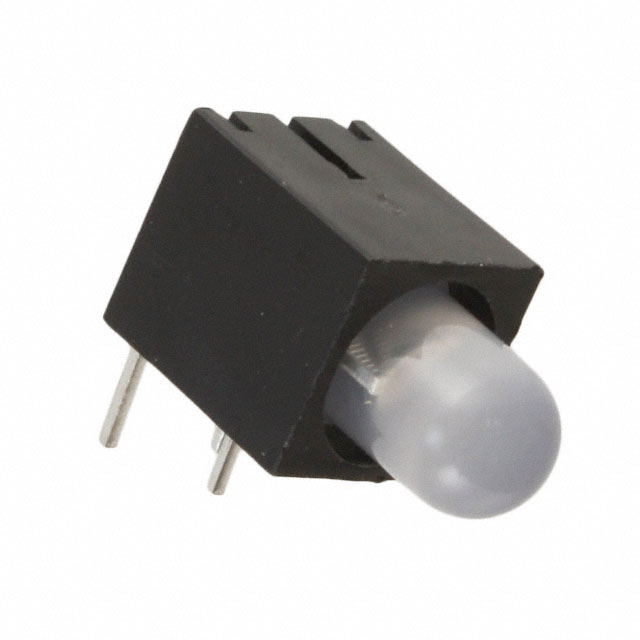

Kingbright WP59BL/EYW		Round with Domed Top		Right Angle Through Hole		Single		60 °		5 mm	T-1 3/4			40 mcd 40 mcd	590 nm 627 nm	Red Yellow							2 V 2.1 V	Diffused White	30mA Red 30mA Yellow

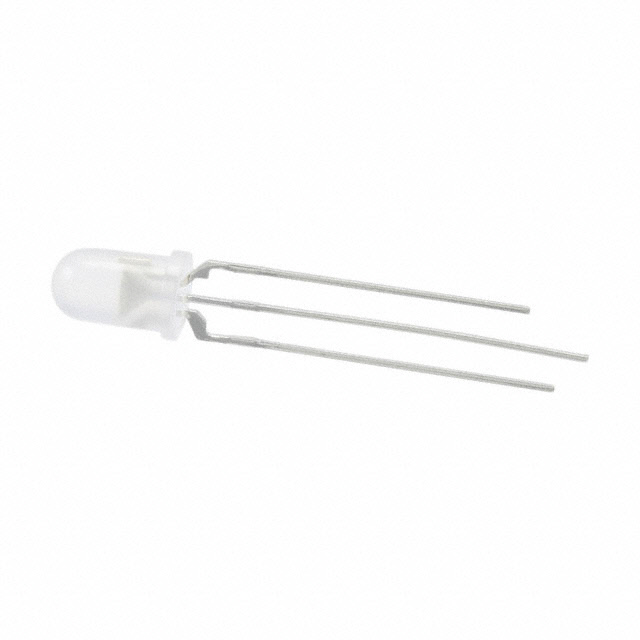

Kingbright WP59SURKCGKW	Diffused	Round with Domed Top		Through Hole	1.95 V 2.1 V	Common Cathode	5 mm	30 °	T-1 3/4	5 mm	T-1 3/4	Radial - 3 Leads	11.35 mm	180 mcd 200 mcd	574 nm 645 nm	Green Red	White	20 mA	20 mA			570nm Green 630nm Red

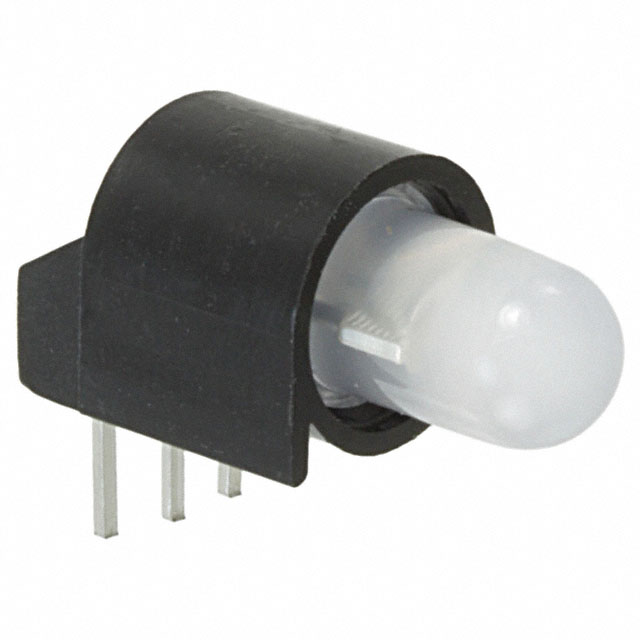

Kingbright WP59CB/EGW		Round with Domed Top		Right Angle Through Hole		Single		60 °		5 mm	T-1 3/4			40 mcd 60 mcd	565 nm 627 nm	Green Red							2 V 2.2 V	Diffused White		25 mA 30 mA
Kingbright WP59CB/GYW		Round with Domed Top		Through Hole		Single		60 °		5 mm	T-1 3/4			40 mcd 100 mcd	565 nm 590 nm	Green Yellow							2.1 V 2.2 V	Diffused White	25mA Green 30mA Yellow

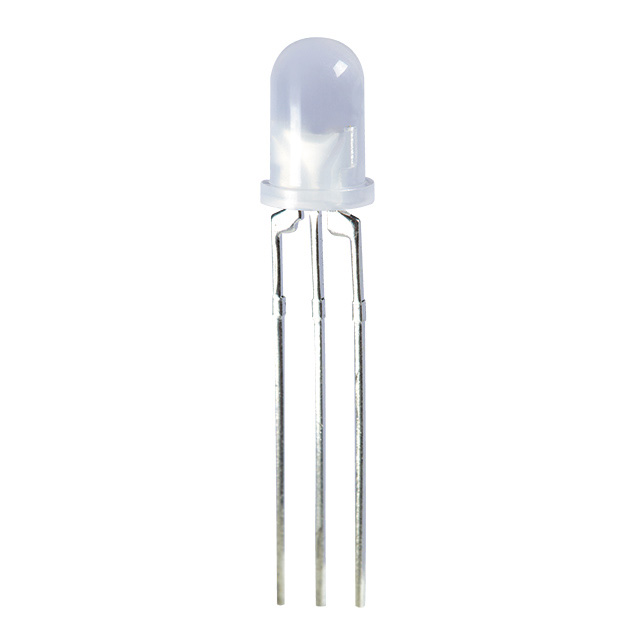

Kingbright WP59EGW/CA	Diffused	Round with Domed Top		Through Hole	2 V 2.2 V	Common Anode	5 mm	60 °	T-1 3/4	5 mm	T-1 3/4	Radial - 3 Leads	11.35 mm		565 nm 627 nm	Green Red	White	20 mA	20 mA			568nm Green 625nm Red					8 mcd	6 mcd
Kingbright WP59EGC	Clear	Round with Domed Top	568 nm 617 nm	Through Hole	2 V 2.2 V	Common Cathode	5 mm	24 °	T-1 3/4	5 mm	T-1 3/4	Radial - 3 Leads	11.35 mm		565 nm 627 nm	Green Red	Colorless	20 mA	20 mA								120 mcd	100 mcd
Kingbright WP59BL/EGW		Round with Domed Top		Right Angle Through Hole		Single		30 °		5 mm	T-1 3/4			40 mcd 60 mcd	565 nm 627 nm	Green Red							2 V 2.2 V	Diffused White		20 mA 20 mA

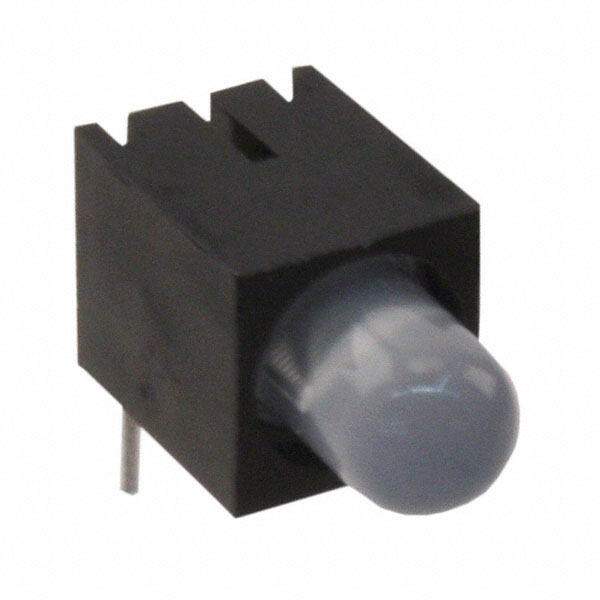

Kingbright WP59BL/GYW		Round with Domed Top		Right Angle Through Hole		Single		30 °		5 mm	T-1 3/4			40 mcd 100 mcd	565 nm 590 nm	Green Yellow							2.1 V 2.2 V	Diffused White	25mA Green 30mA Yellow
