6139B8 Series
Manufacturer: Belden Inc.
Beta
⌘K

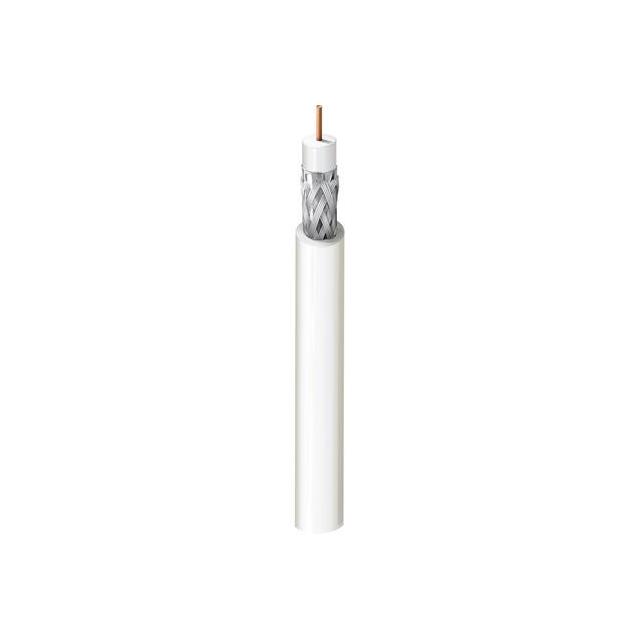

RG-11/U PLENUM COAX
| Part | Dielectric Material | VoP, Velocity of Propagation | Conductor Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Material | Shield Coverage [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Shield Type | Cable Type | Wire Gauge | Conductor Strand | Impedance | Length [x] | Length [x] | Cable Group | Jacket Color | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Foam Fluorinated Ethylene Propylene (FFEP) | 84 | Copper Bare | 6.96 mm | 0.274 in | Aluminum | 60 % 100 % | 150 °C | -20 ░C | Braid Foil | Coaxial - Plenum | 14.5 AWG | Solid | 75 Ohms | 304.8 m | 1000 ft | RG-11 | White | Polyvinylidene Fluoride (PVDF) | 8.84 mm | 0.348 in |
