CFS-0502 Series

Catalog

SWITCH SLIDE DIP SPST 0.1A 6V

Part	Body Material	Length	Length	Electrical Life	Contact Finish	Contact Material	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Number of Positions	Actuator Type	Pitch	Pitch	Termination Style	Circuit	Actuator Level	Voltage Rating	Height Above Board [z]	Height Above Board [z]	Height Above Board	Height Above Board
Nidec Components Corporation CFS-0502TA	Polyphenylene Sulfide (PPS)	14.15 mm	0.557 in	1000 Cycles	Gold	Copper Alloy	Surface Mount	85 °C	-40 C	100 mA	5	Slide (Standard)	2.54 mm	0.1 "	J Lead	SPST	Raised	6 V	0.177 in	4.5 mm
Nidec Components Corporation CFS-0502TB	Polyphenylene Sulfide (PPS)	14.15 mm	0.557 in	1000 Cycles	Gold	Copper Alloy	Surface Mount	85 °C	-40 C	100 mA	5	Slide (Standard)	2.54 mm	0.1 "	Gull Wing	SPST	Raised	6 V			0.169 in	4.3 mm
Nidec Components Corporation CFS-0502MA	Polyphenylene Sulfide (PPS)	14.15 mm	0.557 in	1000 Cycles	Gold	Copper Alloy	Surface Mount	85 °C	-40 C	100 mA	5	Slide (Standard)	2.54 mm	0.1 "	J Lead	SPST	Raised	6 V	0.178 in	4.52 mm

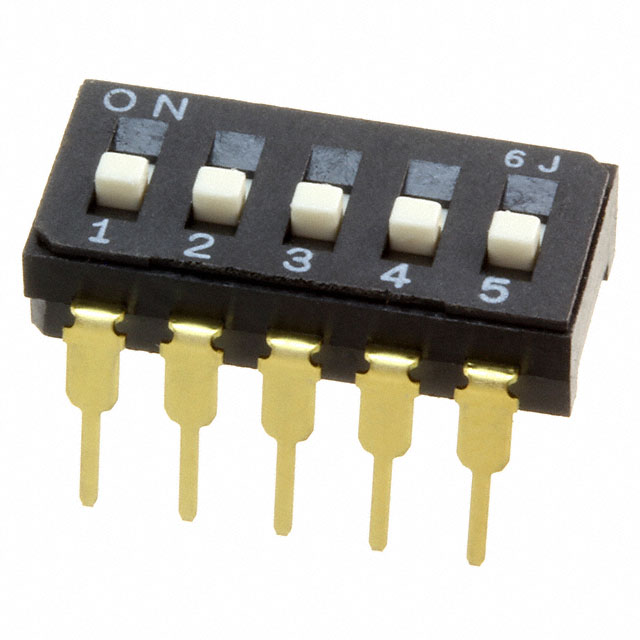

Nidec Components Corporation CFS-0502MC	Polyphenylene Sulfide (PPS)	14.15 mm	0.557 in	1000 Cycles	Gold	Copper Alloy	Through Hole	85 °C	-40 C	100 mA	5	Slide (Standard)	2.54 mm	0.1 "	PC Pin	SPST	Raised	6 V	0.201 in	5.1 mm
