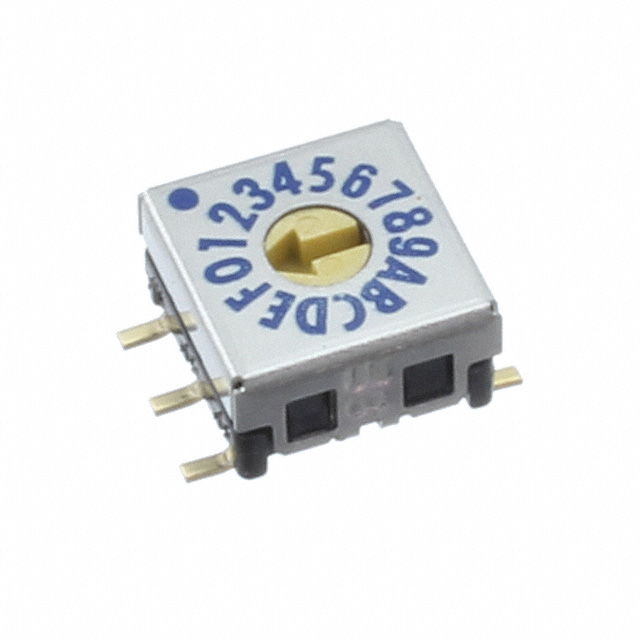

SMR7016C Series

Catalog

SWITCH ROTARY DIP HEX 0.03A 15V

Part	Mechanical Life	Electrical Life	Length	Length	Voltage Rating	Circuit	Current Rating (Amps)	Pitch	Pitch	Termination Style	Actuator Level	Height Above Board [z]	Height Above Board [z]	Contact Finish	Number of Positions	Actuator Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Washable

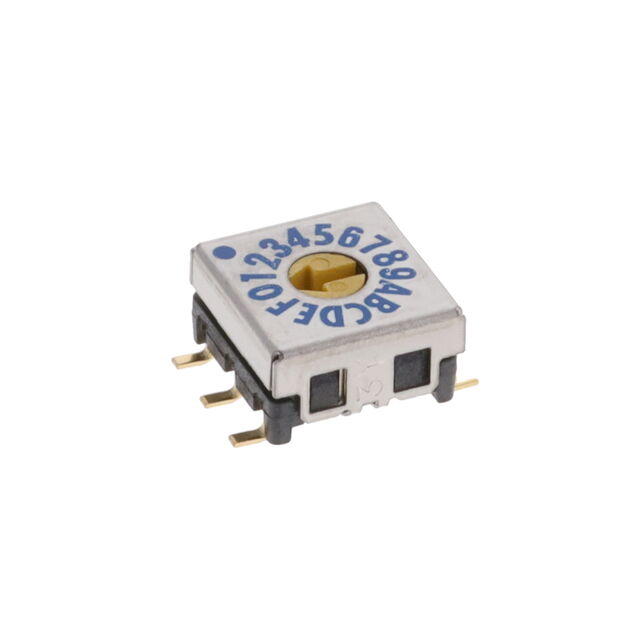

Nidec Components Corporation SMR7016C-1E	10000 Steps	10000 Cycles	0.295 in	7.5 mm	15 VDC	Hexadecimal	30 mA	2.54 mm	0.1 "	Gull Wing	Flush Recessed	0.173 in	4.4 mm	Gold	16	Rotary for Tool	Surface Mount	85 °C	-25 °C
Nidec Components Corporation SMR7016C-1	10000 Steps	10000 Cycles	0.295 in	7.5 mm	15 VDC	Hexadecimal	30 mA	2.54 mm	0.1 "	Gull Wing	Flush Recessed	0.173 in	4.4 mm	Gold	16	Rotary for Tool	Surface Mount	85 °C	-25 °C
