BD62120AEFJ Series

36V 1ch DC Brush Motor Drivers

Catalog

36V 1ch DC Brush Motor Drivers

Part	Current - Output	Output Configuration	Supplier Device Package	Applications	Mounting Type	Package / Case	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Motor Type - AC, DC	Function	Interface	Technology	Secondary Attributes	Supplied Contents	Type	Utilized IC / Part	Embedded	Primary Attributes	Contents
Rohm Semiconductor BD62120AEFJ-E2	2 A	Half Bridge (2)	8-HTSOP-J	Printer	Surface Mount	0.154 in	8-SOIC	3.9 mm	85 C	-25 °C	28 V	8 V	Brushed DC	Driver	On/Off	DMOS

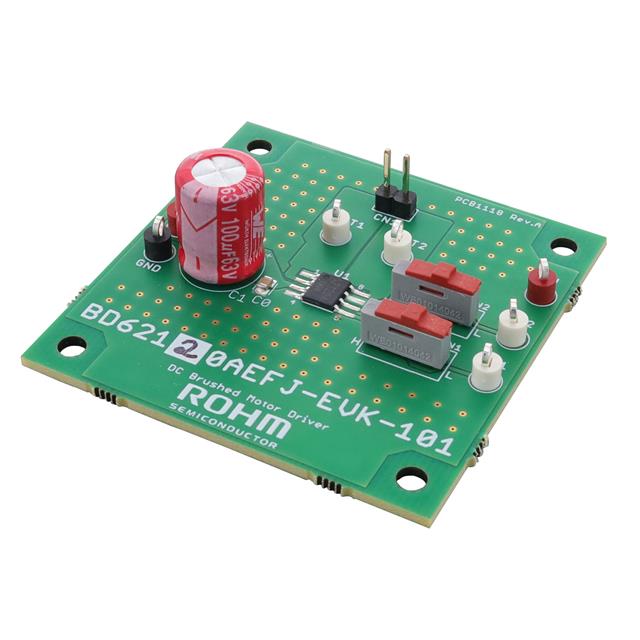

Rohm Semiconductor BD62120AEFJ-EVK-101														Motor Controller/Driver			On-Board Test Points	Board(s)	Power Management	BD62120A		1 H-Bridge Driver	Board(s)

Catalog

36V 1ch DC Brush Motor Drivers

Key Features

• Single Power Supply Input (rated voltage of 36V), Rated Output Current (peak) 2.0A(3.0A), Low ON-Resistance DMOS Output, Forward, Reverse, Brake, Open, External PWM Control, Driver for DC Brush Motor, Built-in logic input pull-down resistor, Cross-conduction Prevention Circuit, Thermal Shutdown Circuit (TSD), Over-current Protection Circuit (OCP), Under Voltage Lock out Circuit (UVLO), Over Voltage Lock out Circuit (OVLO), Ghost Supply Prevention (protects against malfunction when power supply is disconnected), Adjacent Pins Short Protection, Inverted Mounting Protection, HTSOP-J8 package

Description

BD62120AEFJ is a built-in 1 channel H-bridge motor driver for DC brush motors. This driver can facilitate low power consumption by direct PWM. There are built in protection circuits in this IC. Each protection circuit operation contributes to set high reliability.We recommendBD62120JEFJfor your new development. It uses different production lines for the purpose of improving production efficiency. Electric characteristics noted in Datasheet does not differ between Production Line.
