58102 Series

Catalog

CONN HEADER R/A 10POS 2MM

Part	Number of Positions	Termination	Mounting Type	Insulation Material	Material Flammability Rating	Connector Type	Number of Positions Loaded	Number of Rows	Contact Length - Mating	Contact Length - Mating	Style	Contact Length - Post	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Current Rating (Amps)	Contact Material	Fastening Type	Voltage Rating	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Type	Insulation Color	Shrouding	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Number of Positions Loaded
Amphenol ICC (FCI) 58102-S61-05LF	10	Solder	Through Hole Right Angle	Thermoplastic	UL94 V-0	Header	All	2	4 mm	0.157 in	Board to Board Cable	2.5 mm	0.098 in	0.079 in	2 mm	Square	2 A	Copper Alloy	Push-Pull	200 V	0.079 in	2 mm	15 µin	0.38 µm	Gold GXT™	Male Pin	Black	Unshrouded	0.165 in	4.2 mm
Amphenol ICC (FCI) 58102-S61-02LF	4	Solder	Through Hole Right Angle	Thermoplastic	UL94 V-0	Header	All	2	4 mm	0.157 in	Board to Board Cable	2.5 mm	0.098 in	0.079 in	2 mm	Square	2 A	Copper Alloy	Push-Pull	200 V	0.079 in	2 mm	15 µin	0.38 µm	Gold GXT™	Male Pin	Black	Unshrouded	0.165 in	4.2 mm
Amphenol ICC (FCI) 58102-F61-07LF	14	Solder	Through Hole Right Angle	Thermoplastic	UL94 V-0	Header	All	2	4 mm	0.157 in	Board to Board Cable	2.5 mm	0.098 in	0.079 in	2 mm	Square	2 A	Copper Alloy	Push-Pull	200 V	0.079 in	2 mm	8 Áin	0.203 Ám	Gold GXT™	Male Pin	Black	Unshrouded	0.165 in	4.2 mm
Amphenol ICC (FCI) 58102-S61-07	14	Solder	Through Hole Right Angle	Thermoplastic	UL94 V-0	Header	All	2	4 mm	0.157 in	Board to Board Cable	2.5 mm	0.098 in	0.079 in	2 mm	Square	2 A	Copper Alloy	Push-Pull	200 V	0.079 in	2 mm	15 µin	0.38 µm	Gold GXT™	Male Pin	Black	Unshrouded	0.165 in	4.2 mm	150 Áin	3.81 Ám	Tin-Lead
Amphenol ICC (FCI) 58102-S61-13-26R	26	Kinked Pin Solder	Through Hole Right Angle	Thermoplastic	UL94 V-0	Header		2	4 mm	0.157 in	Board to Board Cable	2.5 mm	0.098 in	0.079 in	2 mm	Square	2 A	Copper Alloy	Push-Pull	200 V	0.079 in	2 mm	15 µin	0.38 µm	Gold GXT™	Male Pin	Black	Unshrouded	0.165 in	4.2 mm	150 Áin	3.81 Ám	Tin-Lead	25

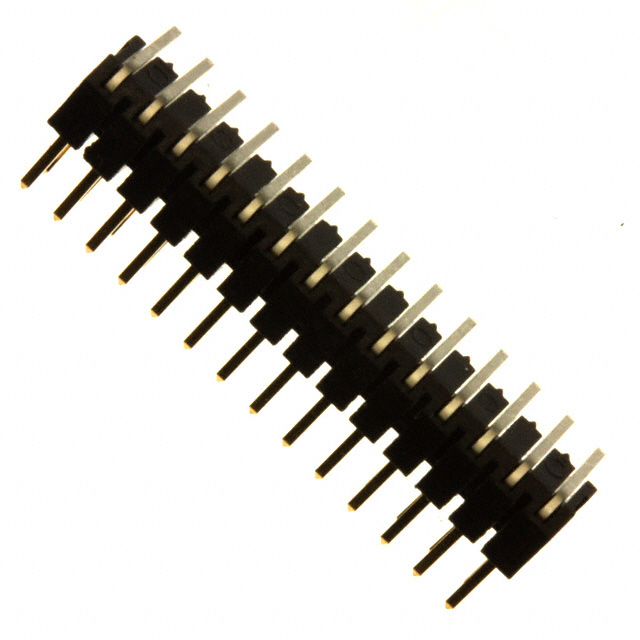

Amphenol ICC (FCI) 58102-G61-14LF	28	Solder	Through Hole Right Angle	Thermoplastic	UL94 V-0	Header	All	2	4 mm	0.157 in	Board to Board Cable	2.5 mm	0.098 in	0.079 in	2 mm	Square	2 A	Copper Alloy	Push-Pull	200 V	0.079 in	2 mm	30 Áin	0.76 Ám	Gold GXT™	Male Pin	Black	Unshrouded	0.165 in	4.2 mm
Amphenol ICC (FCI) 58102-F61-17	34	Solder	Through Hole Right Angle	Thermoplastic	UL94 V-0	Header	All	2	4 mm	0.157 in	Board to Board Cable	2.5 mm	0.098 in	0.079 in	2 mm	Square	2 A	Copper Alloy	Push-Pull	200 V	0.079 in	2 mm	8 Áin	0.203 Ám	Gold GXT™	Male Pin	Black	Unshrouded	0.165 in	4.2 mm	150 Áin	3.81 Ám	Tin-Lead
Amphenol ICC (FCI) 58102-S61-16		Solder	Through Hole Right Angle	Thermoplastic	UL94 V-0	Header	All	2	4 mm	0.157 in	Board to Board Cable	2.5 mm	0.098 in	0.079 in	2 mm	Square	2 A	Copper Alloy	Push-Pull	200 V	0.079 in	2 mm	15 µin	0.38 µm	Gold GXT™	Male Pin	Black	Unshrouded	0.165 in	4.2 mm	150 Áin	3.81 Ám	Tin-Lead
Amphenol ICC (FCI) 58102-S61-18LF	36	Solder	Through Hole Right Angle	Thermoplastic	UL94 V-0	Header	All	2	4 mm	0.157 in	Board to Board Cable	2.5 mm	0.098 in	0.079 in	2 mm	Square	2 A	Copper Alloy	Push-Pull	200 V	0.079 in	2 mm	15 µin	0.38 µm	Gold GXT™	Male Pin	Black	Unshrouded	0.165 in	4.2 mm

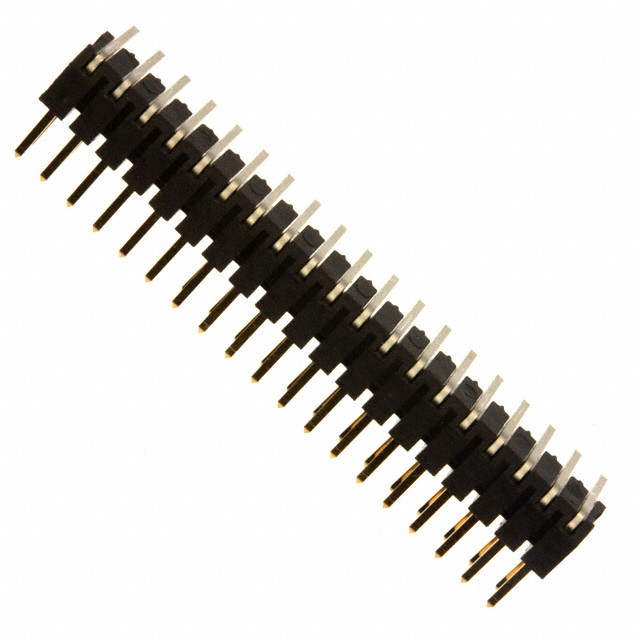

Amphenol ICC (FCI) 58102-G61-19LF	38	Solder	Through Hole Right Angle	Thermoplastic	UL94 V-0	Header	All	2	4 mm	0.157 in	Board to Board Cable	2.5 mm	0.098 in	0.079 in	2 mm	Square	2 A	Copper Alloy	Push-Pull	200 V	0.079 in	2 mm	30 Áin	0.76 Ám	Gold GXT™	Male Pin	Black	Unshrouded	0.165 in	4.2 mm
