SSI-LXH387 Series

Catalog

LED 4.9MM FLAT TOP RED PANEL MNT

Part	Millicandela Rating	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Panel Cutout Shape	Lens Size [diameter]	Current	Type	Lens Style	Lamp Color	Wavelength - Peak	Viewing Angle	Lens Color	Lens Transparency	Voltage	Termination Style	Lens Size	Lens Size	Current	Millicandela Rating [custom]	Millicandela Rating [custom]

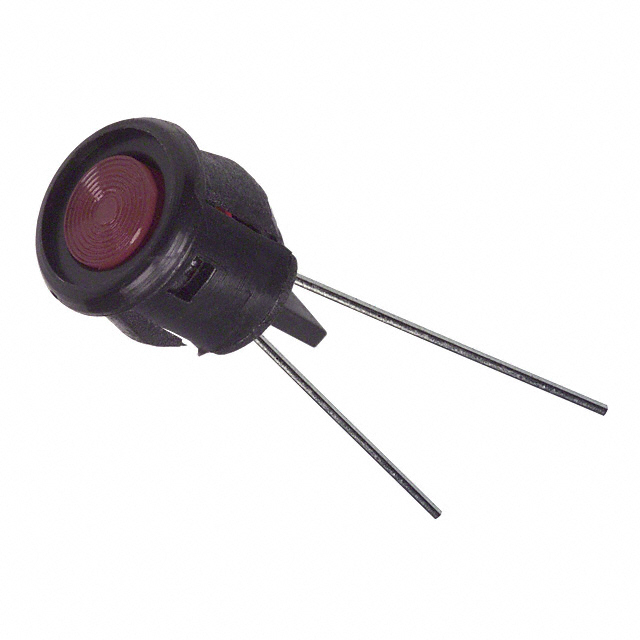

Lumex Opto/Components Inc. SSI-LXH387ID	10 mcd	0.31 in	7.87 mm	Round	5 mm	30 mA	LED	Round with Flat Top	Red	635 nm	120 °	Red	Fresnel	2 V
Lumex Opto/Components Inc. SSI-LXH387SRD	60 mcd	0.31 in	7.87 mm	Round	5 mm	30 mA	LED	Round with Flat Top	Red	660 nm	120 °	Red	Fresnel	1.7 V

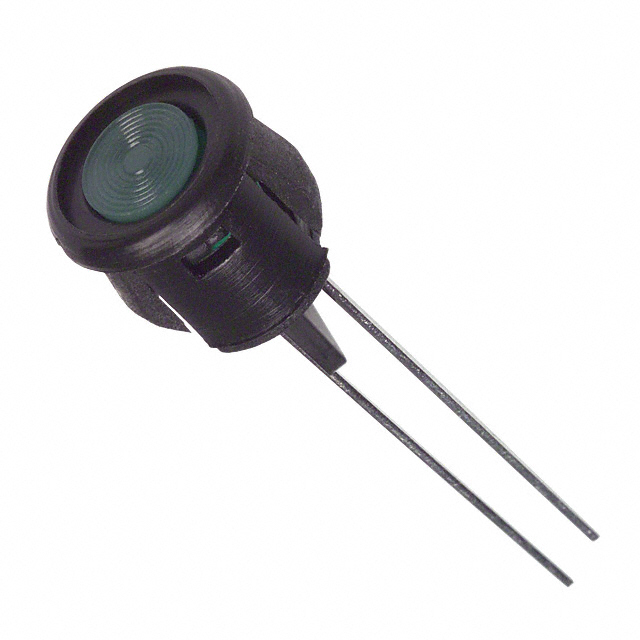

Lumex Opto/Components Inc. SSI-LXH387GD	10 mcd	0.31 in	7.87 mm	Round	5 mm	25 mA	LED	Round with Flat Top	Green	565 nm	120 °	Green	Fresnel	2.2 V
Lumex Opto/Components Inc. SSI-LXH387SUGD	60 mcd	0.31 in	7.87 mm	Round		20 mA	LED	Round with Flat Top	Green		120 °	Green	Diffused	2.2 V	PC Pin	5 mm	T-1 3/4
Lumex Opto/Components Inc. SSI-LXH387SID-150	60 mcd	0.31 in	7.87 mm	Round		20 mA	LED	Round with Flat Top	Red	636 nm	120 °	Red	Diffused	2 V		5 mm	T-1 3/4

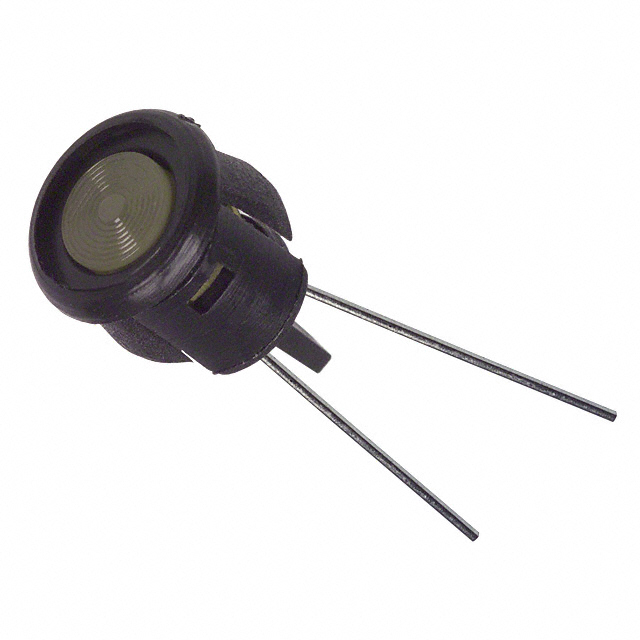

Lumex Opto/Components Inc. SSI-LXH387YD	10 mcd	0.31 in	7.87 mm	Round	5 mm	30 mA	LED	Round with Flat Top	Yellow	585 nm	120 °	Yellow	Fresnel	2.1 V
Lumex Opto/Components Inc. SSI-LXH387USBD-150	40 mcd	0.31 in	7.87 mm	Round		20 mA	LED	Round with Domed Top	Blue	470 nm	120 °	Blue	Diffused	3.5 V		5 mm	T-1 3/4
Lumex Opto/Components Inc. SSI-LXH387HGW		0.31 in	7.87 mm	Round	5 mm		LED	Round with Flat Top	Green Red	565 nm 700 nm	120 °	White	Diffused	2 V 2.2 V				25mA Green 25mA Red	4 mcd	10 mcd
