1506 Series

Catalog

CONN BARRIER STRIP 6CIRC 0.375"

Part	Material Flammability Rating	Mounting Type	Terminal Screw Finish	Material - Insulation	Operating Temperature	Features	Wire Gauge [Max]	Wire Gauge [Min]	Current Rating (Amps)	Number of Wire Entries	Barrier Type	Pitch	Pitch	Terminal Block Type	Number of Circuits	Bottom Termination	Top Termination	Number of Rows [custom]	Terminal Screw Material

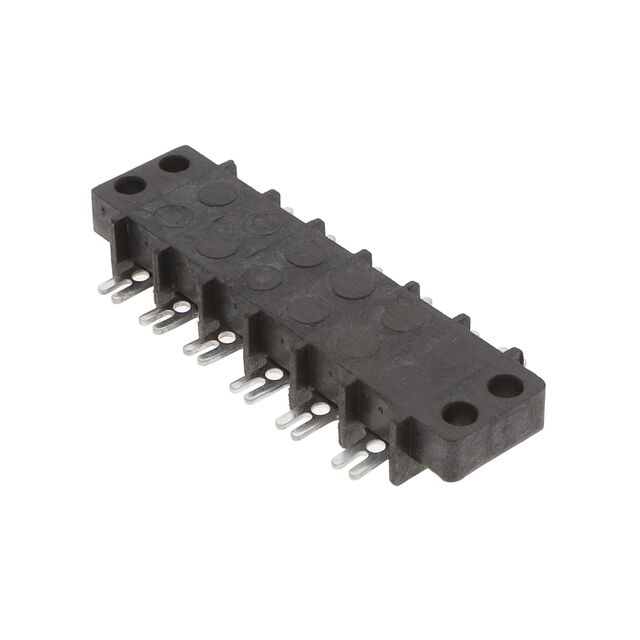

Curtis Industries 1506-ST	UL94 V-0	Chassis Panel	Tin	Polyphenylene Oxide (PPO)	110 °C	Flange	22 AWG	10 AWG	20 A	12	2 Wall (Dual)	9.53 mm	0.375 in	Barrier Block	6	Closed	Dual Screws with Solder Lugs	2
Curtis Industries 1506-3/4ST	UL94 V-0	Chassis Panel	Tin	Polyphenylene Oxide (PPO)	110 °C	Flange	22 AWG	10 AWG	20 A	12	2 Wall (Dual)	9.53 mm	0.375 in	Barrier Block	6	Closed	Screws with Solder Lugs Single	2

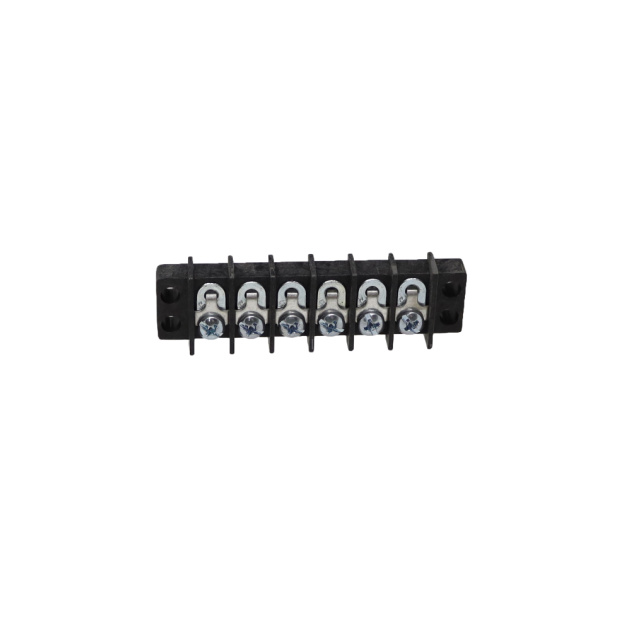

Curtis Industries 1506-Y	UL94 V-0	Chassis Panel Through Hole		Polyphenylene Oxide (PPO)	110 °C	Flange	22 AWG	10 AWG	20 A	12	2 Wall (Dual)	9.53 mm	0.375 in	Barrier Block	6	PC Pin	Screws	2	Steel
Curtis Industries 1506-YSY	UL94 V-0	Chassis Panel Through Hole		Polyphenylene Oxide (PPO)	110 °C	Flange	22 AWG	10 AWG	20 A	12	2 Wall (Dual)	9.53 mm	0.375 in	Barrier Block	6	PC Pin	Screws	2	Steel
