082-856 Series
Manufacturer: Amphenol RF
Beta
⌘K

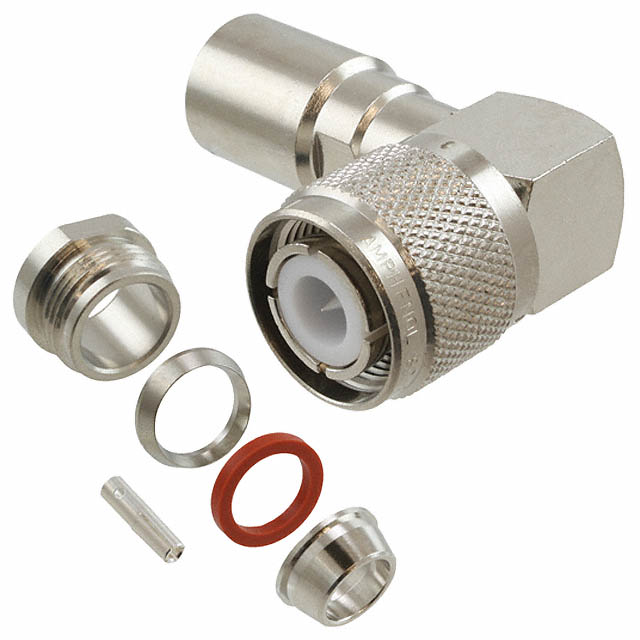

CONN HN PLUG R/A 50 OHM SOLDER
| Part | Body Material | Frequency - Max [Max] | Connector Style | Body Finish | Number of Ports | Impedance | Housing Color | Dielectric Material | Includes | Ingress Protection | Contact Termination | Voltage Rating | Shield Termination | Center Contact Plating | Mounting Type | Mating Cycles | Cable Group | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Material | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol RF | Brass | 4 GHz | HN Type | Nickel | 1 | 50 Ohms | Silver | Polytetrafluoroethylene (PTFE) | 1 Braid Clamp 1 Cable Gland 1 Clamp 1 Connector 1 Contact 1 Gasket | Weatherproof | Solder | 1500 V | Clamp | Silver | Free Hanging (In-Line) Right Angle | 500 | 213 214 225 302 393 87 8A 9 9A 9B RG-8 | -65 ░C | 165 °C | Beryllium Copper Brass | Male Pin Plug |
