1586042 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN HEADER R/A 8POS 4.2MM

Part	Contact Material	Shrouding	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Insulation Material	Current Rating (Amps)	Voltage Rating	Mounting Type	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Style	Applications	Number of Rows	Number of Positions Loaded	Contact Shape	Connector Type	Insulation Color	Contact Type	Termination
TE Connectivity Raychem Cable Protection 1586042-8	Brass Alloy	Shrouded - 4 Wall	4.2 mm	0.165 in	-40 °C	105 ░C	8	3.6 mm	0.142 in	UL94 V-0	Tin	2.03 µm	80 µin	2.03 µm	80 µin	0.402 in	10.2 mm	Nylon Polyamide (PA)	9 A	600 VAC	Through Hole Right Angle	Locking Ramp	4.2 mm	0.165 in	Board to Cable/Wire	General Purpose Industrial Lighting	2	All	Square	Header	Natural	Male Pin	Solder
TE Connectivity Raychem Cable Protection 1-1586042-8	Brass Alloy	Shrouded - 4 Wall	4.2 mm	0.165 in	-40 °C	105 ░C	18	3.6 mm	0.142 in	UL94 V-0	Tin	2.03 µm	80 µin	2.03 µm	80 µin	0.402 in	10.2 mm	Nylon Polyamide (PA)	9 A	600 VAC	Through Hole Right Angle	Locking Ramp	4.2 mm	0.165 in	Board to Cable/Wire	General Purpose Industrial Lighting	2	All	Square	Header	Natural	Male Pin	Solder

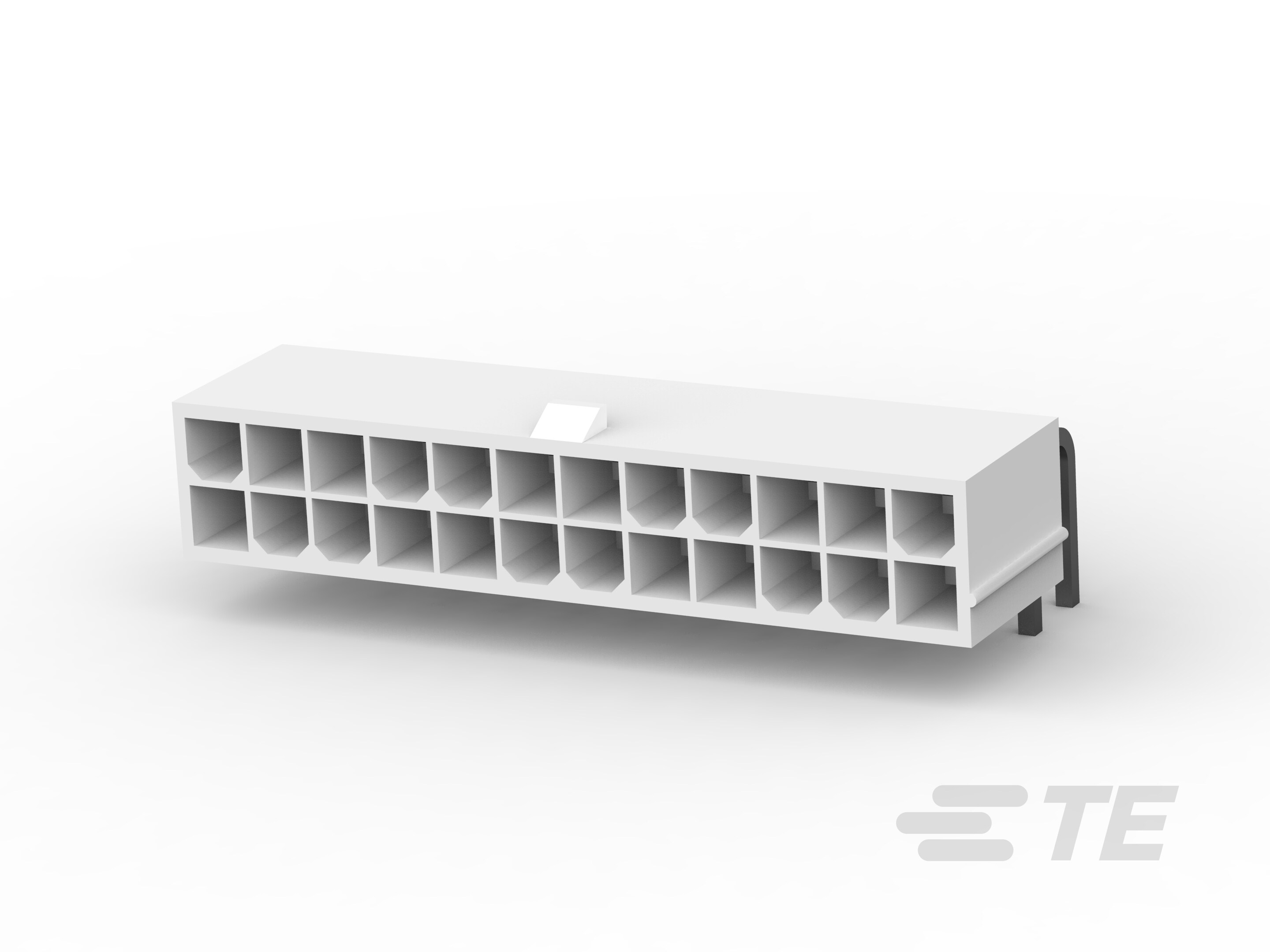

TE Connectivity Raychem Cable Protection 2-1586042-4	Brass Alloy	Shrouded - 4 Wall	4.2 mm	0.165 in	-40 °C	105 ░C	24	3.6 mm	0.142 in	UL94 V-0	Tin	2.03 µm	80 µin	2.03 µm	80 µin	0.402 in	10.2 mm	Nylon Polyamide (PA)	9 A	600 VAC	Through Hole Right Angle	Locking Ramp	4.2 mm	0.165 in	Board to Cable/Wire	General Purpose Industrial Lighting	2	All	Square	Header	Natural	Male Pin	Solder

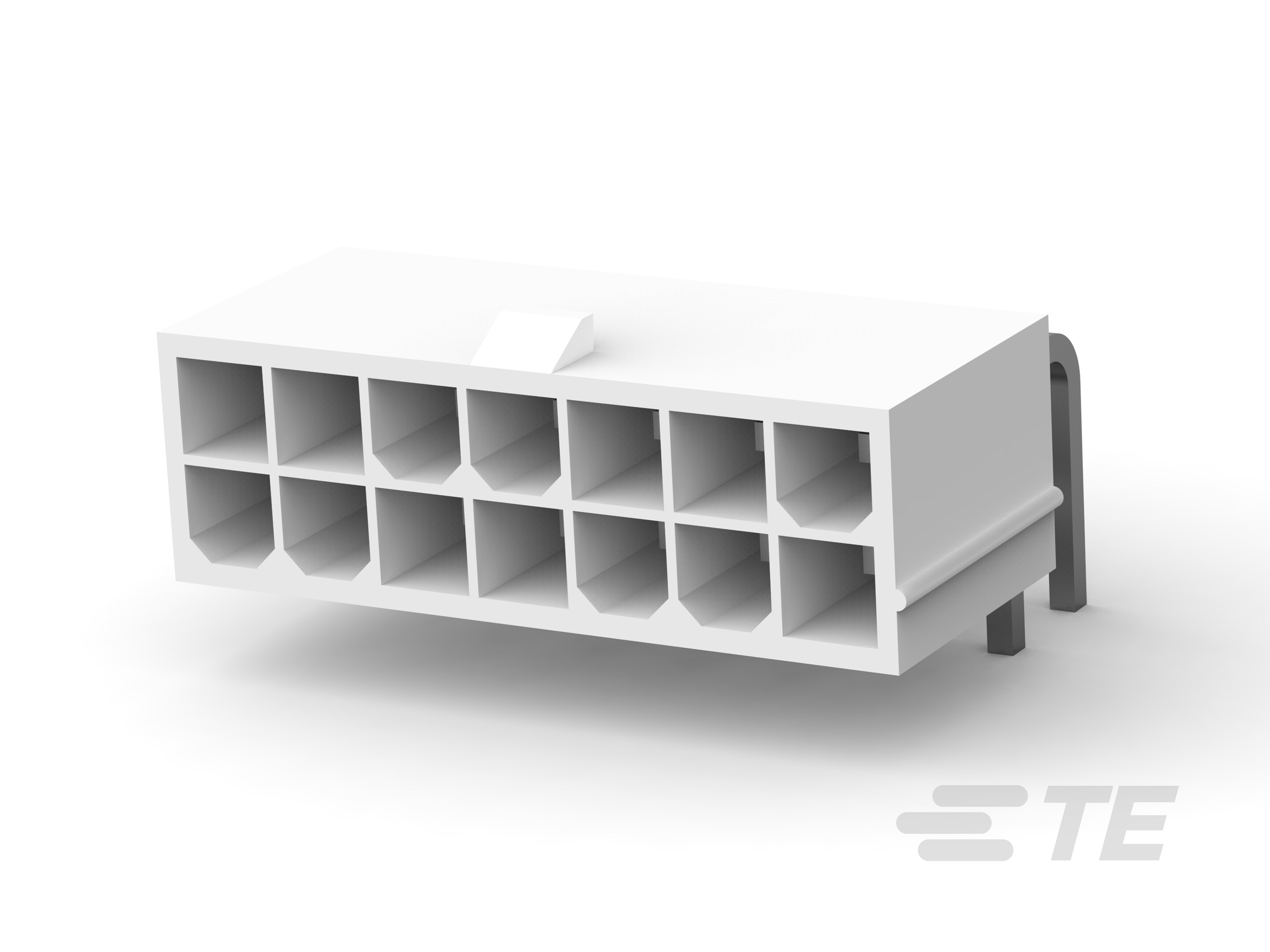

TE Connectivity Raychem Cable Protection 1-1586042-4	Brass Alloy	Shrouded - 4 Wall	4.2 mm	0.165 in	-40 °C	105 ░C	14	3.6 mm	0.142 in	UL94 V-0	Tin	2.03 µm	80 µin	2.03 µm	80 µin	0.402 in	10.2 mm	Nylon Polyamide (PA)	9 A	600 VAC	Through Hole Right Angle	Locking Ramp	4.2 mm	0.165 in	Board to Cable/Wire	General Purpose Industrial Lighting	2	All	Square	Header	Natural	Male Pin	Solder

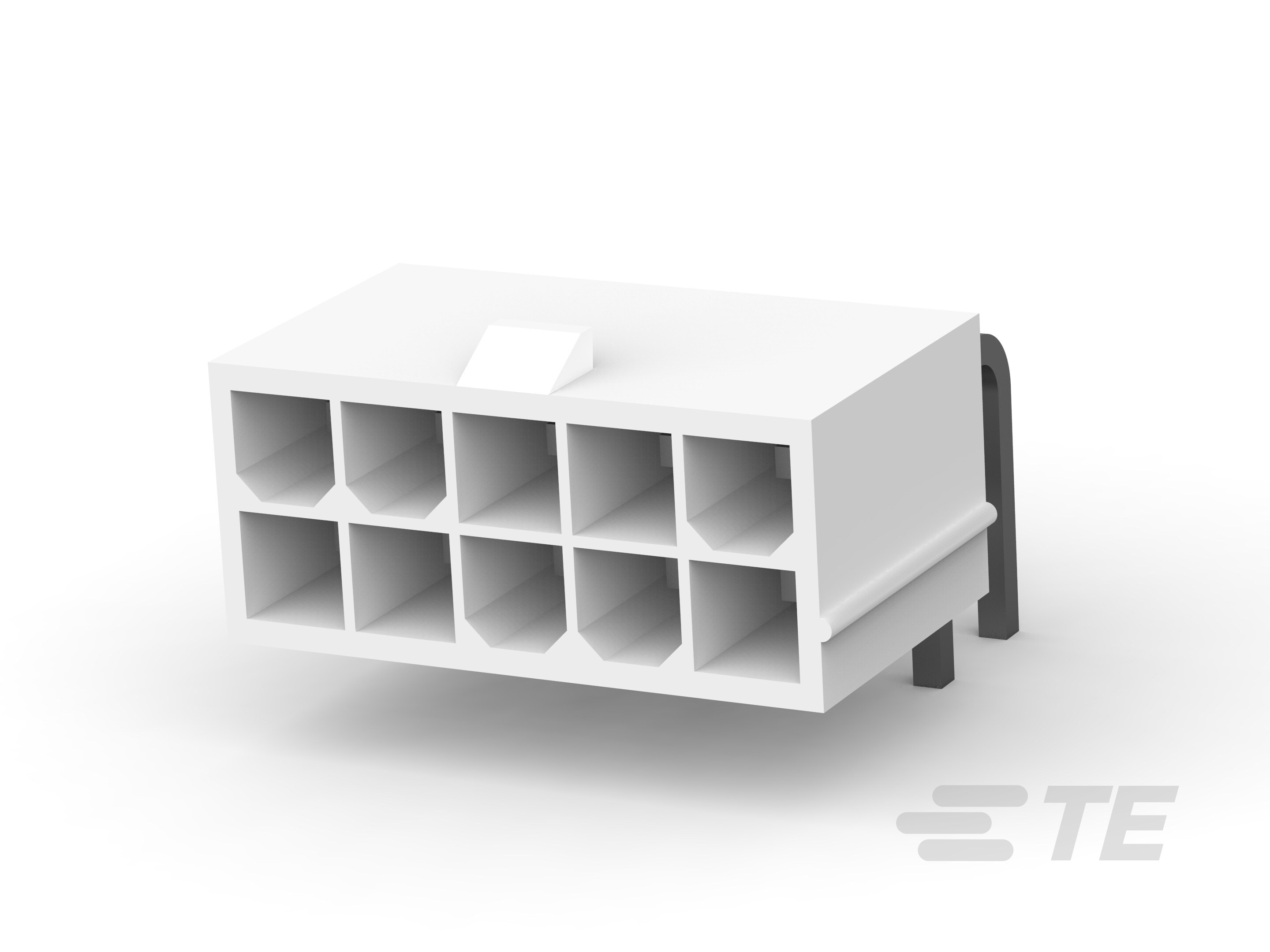

TE Connectivity Raychem Cable Protection 1-1586042-0	Brass Alloy	Shrouded - 4 Wall	4.2 mm	0.165 in	-40 °C	105 ░C	10	3.6 mm	0.142 in	UL94 V-0	Tin	2.03 µm	80 µin	2.03 µm	80 µin	0.402 in	10.2 mm	Nylon Polyamide (PA)	9 A	600 VAC	Through Hole Right Angle	Locking Ramp	4.2 mm	0.165 in	Board to Cable/Wire	General Purpose Industrial Lighting	2	All	Square	Header	Natural	Male Pin	Solder
