937-SP-30 Series

Catalog

CONN MOD PLUG 6P4C UNSHIELDED

Part	Voltage Rating	Housing Material	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Current Rating (Amps)	Contact Material	Shielding	Termination	Color	Cable Type	Number of Positions/Contacts [y]	Number of Positions/Contacts [x]	Length	Length	Connector Type	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Length [x]	Features	Length [x]	Number of Positions/Contacts
Bel Fuse Inc. 937-SP-3046	150 VDC	Polycarbonate (PC)	50 µin	1.27 µm	Gold	1.5 A	Phosphor Bronze	Unshielded	IDC	Translucent - Clear	Flat Oval Cable Stranded Wires	4	6	0.525 in	13.34 mm	Plug
Bel Fuse Inc. 937-SP-3044-SMK	150 VDC	Polycarbonate (PC)	50 µin	1.27 µm	Gold	1.5 A	Phosphor Bronze	Unshielded	IDC	Translucent - Smoke	Flat Oval Cable Stranded Wires			0.525 in	13.34 mm	Plug	4 contacts	4 positions

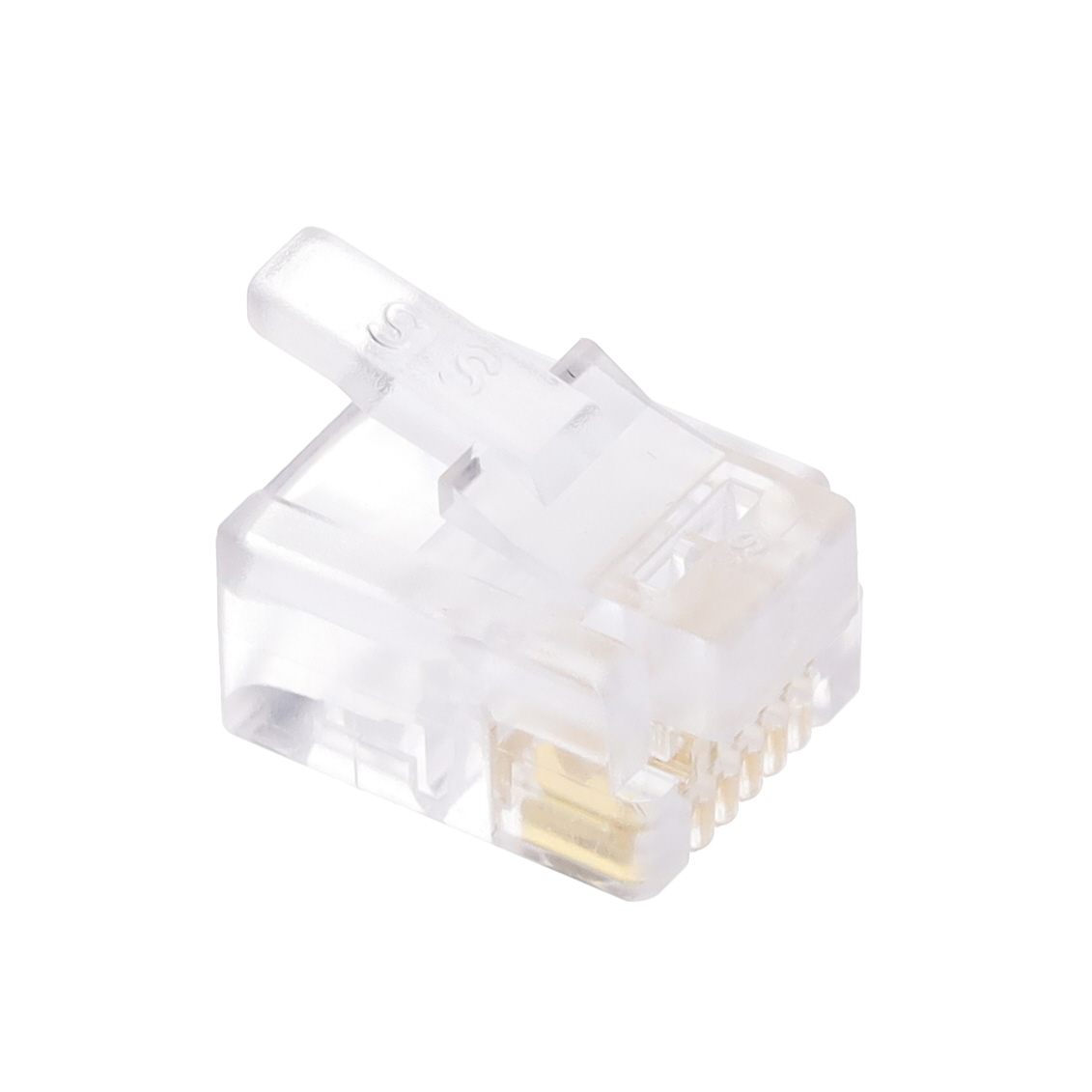

Bel Fuse Inc. 937-SP-3066R-SL	150 VDC	Polycarbonate (PC)	50 µin	1.27 µm	Gold	1.5 A	Phosphor Bronze	Unshielded	IDC	Translucent - Clear	Round Cable Stranded Wires	6	6		16.56 mm	Plug			0.652 in
Bel Fuse Inc. 937-SP-3066R-OST	150 VDC	Polycarbonate (PC)	50 µin	1.27 µm	Gold	1.5 A	Phosphor Bronze	Unshielded	IDC	Translucent - Clear	Round Cable Stranded Wires	6	6	0.525 in	13.34 mm	Plug				Offset Latch
Bel Fuse Inc. 937-SP-3088-2PC-A192	150 VDC	Polycarbonate (PC)	50 µin	1.27 µm	Gold	1.5 A	Phosphor Bronze	Unshielded	IDC	Translucent - Clear	Flat Oval Cable Stranded Wires					Plug			0.885 in		22.48 mm	8p8c (RJ45 Ethernet)

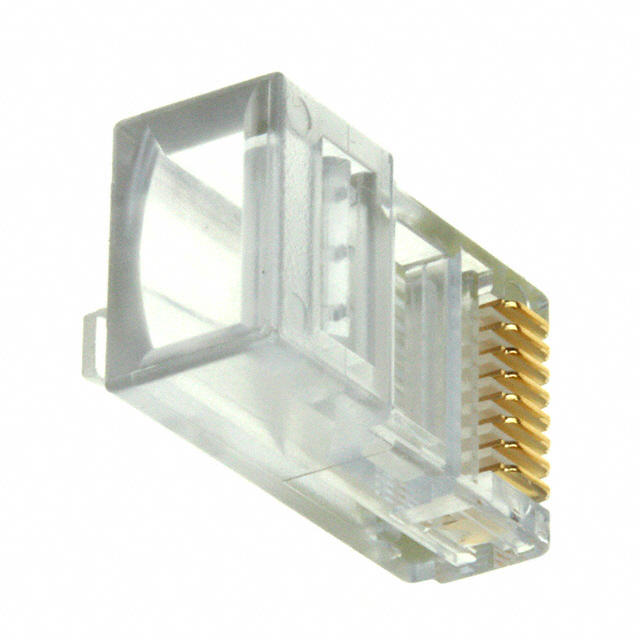

Bel Fuse Inc. 937-SP-3088R	150 VDC	Polycarbonate (PC)	50 µin	1.27 µm	Gold	1.5 A	Phosphor Bronze	Unshielded	IDC	Translucent - Clear	Round Cable Stranded Wires					Plug			0.885 in		22.48 mm	8p8c (RJ45 Ethernet)
Bel Fuse Inc. 937-SP-3044R	150 VDC	Polycarbonate (PC)	50 µin	1.27 µm	Gold	1.5 A	Phosphor Bronze	Unshielded	IDC	Translucent - Clear	Round Cable Stranded Wires			0.525 in	13.34 mm	Plug	4 contacts	4 positions
Bel Fuse Inc. 937-SP-3066R	150 VDC	Polycarbonate (PC)	50 µin	1.27 µm	Gold	1.5 A	Phosphor Bronze	Unshielded	IDC	Translucent - Clear	Round Cable Stranded Wires	6	6	0.525 in	13.34 mm	Plug

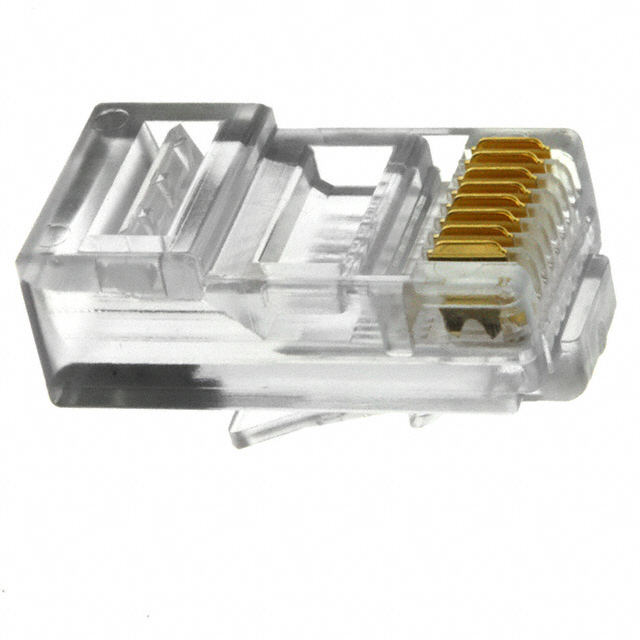

Bel Fuse Inc. 937-SP-3088	150 VDC	Polycarbonate (PC)	50 µin	1.27 µm	Gold	1.5 A	Phosphor Bronze	Unshielded	IDC	Translucent - Clear	Flat Oval Cable Stranded Wires					Plug			0.885 in		22.48 mm	8p8c (RJ45 Ethernet)
Bel Fuse Inc. 937-SP-3048-A364	150 VDC	Polycarbonate (PC)	50 µin	1.27 µm	Gold	1.5 A	Phosphor Bronze	Unshielded	IDC	Translucent - Clear	Flat Oval Cable Stranded Wires					Plug	4	8	0.885 in		22.48 mm
