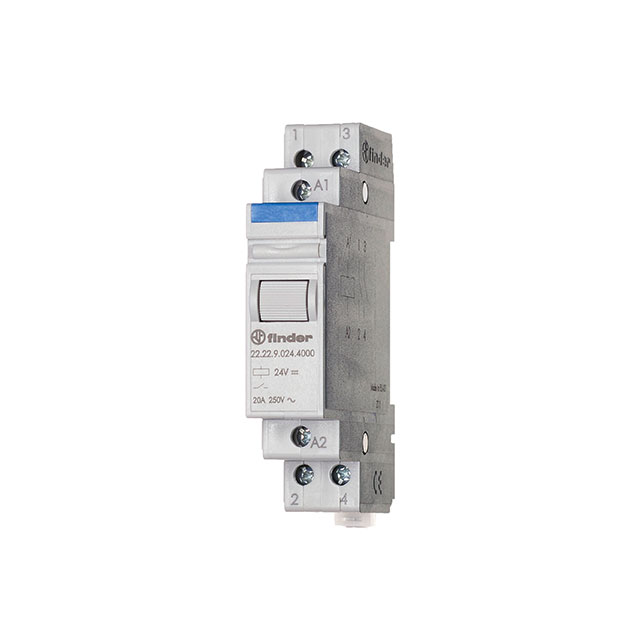

22.22.9 Series
Manufacturer: Finder Relays, Inc.
Beta
⌘K
RELAY GEN PURPOSE DPST 20A 12V
| Part | Coil Resistance | Termination Style | Mounting Type | Coil Type | Contact Material | Approval Agency | Contact Form | Features | Coil Current | Switching Voltage [Max] | Release Time | Load - Max Switching [Max] | Relay Type | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Contact Rating (Current) | Operate Time | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Finder Relays, Inc. | 115 Ohms | Screw Terminal | DIN Rail | Non Latching | Silver Tin Oxide (AgSnO) | CE EAC | DPST-NO (2 Form A) | Test Button | 104 mA | 400 VAC | 8 ms | 8000 VA | General Purpose | 40 °C | -40 C | 12 VDC | 20 A | 15 ms | |
 Finder Relays, Inc. | 460 Ohms | Screw Terminal | DIN Rail | Non Latching | Silver Tin Oxide (AgSnO) | CE EAC | DPST-NO (2 Form A) | Test Button | 52.2 mA | 400 VAC | 8 ms | 8000 VA | General Purpose | 40 °C | -40 C | 24 VDC | 20 A | 15 ms | 21.6 VDC |
