629-3WK Series
Manufacturer: EDAC Inc.
Beta
⌘K

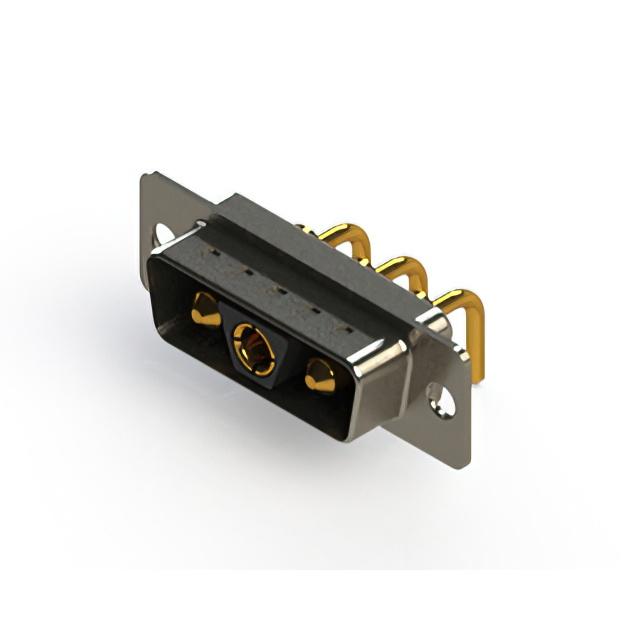

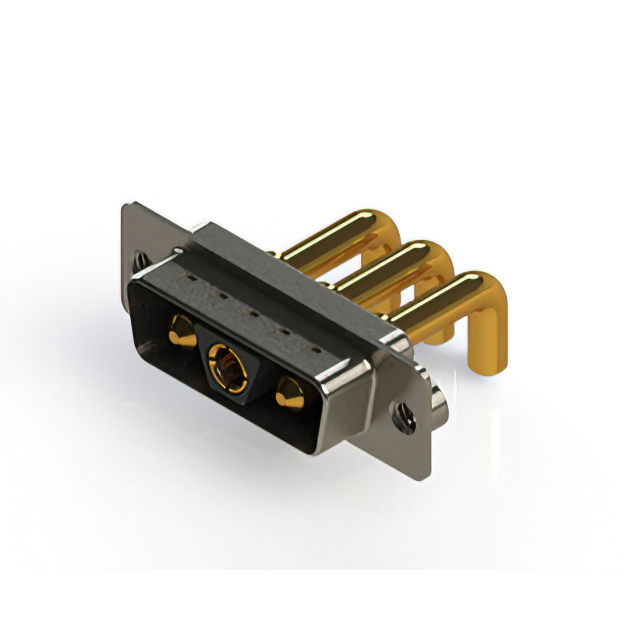

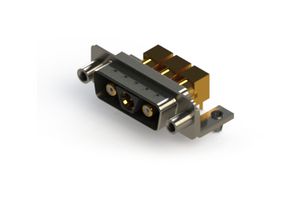

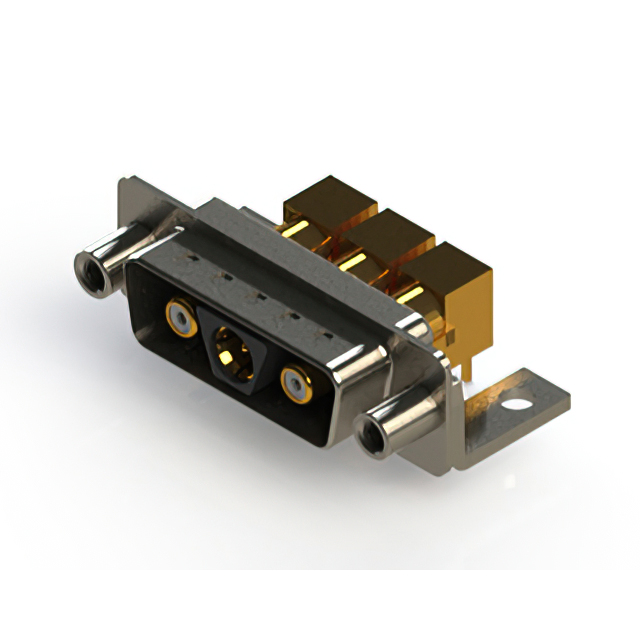

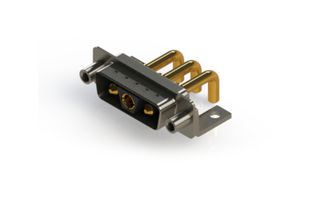

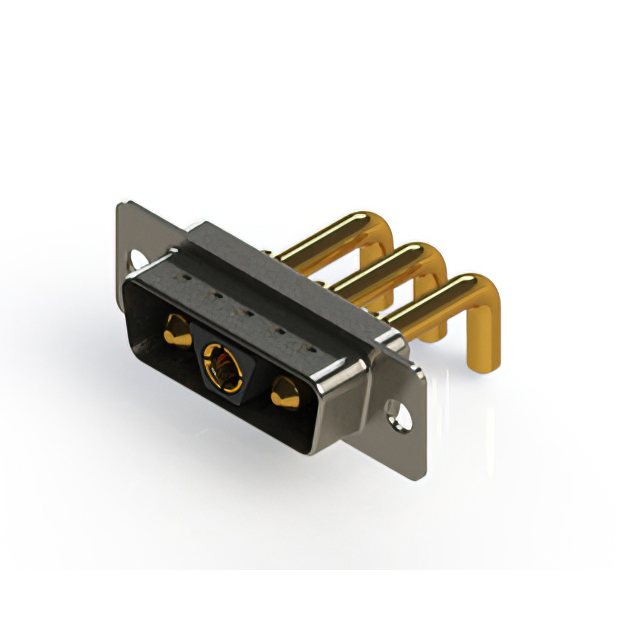

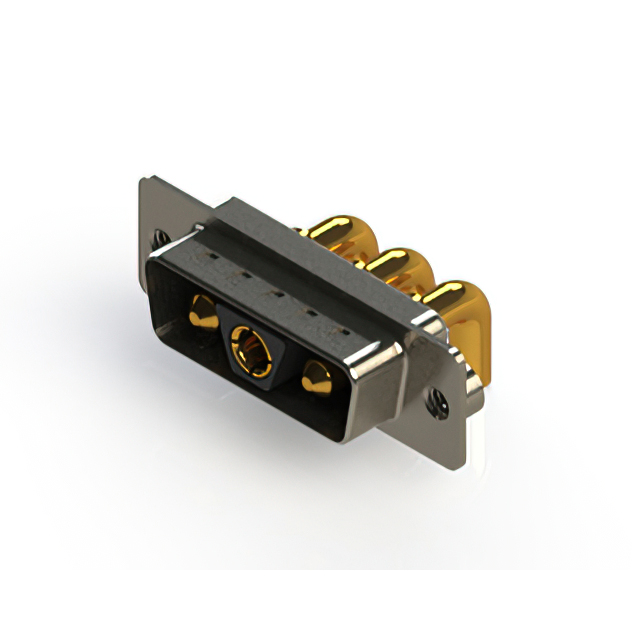

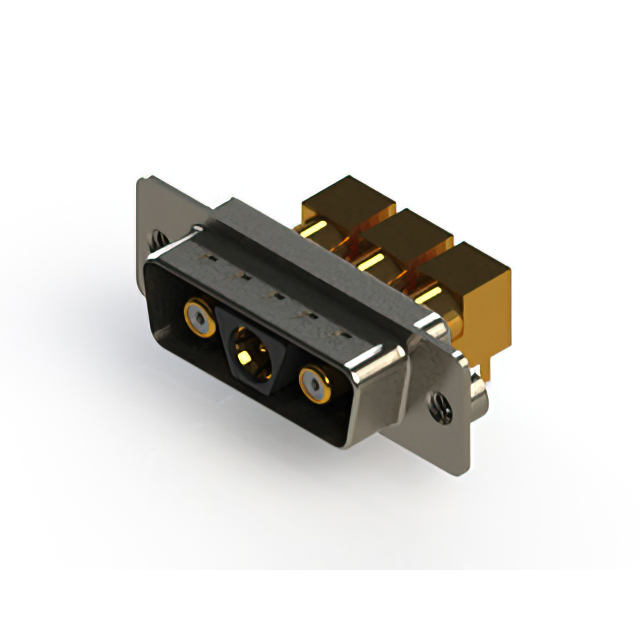

D-SUB MIXED CONTACT CONNECTORS RIGHT-ANGLE POWER COMBO D-SUB CONNECTOR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Color | Contact Material | Voltage Rating | Features | Connector Type | Number of Positions | Contact Type | Backset Spacing | Backset Spacing | Connector Style | Flange Feature | Flange Feature | Contact Finish Thickness | Material Flammability Rating | Current Rating (Amps) | Shell Size, Connector Layout | Shell Size, Connector Layout | Termination | Number of Rows | Contact Finish | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Black | Copper Alloy | 125 VDC | Board Lock Grounding Indents Mounting Brackets | Plug Female Sockets and Male Pins | 3 | Power | 0.52 " | 13.2 mm | Combo D-Sub | Housing/Shell | 4-40 | Flash | UL94 V-0 | 20 A | 3WK3 A DA | 2 | Solder | 1 | Gold | Right Angle Through Hole | |||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Black | Copper Alloy | 125 VDC | Grounding Indents Mounting Brackets | Plug Female Sockets and Male Pins | 3 | Power | 0.52 " | 13.2 mm | Combo D-Sub | Housing/Shell (M3) | UL94 V-0 | 10 A | 3WK3 A DA | 2 | Solder | 1 | Gold | Right Angle Through Hole | 30 Áin | 0.76 Ám | Nickel Plated Steel | ||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Black | Copper Alloy | 125 VDC | Grounding Indents Mounting Brackets | Plug Female Sockets and Male Pins | 3 | Power | 0.52 " | 13.2 mm | Combo D-Sub | Housing/Shell (M3) | UL94 V-0 | 10 A | 3WK3 A DA | 2 | Solder | 1 | Gold | Right Angle Through Hole | 30 Áin | 0.76 Ám | |||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Black | Copper Alloy | 125 VDC | Board Lock Grounding Indents | Plug Female Sockets and Male Pins | 3 | Coax | 0.37 in | 9.4 mm | Combo D-Sub | 4-40 | Flash | UL94 V-0 | 3WK3 A DA | 2 | Solder | 1 | Gold | Right Angle Through Hole | Nickel Plated Steel | ||||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Black | Copper Alloy | 125 VDC | Grounding Indents Mounting Brackets | Plug Female Sockets and Male Pins | 3 | Power | 0.52 " | 13.2 mm | Combo D-Sub | M3 | UL94 V-0 | 30 A | 3WK3 A DA | 2 | Solder | 1 | Gold | Right Angle Through Hole | 30 Áin | 0.76 Ám | |||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Black | Copper Alloy | 125 VDC | Plug Female Sockets and Male Pins | 3 | Power | 0.52 " | 13.2 mm | Combo D-Sub | Housing/Shell | 4-40 | Flash | UL94 V-0 | 40 A | 3WK3 A DA | 2 | Solder | 1 | Gold | Right Angle Through Hole | ||||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Black | Copper Alloy | 125 VDC | Plug Female Sockets and Male Pins | 3 | Coax | 0.37 in | 9.4 mm | Combo D-Sub | Housing/Shell | 4-40 | Flash | UL94 V-0 | 3WK3 A DA | 2 | Solder | 1 | Gold | Right Angle Through Hole | |||||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Black | Copper Alloy | 125 VDC | Grounding Indents | Plug Female Sockets and Male Pins | 3 | Power | 0.52 " | 13.2 mm | Combo D-Sub | Board Side (M3) | Flash | UL94 V-0 | 40 A | 3WK3 A DA | 2 | Solder | 1 | Gold | Right Angle Through Hole | ||||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Black | Copper Alloy | 125 VDC | Board Lock Grounding Indents Mounting Brackets | Plug Female Sockets and Male Pins | 3 | Coax | 0.37 in | 9.4 mm | Combo D-Sub | M3 | Flash | UL94 V-0 | 3WK3 A DA | 2 | Solder | 1 | Gold | Right Angle Through Hole | |||||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Black | Copper Alloy | 125 VDC | Grounding Indents Shielded | Plug Female Sockets and Male Pins | 3 | Power | 0.52 " | 13.2 mm | Combo D-Sub | Housing/Shell (Unthreaded) | UL94 V-0 | 30 A | 3WK3 A DA | 2 | Solder | 1 | Gold | Right Angle Through Hole | 30 Áin | 0.76 Ám |
