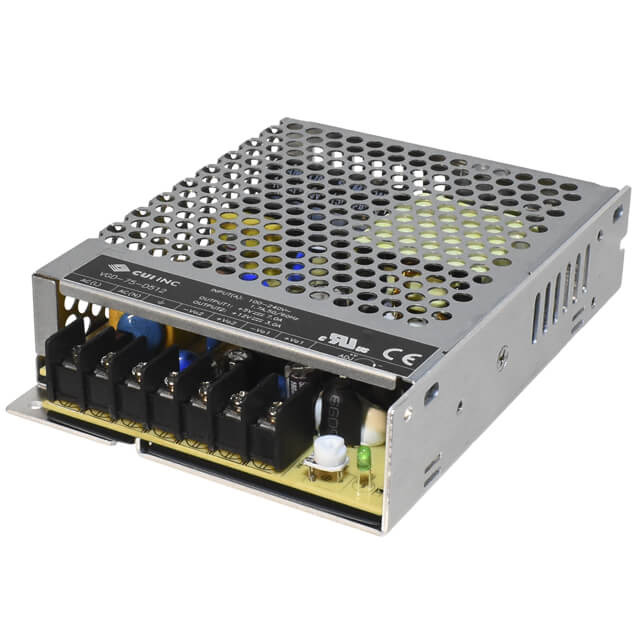

VGD-75 Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 5V 24V 73W
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Standard Number | Voltage - Output 2 | Power (Watts) | Efficiency | Current - Output 2 | Number of Outputs | Features | Voltage - Output 1 | Type | Minimum Load Required | Mounting Type | Applications | Approval Agency | Current - Output 1 | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Isolation | Voltage - Input [Min] | Voltage - Input [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | -30 °C | 70 °C | 62368-1 | 24 V | 73 W | 84 % | 2 A | 2 | Adjustable Output Universal Input | 5 V | Enclosed | Chassis Mount | Household Appliances ITE (Commercial) | CB Scheme IEC UL | 5 A | 97 mm | 30 mm | 122.5 mm | 1.18 in | 3.82 in | 4.82 in | 3000 V | 90 VAC 120 VDC | 264 VAC 373 VDC |
