78053 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

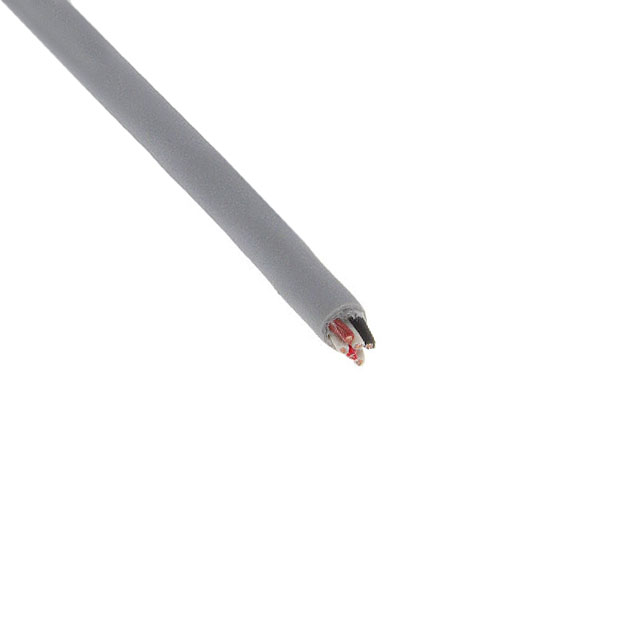

MULTI-PAIR 6COND 28AWG 1000'
| Part | Number of Conductors | Wire Gauge | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Cable Type | Conductor Insulation | Jacket (Insulation) Material | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Conductor Material | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 6 | 28 AWG | 300 V | 0.14 in | 3.56 mm | Biological Compatibility Rip Cord | 0.015 in | 0.381 mm | ISO 10993 UL Style 21460 | Multi-Pair | Polyphenylene Ether Modified (mPPE) | Polyphenylene Ether Modified (mPPE) | 1000 ft | 304.8 m | 19 | 40 AWG | -40 °C | 80 C | Slate | Copper Tinned | ||
ALPHA WIRE | 6 | 28 AWG | 300 V | 0.14 in | 3.56 mm | Biological Compatibility Rip Cord | 0.015 in | 0.381 mm | ISO 10993 UL Style 21460 | Multi-Pair | Polyphenylene Ether Modified (mPPE) | Polyphenylene Ether Modified (mPPE) | 19 | 40 AWG | -40 °C | 80 C | Slate | Copper Tinned | 30.5 m | 100 ft |
