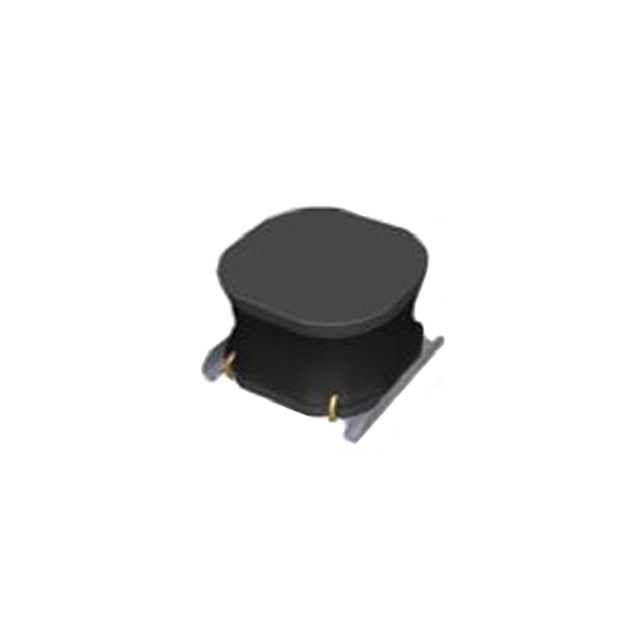

1264EY Series

Catalog

INDUCTOR, 33UH, 1.4A, 20%, WIREWOUND

Part	Inductance	Current - Saturation (Isat)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Material - Core	Current Rating (Amps)	Tolerance	Shielding	Package / Case	Type	Inductance Frequency - Test	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR)
Murata Electronics 1264EY-330M=P3	33 µH	1.9 A	0.248 in	0.248 in	6.3 mm	6.3 mm	Ferrite	1.4 A	20 %	Shielded	Nonstandard	Drum Core Wirewound	100 kHz	Surface Mount	0.197 in	5 mm	170 mOhm
Murata Electronics 1264EY-3R3N=P3	3.3 µH	6.5 A	0.248 in	0.248 in	6.3 mm	6.3 mm	Ferrite	4.8 A	30 %	Shielded	Nonstandard	Drum Core Wirewound	100 kHz	Surface Mount	0.197 in	5 mm	21 mOhm
Murata Electronics 1264EY-101M=P3	100 µH	1.2 A	0.248 in	0.248 in	6.3 mm	6.3 mm	Ferrite	900 mA	20 %	Shielded	Nonstandard	Drum Core Wirewound	100 kHz	Surface Mount	0.197 in	5 mm	460 mOhm
Murata Electronics 1264EY-220M=P3	22 µH	2.3 A	0.248 in	0.248 in	6.3 mm	6.3 mm	Ferrite	1.8 A	20 %	Shielded	Nonstandard	Drum Core Wirewound	100 kHz	Surface Mount	0.197 in	5 mm	110 mOhm
Murata Electronics 1264EY-680M=P3	68 µH	1.4 A	0.248 in	0.248 in	6.3 mm	6.3 mm	Ferrite	1.1 A	20 %	Shielded	Nonstandard	Drum Core Wirewound	100 kHz	Surface Mount	0.197 in	5 mm	325 mOhm
Murata Electronics 1264EY-4R7M=P3	4.7 ÁH	5.4 A	0.248 in	0.248 in	6.3 mm	6.3 mm	Ferrite	3.7 A	20 %	Shielded	Nonstandard	Drum Core Wirewound	100 kHz	Surface Mount	0.197 in	5 mm	29 mOhm
Murata Electronics 1264EY-100M=P3	10 µH	3.5 A	0.248 in	0.248 in	6.3 mm	6.3 mm	Ferrite	3.1 A	20 %	Shielded	Nonstandard	Drum Core Wirewound	100 kHz	Surface Mount	0.197 in	5 mm	45 mOhm
Murata Electronics 1264EY-1R5N=P3	1.5 µH		0.248 in	0.248 in	6.3 mm	6.3 mm	Ferrite	5.5 Amps	30 %	Shielded	Nonstandard	Drum Core Wirewound	100 kHz	Surface Mount	0.197 in	5 mm	14 mOhm
Murata Electronics 1264EY-150M=P3	15 µH	3 A	0.248 in	0.248 in	6.3 mm	6.3 mm	Ferrite	2.1 A	20 %	Shielded	Nonstandard	Drum Core Wirewound	100 kHz	Surface Mount	0.197 in	5 mm	87 mOhm
