APGF0606 Series
Manufacturer: Kingbright
Beta
⌘K

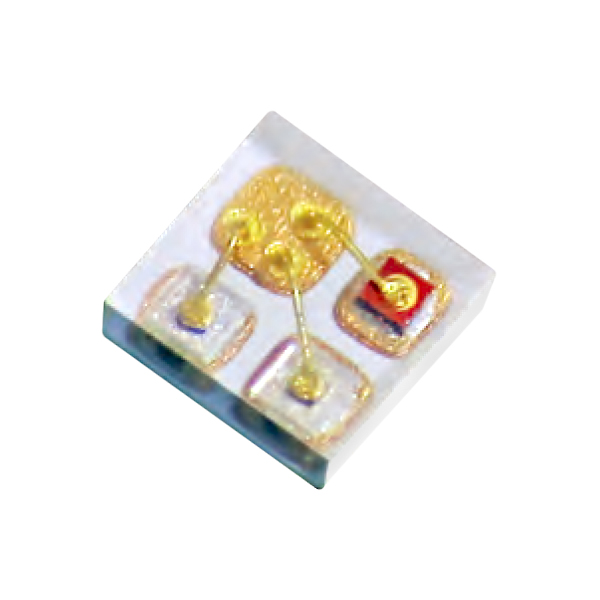

LED RGB CLEAR 4SMD
| Part | Color | Wavelength - Dominant | Height (Max) [z] | Mounting Type | Configuration | Package / Case | Current - Test [custom] | Current - Test [custom] | Current - Test [custom] | Supplier Device Package | Wavelength - Peak | Lens Color | Size / Dimension [y] | Size / Dimension [x] | Lens Size | Lens Transparency | Millicandela Rating | Viewing Angle | Voltage - Forward (Vf) (Typ) [custom] | Voltage - Forward (Vf) (Typ) [custom] | Voltage - Forward (Vf) (Typ) [custom] | Lens Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kingbright | Blue Green Red | 467nm Blue 527nm Green 624nm Red | 0.25 mm | Surface Mount | Common Anode | 4-SMD No Lead | 5 mA | 5 mA | 5 mA | 4-SMD | 461nm Blue 518nm Green 632nm Red | Colorless | 0.65 mm | 0.65 mm | 0.65 mm | Clear | 20 mcd 30 mcd 90 mcd | 140 ° | 1.95 V | 2.9 V | 3 V | Square with Flat Top |
