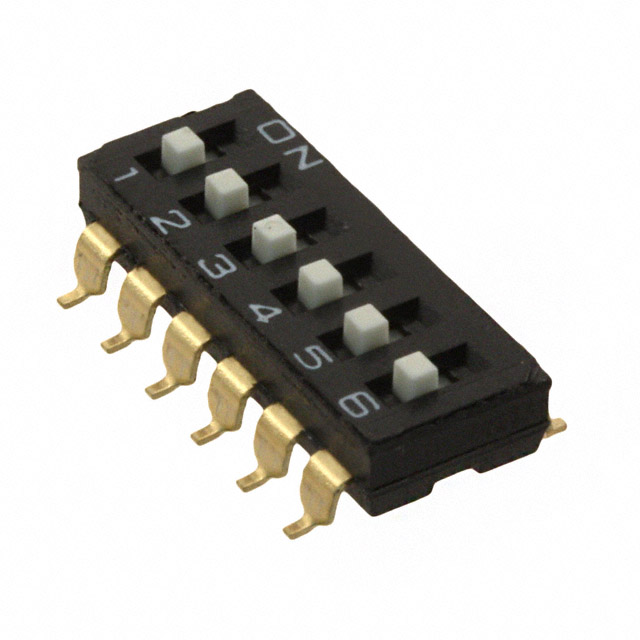

A6S-6104 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH SLIDE DIP SPST 0.025A 24V
| Part | Actuator Level | Current Rating (Amps) | Pitch | Pitch | Circuit | Actuator Type | Length [x] | Length [x] | Voltage Rating | Termination Style | Mounting Type | Electrical Life | Number of Positions | Contact Finish | Height Above Board [z] | Height Above Board [z] | Operating Temperature [Min] | Operating Temperature [Max] | Mechanical Life | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Raised | 25 mA | 2.54 mm | 0.1 " | SPST | Slide (Standard) | 16.18 mm | 0.637 in | 24 VDC | Gull Wing | Surface Mount | 1000 Cycles | 6 | Gold | 0.173 in | 4.4 mm | -20 ░C | 70 °C | 1000 Cycles | |
Omron Electronics Inc-EMC Div | Raised | 25 mA | 2.54 mm | 0.1 " | SPST | Slide (Standard) | 16.18 mm | 0.637 in | 24 VDC | Gull Wing | Surface Mount | 1000 Cycles | 6 | Gold | 0.173 in | 4.4 mm | -20 ░C | 70 °C | 1000 Cycles |
