TR9CH5000 Series
Manufacturer: GlobTek, Inc.
Beta
⌘K

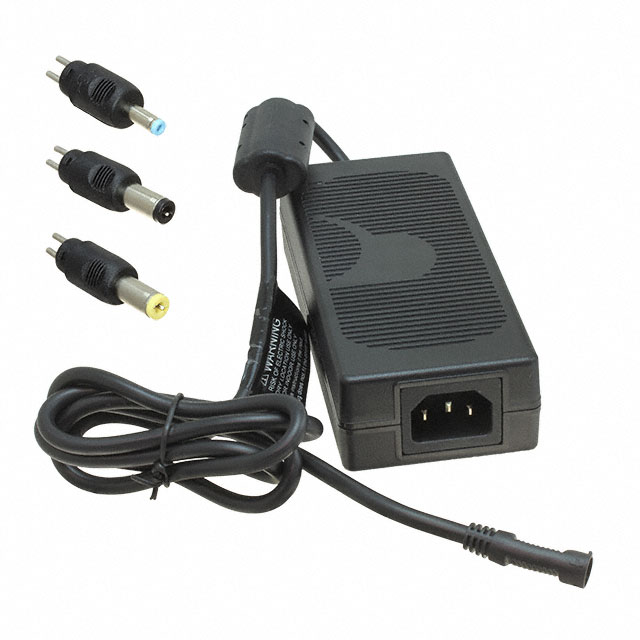

AC/DC DESKTOP ADAPTER 18V 90W
| Part | Region Utilized | Input Connector | Efficiency | Input Type | Voltage - Output | Applications | Form | Power (Watts) | Approval Agency | Voltage - Input [Max] | Voltage - Input [Min] | Standard Number | Output Connector | No Load Power Consumption | Operating Temperature [Max] | Operating Temperature [Min] | Cord Length | Cord Length | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GlobTek, Inc. | International | IEC 320-C14 | Level VI | Cord (Sold Separately) | 18 V | Household Appliances ITE (Commercial) Medical | Desktop (Class I) | 90 W | CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UkrSEPRO VCCI | 264 VAC | 90 VAC | 1310 60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1 | Barrel Plug Kit (1.3mm x 3.5mm | 150 mW | 50 °C | 0 °C | 1.2 m | 47.2 in | 34 mm | 1.34 " | 5.88 " | 149.3 mm | 2.47 " | 62.8 mm | 5 A |
