KFB2ALA2 Series
Manufacturer: ZF Electronics
Beta
⌘K

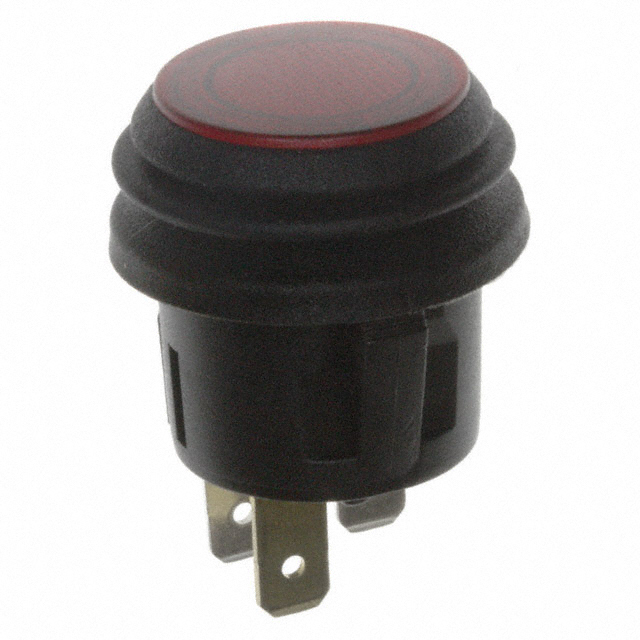

SWITCH PUSH SPST 10A 125V
| Part | Electrical Life | Mechanical Life | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Illumination Type, Color | Circuit | Mounting Type | Actuator Type | Ingress Protection | Panel Cutout Dimensions [diameter] | Illumination Voltage (Nominal) | Actuator Marking | Type | Termination Style | Switch Function | Current Rating (Amps) | Color - Actuator/Cap | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ZF Electronics | 6000 Cycles | 100000 Cycles | 85 °C | -25 °C | 125 V | Neon Red | SPST | Panel Mount Snap-In | Button Round | IP65 - Dust Tight Water Resistant | 20.2 mm | 110 VAC | No Marking | Illuminated Standard | Quick Connect | On-Off | 10 A | Red | 28 V |
