L70 Series
Manufacturer: Quectel
Beta
⌘K
L70 GPS MODULE SERIES EVALUATION KIT
| Part | Supplied Contents | For Use With/Related Products | Type | Contents | Utilized IC / Part | Sensitivity | Serial Interfaces | Operating Temperature [Max] | Operating Temperature [Min] | Frequency | Mounting Type | Voltage - Supply [Min] | Voltage - Supply [Max] | RF Family/Standard | Package / Case | Protocol | Data Rate | Antenna Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Quectel | Accessories Board(s) Cable(s) | L70 | Transceiver | Accessories Board(s) Cable(s) | L70 | |||||||||||||

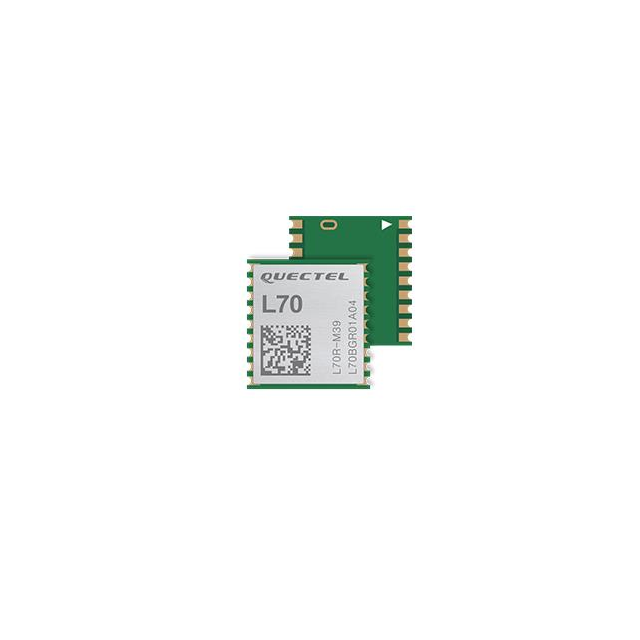

 Quectel | MT3337 | -165 dBm | UART | 85 °C | -40 C | 1.575 GHz | Surface Mount | 2.8 V | 4.3 V | Navigation | 18-SMD Module | GPS | 115.2 kbps | Antenna Not Included | ||||
 Quectel | MT3339 | -165 dBm | UART | 85 °C | -40 C | 1.575 GHz | Surface Mount | 2.8 V | 4.3 V | Navigation | 18-SMD Module | GPS | 115.2 kbps | Antenna Not Included | ||||
 Quectel | MT3337 | -165 dBm | UART | 85 °C | -40 C | 1.575 GHz | Surface Mount | 2.8 V | 4.3 V | Navigation | 18-SMD Module | GPS | 115.2 kbps | Antenna Not Included | ||||

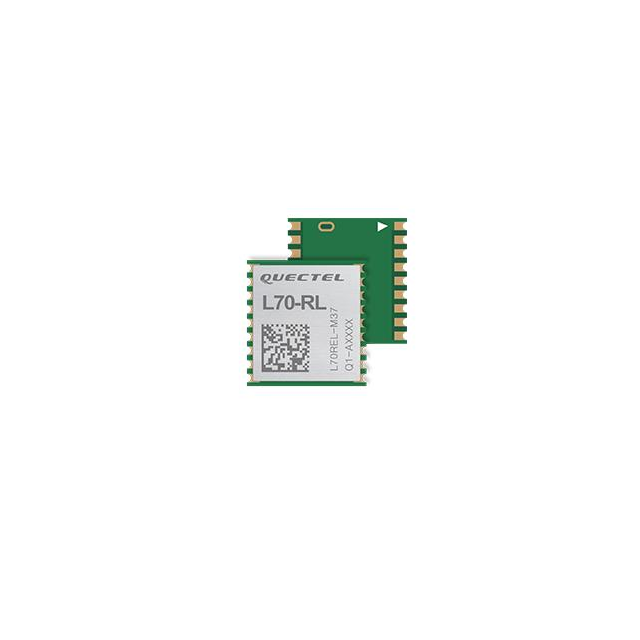

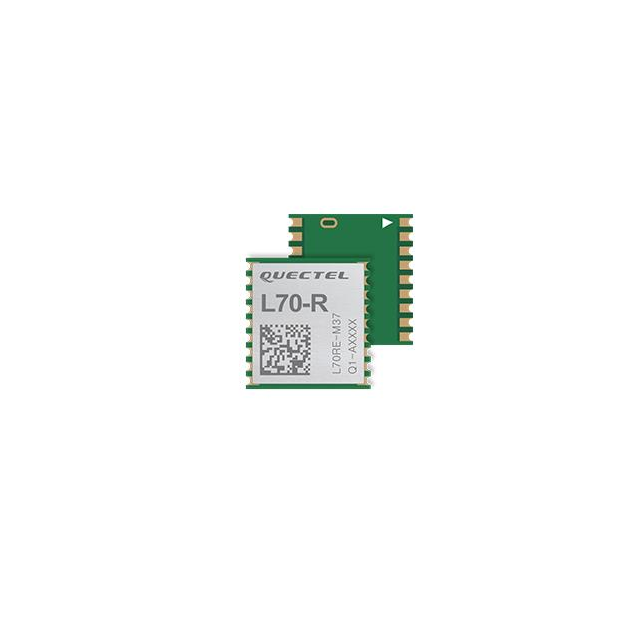

 Quectel | Board(s) | L70-R | Transceiver | Board(s) | L70-R | 1.575 GHz | ||||||||||||
Quectel | Board(s) | L70-R | Transceiver | Board(s) | L70-R | 1.575 GHz |
