8334 Series
Manufacturer: Belden Inc.
Beta
⌘K

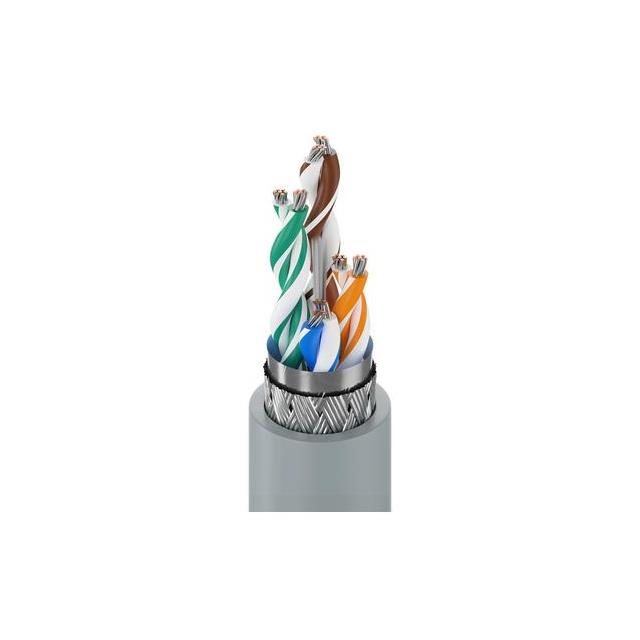

MULTI-PAIR 8CON 24AWG CHROM
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Usage | Jacket Color | Conductor Insulation | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Voltage | Conductor Material | Jacket (Insulation) Material | Ratings | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 0.035 in | 0.889 mm | Braid Foil | 80 °C | -30 ░C | 8 | Computer | Chrome | Poly-Vinyl Chloride (PVC) | 24 AWG | 0.272 in | 6.91 mm | 152.4 m | 500 ft | 300 VDC | Copper Tinned | Poly-Vinyl Chloride (PVC) | UL Style 2464 | Multi-Pair | 7 | 32 AWG |
Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 0.035 in | 0.889 mm | Braid Foil | 80 °C | -30 ░C | 8 | Computer | Chrome | Poly-Vinyl Chloride (PVC) | 24 AWG | 0.272 in | 6.91 mm | 304.8 m | 1000 ft | 300 VDC | Copper Tinned | Poly-Vinyl Chloride (PVC) | UL Style 2464 | Multi-Pair | 7 | 32 AWG |
