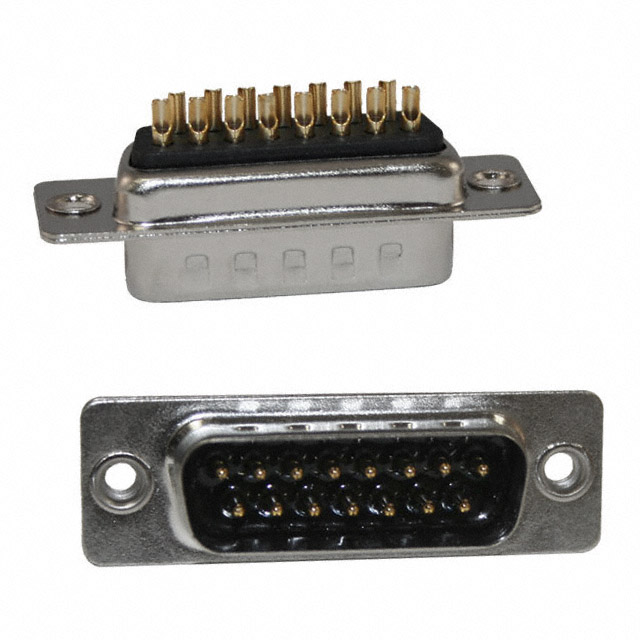

671-009 Series
Manufacturer: NorComp Inc.
Beta
⌘K
671-009-113R031 ROHS COMPLIANT: YES
| Part | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Color | Contact Form | Contact Material | Contact Finish Thickness | Contact Finish | Features | Number of Positions | Number of Rows [custom] | Connector Type | Material Flammability Rating | Shell Material, Finish | Mounting Type | Termination | Flange Feature | Current Rating (Amps) | Connector Style | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Ingress Protection | Contact Type | Wire Gauge [Max] | Wire Gauge [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Nylon 9T Polyamide (PA9T) | 100 °C | -50 °C | Black | Stamped | Brass | Flash | Gold | Grounding Indents | 9 | 2 | Plug Male Pins | UL94 V-0 | Nickel Plated Steel | Panel Mount Through Hole | Solder | 4-40 | 5 A | D-Sub | 1 | DE E | IP66 - Dust Tight Water Resistant | Signal | ||
NorComp Inc. | Nylon 9T Polyamide (PA9T) | 100 °C | -50 °C | Black | Stamped | Brass | Flash | Gold | Grounding Indents | 9 | 2 | Plug Male Pins | UL94 V-0 | Nickel Plated Steel | Panel Mount Through Hole | Solder | Housing/Shell (Unthreaded) | 5 A | D-Sub | 1 | DE E | IP66 - Dust Tight Water Resistant | Signal | ||
NorComp Inc. | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | Black | Stamped | Brass | Flash | Gold | Grounding Indents | 9 | 2 | Plug Male Pins | UL94 V-0 | Nickel Plated Steel | Panel Mount | Cable Side (4-40) | 5 A | D-Sub | 1 | DE E | IP66 - Dust Tight Water Resistant | Signal | 28 AWG | 19.5 AWG | |
NorComp Inc. | Nylon 9T Polyamide (PA9T) | 100 °C | -50 °C | Black | Stamped | Brass | Flash | Gold | Board Lock Grounding Indents | 9 | 2 | Plug Male Pins | UL94 V-0 | Nickel Plated Steel | Panel Mount Through Hole | Solder | Board Side (4-40) | 5 A | D-Sub | 1 | DE E | IP66 - Dust Tight Water Resistant | Signal | ||
NorComp Inc. | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | Black | Stamped | Brass | Flash | Gold | Grounding Indents | 9 | 2 | Plug Male Pins | UL94 V-0 | Nickel Plated Steel | Panel Mount | Housing/Shell (Unthreaded) | 5 A | D-Sub | 1 | DE E | IP66 - Dust Tight Water Resistant | Signal | 28 AWG | 19.5 AWG |
