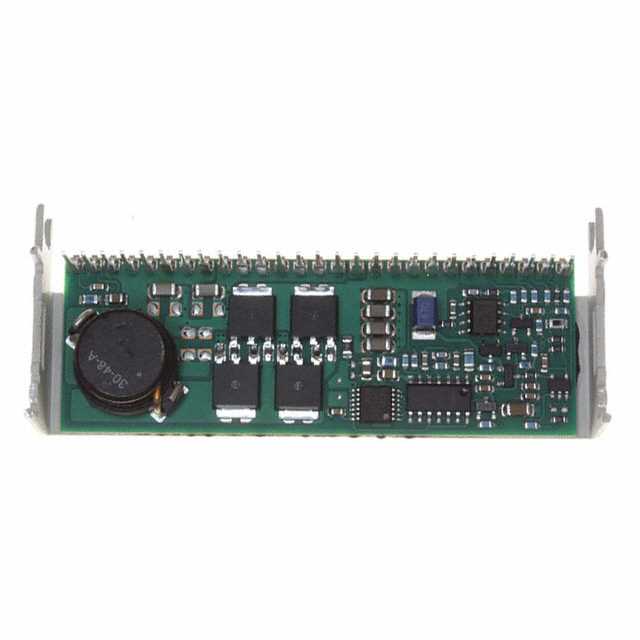

PT7715 Series
Manufacturer: Texas Instruments
Beta
⌘K
DC DC CONVERTER 1.075-1.85V
| Part | Type | Package / Case | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Applications | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Number of Outputs | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Non-Isolated PoL Module | 27-SIP Module Horizontal | 5.5 V | 20 A | ITE (Commercial) | 1.19 " | 0.5 in | 76.2 mm | 3 " | 30.2 mm | 12.7 mm | 1 | 1.85 V | 1.075 V | Through Hole Horizontal | 85 °C | -40 °C | 4.5 V |
