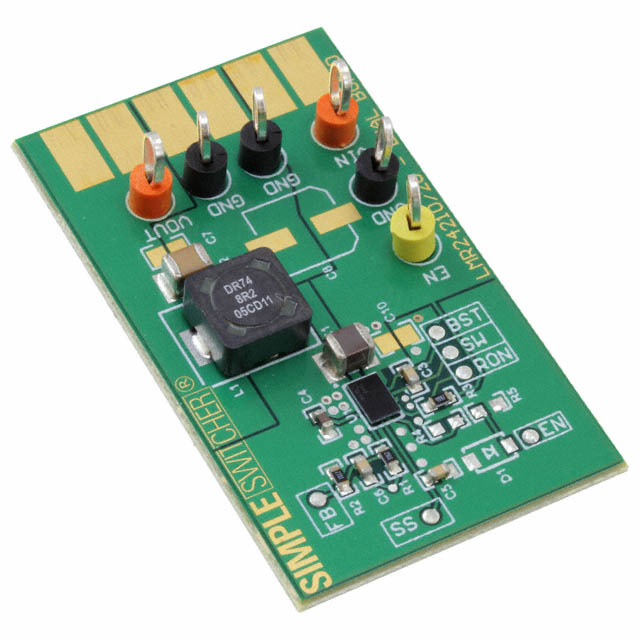

42Vin, 1.0A Step-Down Voltage Regulator in micro SMD
Key Features
• Input Voltage Range of 4.5 V to 42 VOutput Voltage Range of 0.8 V to 24 VOutput Current up to 1 AIntegrated low RDS(ON)Synchronous MOSFETs for High EfficiencyUp to 1 MHz Switching FrequencyLow Shutdown IQ, 25 µA TypicalProgrammable Soft StartNo Loop Compensation RequiredCOT With ERM ArchitectureTiny Overall Solution Reduces System CostIntegrated Synchronous MOSFETs Provides High Efficiency at Low Output VoltagesStable with Low ESR Capacitors28-Bump DSBGA PackagingCreate a custom design using the LMR24010 with theWEBENCH®Power DesignerInput Voltage Range of 4.5 V to 42 VOutput Voltage Range of 0.8 V to 24 VOutput Current up to 1 AIntegrated low RDS(ON)Synchronous MOSFETs for High EfficiencyUp to 1 MHz Switching FrequencyLow Shutdown IQ, 25 µA TypicalProgrammable Soft StartNo Loop Compensation RequiredCOT With ERM ArchitectureTiny Overall Solution Reduces System CostIntegrated Synchronous MOSFETs Provides High Efficiency at Low Output VoltagesStable with Low ESR Capacitors28-Bump DSBGA PackagingCreate a custom design using the LMR24010 with theWEBENCH®Power Designer
Description
AI
The LMR24210 synchronously rectified buck converter features all required functions to implement a highly efficient and cost effective buck regulator. It is capable of supplying 1 A to loads with an output voltage as low as 0.8 V. Dual N-channel synchronous MOSFET switches allow a low component count, thus reducing complexity and minimizing board size.

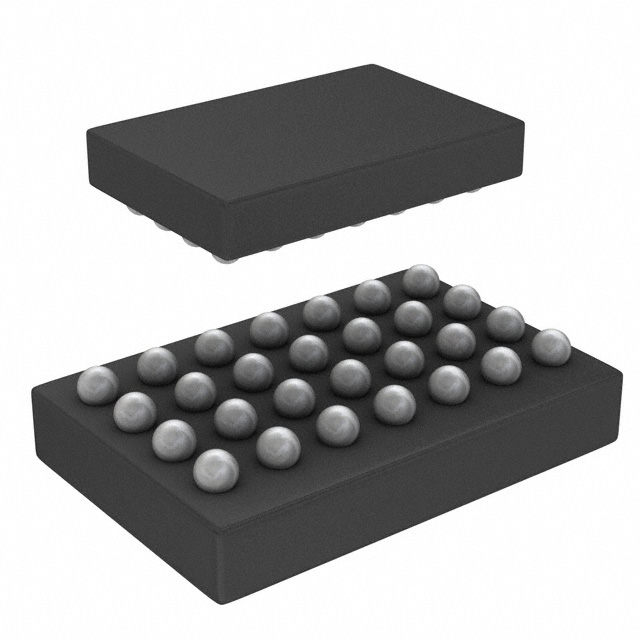

Different from most other COT regulators, the LMR24210 does not rely on output capacitor ESR for stability, and is designed to work exceptionally well with ceramic and other very low ESR output capacitors. It requires no loop compensation, results in a fast load transient response and simple circuit implementation. The operating frequency remains nearly constant with line variations due to the inverse relationship between the input voltage and the on-time. The operating frequency can be externally programmed up to 1 MHz. Protection features include VCCunder-voltage lock-out, output overvoltage protection, thermal shutdown, and gate-drive undervoltage lockout. The LMR24210 is available in the small DSBGA low profile chip-scale package.
The LMR24210 synchronously rectified buck converter features all required functions to implement a highly efficient and cost effective buck regulator. It is capable of supplying 1 A to loads with an output voltage as low as 0.8 V. Dual N-channel synchronous MOSFET switches allow a low component count, thus reducing complexity and minimizing board size.
Different from most other COT regulators, the LMR24210 does not rely on output capacitor ESR for stability, and is designed to work exceptionally well with ceramic and other very low ESR output capacitors. It requires no loop compensation, results in a fast load transient response and simple circuit implementation. The operating frequency remains nearly constant with line variations due to the inverse relationship between the input voltage and the on-time. The operating frequency can be externally programmed up to 1 MHz. Protection features include VCCunder-voltage lock-out, output overvoltage protection, thermal shutdown, and gate-drive undervoltage lockout. The LMR24210 is available in the small DSBGA low profile chip-scale package.
