DML-24 Series

Manufacturer: Adam Tech

Catalog

CONN HEADER VERT 24POS 3MM

Part	Fastening Type	Contact Length - Post	Contact Length - Post	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Style	Number of Positions Loaded	Mounting Type	Current Rating (Amps)	Insulation Height [z]	Insulation Height [z]	Connector Type	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Material	Contact Type	Termination	Contact Finish - Post	Number of Positions	Number of Rows [custom]	Material Flammability Rating	Insulation Material	Features	Voltage Rating	Current Rating (Amps)

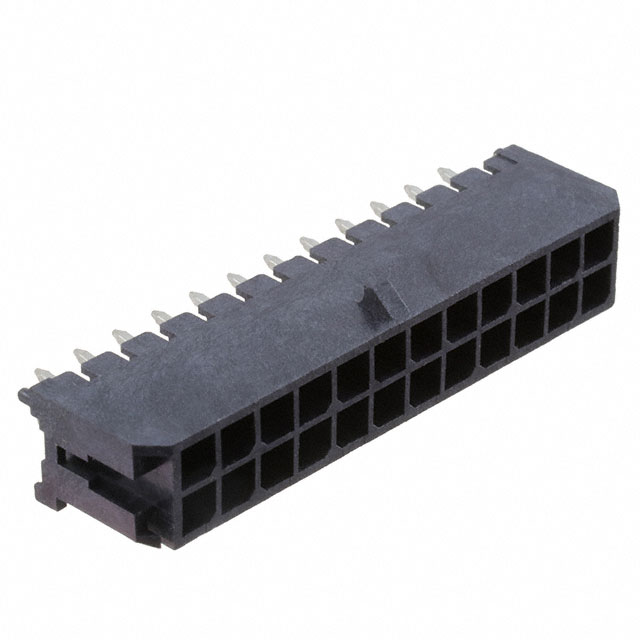

Adam Tech DML-24-A-V-T-A	Locking Ramp	0.125 in	3.18 mm	Black	0.118 in	3 mm	Shrouded - 4 Wall	Board to Cable/Wire	All	Through Hole	Varies by Wire Gauge	0.39 in	9.91 mm	Header	Square	-45 °C	125 °C	3 mm	0.118 in	Brass	Male Pin	Kinked Pin Solder	Tin	24	2	UL94 V-0	Thermoplastic	Board Guide	250 V

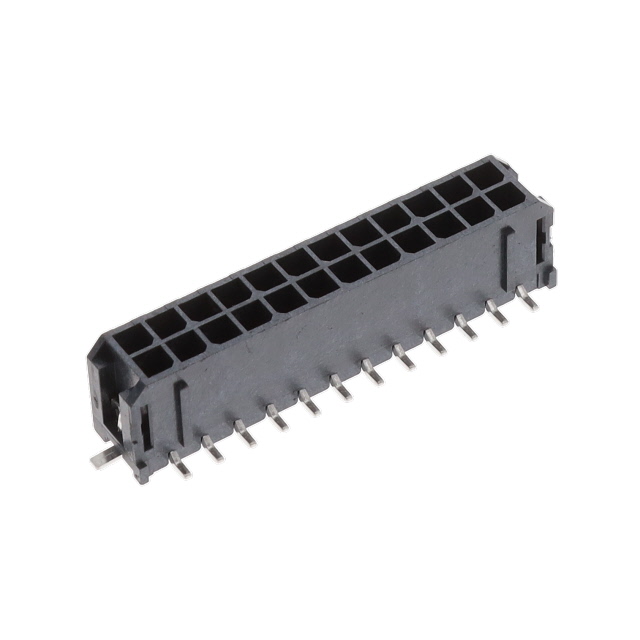

Adam Tech DML-24-A-V-T-TSMT-T/R	Locking Ramp			Black	0.118 in	3 mm	Shrouded - 4 Wall	Board to Cable/Wire	All	Surface Mount		0.39 in	9.91 mm	Header	Square	-25 °C	105 ░C	3 mm	0.118 in	Brass	Male Pin	Solder	Tin	24	2	UL94 V-0	Thermoplastic	Solder Retention	250 VAC	5 A
