9L28015 Series
Manufacturer: Belden Inc.
Beta
⌘K

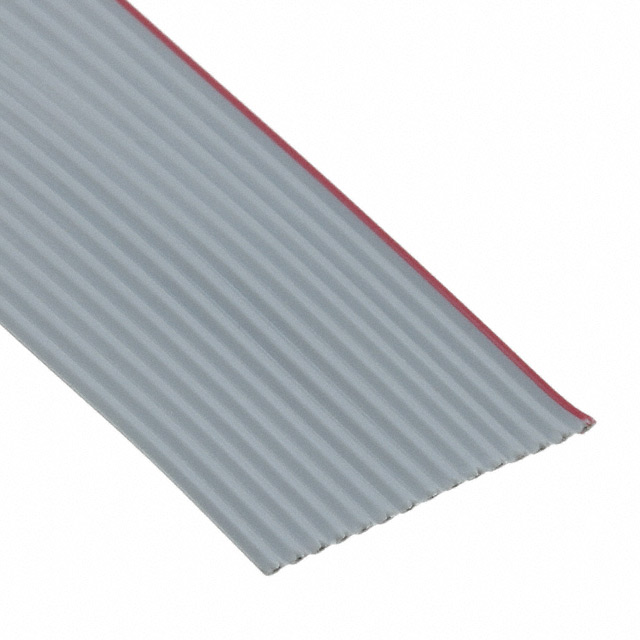

CBL RIBN 15COND 0.05 GRAY 100'
| Part | Insulation Resistance | First Conductor Mark | Current Rating (Amps) | Conductor Material | Cable Type | Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Pitch | Pitch | Ribbon Thickness | Ribbon Thickness | Ribbon Width [custom] | Ribbon Width [custom] | Length | Length | Number of Conductors | Ratings | Jacket (Insulation) Material | Shielding | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 10 GOhm | Red | 1 A | Copper Tinned | Flat Cable | 300 VDC | -40 C | 105 ░C | 0.05 in | 1.27 mm | 0.89 mm | 0.035 in | 19.05 mm | 0.75 in | 100 ' | 30.48 m | 15 | UL Style 2651 | Poly-Vinyl Chloride (PVC) | Unshielded | 28 AWG | 36 AWG | 7 Strands | Gray |
