EEE-FKA Series

Catalog

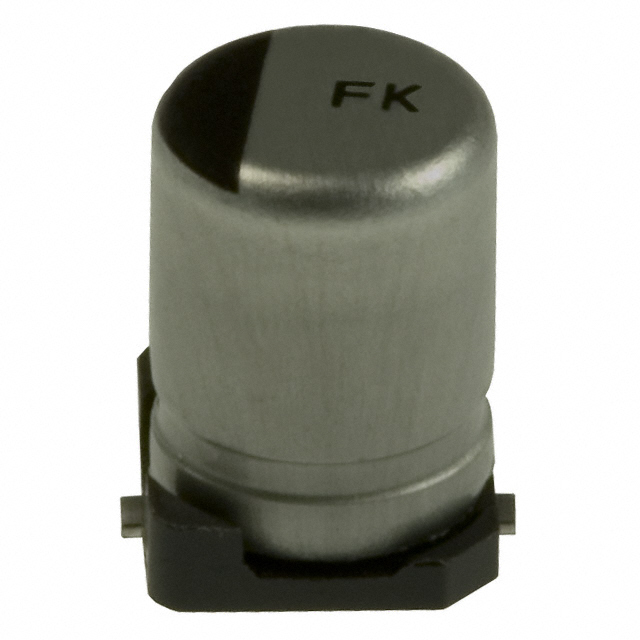

AL LYTIC SMT FK SERIES, HIGH TEMP REFLOW ROHS COMPLIANT: YES

Part	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Ratings	Mounting Type	Applications	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Ripple Current @ High Frequency	Tolerance	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Polarization	Lifetime @ Temp.	Ripple Current @ Low Frequency	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Electronic Components EEE-FKA330UAR	Radial Can - SMD	4 mm	0.157 in	10 V	AEC-Q200	Surface Mount	Automotive High Temperature Reflow	4.3 mm	0.169 "	0.169 in	4.3 mm	90 mA	20 %	33 ÁF	6.1 mm	0.24 "	Polar	2000 Hrs	58.5 mA	1.35 Ohms	-55 C	105 ░C

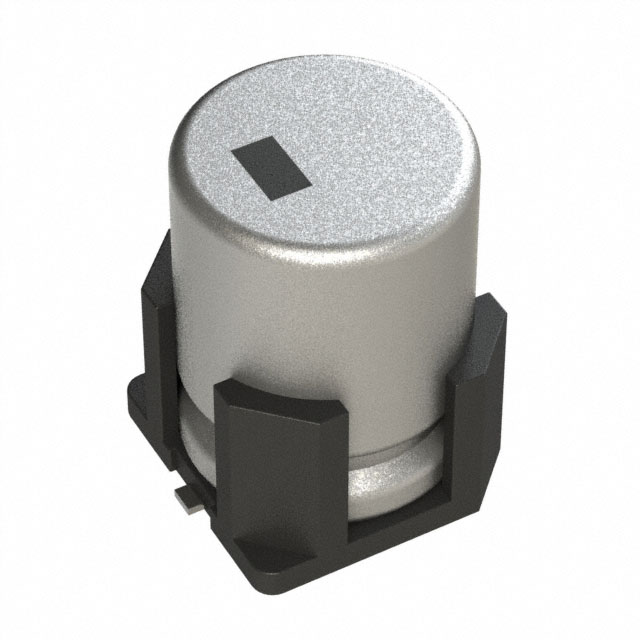

Panasonic Electronic Components EEE-FKA331XSV	Radial Can - SMD	6.3 mm	0.248 "	10 V	AEC-Q200	Surface Mount	Automotive High Temperature Reflow	6.6 mm	0.26 in	0.26 in	6.6 mm	280 mA	20 %	330 µF	8.3 mm	0.327 in	Polar	2000 Hrs	182 mA		-55 C	105 ░C	340 mOhm
Panasonic Electronic Components EEE-FKA221XAL	Radial Can - SMD	6.3 mm	0.248 "	10 V	AEC-Q200	Surface Mount	Automotive High Temperature Reflow	6.6 mm	0.26 in	0.26 in	6.6 mm	280 mA	20 %	220 µF			Polar	2000 Hrs	182 mA	0.34 Ohms	-55 C	105 ░C		8 mm	0.315 in
Panasonic Electronic Components EEE-FKA331XSP	Radial Can - SMD	6.3 mm	0.248 "	10 V	AEC-Q200	Surface Mount	Automotive	6.6 mm	0.26 in	0.26 in	6.6 mm	280 mA	20 %	330 µF			Polar	2000 Hrs	182 mA		-55 C	105 ░C	340 mOhm	8 mm	0.315 in
