TR9CE1500 Series

Catalog

AC/DC DESKTOP ADAPTER 12V 18W

Part	No Load Power Consumption	Efficiency	Polarization	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Input Connector	Voltage - Input [Max]	Voltage - Input [Min]	Cord Length	Cord Length	Current - Output (Max) [Max]	Standard Number	Region Utilized	Applications	Voltage - Output	Approval Agency	Output Connector [diameter]	Output Connector	Output Connector [x]	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Form
GlobTek, Inc. TR9CE1500LCP-N(R6B)	75 mW	Level VI	Positive Center	Cord (Sold Separately)	40 °C	0 °C	IEC 320-C14	264 VAC	90 VAC	1.83 m	72 in	1.5 A	60950-1	International	ITE (Commercial)	12 V	BSI CB CCC CE cULus EAC LPS PSE RCM S-Mark UkrSEPRO VCCI	2.5 mm 5.5 mm	Barrel Plug	11 mm	18 W	1.97 "	80.6 mm	31 mm	50 mm	1.22 in	3.17 "	Desktop (Class I)

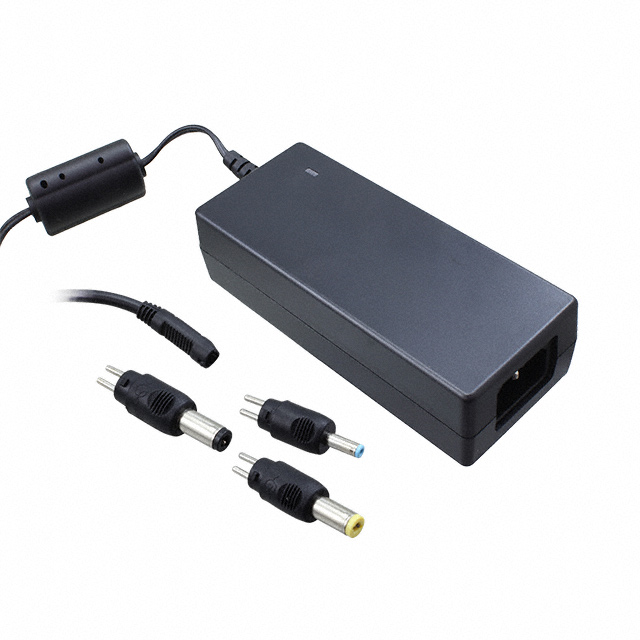

GlobTek, Inc. TR9CE1500T00-IMR6B	75 mW	Level VI		Cord (Sold Separately)	40 °C	-20 ░C	IEC 320-C14	264 VAC	90 VAC	1.2 m	47.2 in	1.5 A	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	International	Household Appliances ITE (Commercial) Medical	12 V	BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UkrSEPRO UL VCCI		Barrel Plug Kit (1.3mm x 3.5mm		18 W	3.43 "	47 mm	32 mm	87 mm	1.26 "	1.85 in	Desktop (Class I)

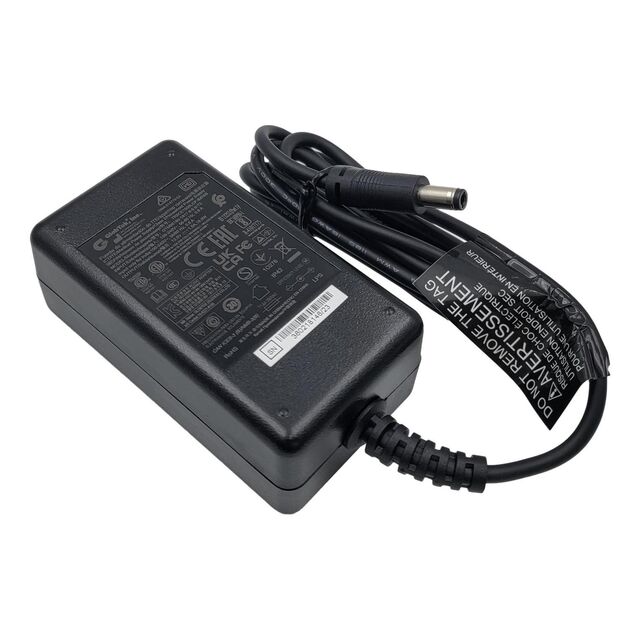

GlobTek, Inc. TR9CE1500LCP-IMR6B	75 mW	Level VI	Positive Center	Cord (Sold Separately)	40 °C	-20 ░C	IEC 320-C14	264 VAC	90 VAC	1.2 m	47.2 in	1.5 A	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	International	Household Appliances ITE (Commercial) Medical	12 V	BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UkrSEPRO UL VCCI	2.5 mm 5.5 mm	Barrel Plug	11 mm	18 W	3.43 "	47 mm	32 mm	87 mm	1.26 "	1.85 in	Desktop (Class I)
