5714-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

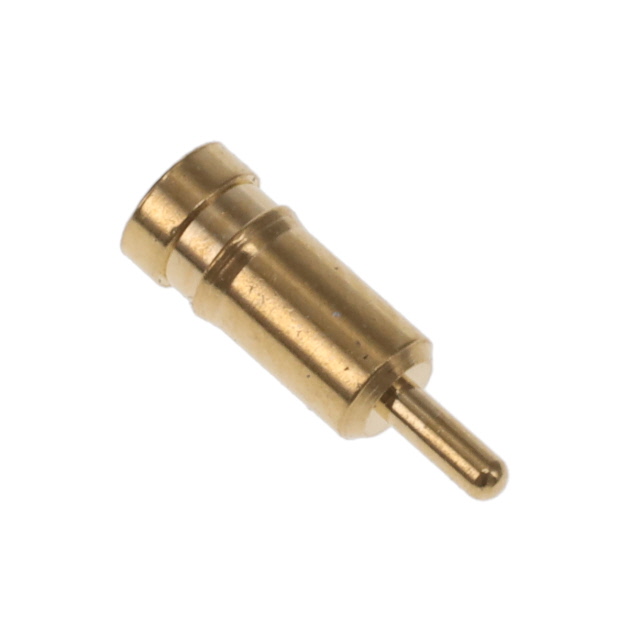

RECEPTACLE WITH A STANDARD TAIL
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Flange Diameter [diameter] | Flange Diameter [diameter] | Termination | Tail Type | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Socket Depth | Socket Depth | Contact Finish | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Tail Diameter [diameter] | Tail Diameter [diameter] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 30 Áin | 0.76 Ám | 0.09 in | 2.29 mm | Solder | Standard Tail | 1.63 mm | 0.064 in | 0.083 in | 2.11 mm | 0.275 in | 6.99 mm | 4.32 mm | 0.17 in | Gold | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | 0.03 in | 0.76 mm | Beryllium Copper |
