2195763 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

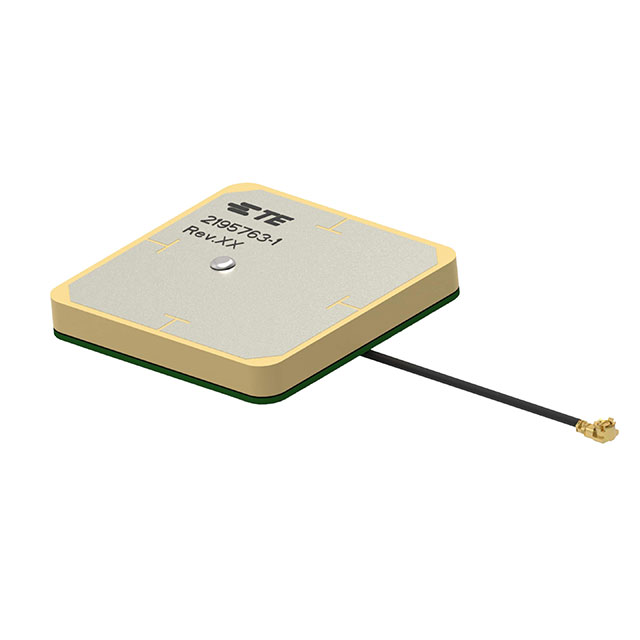

ANTENNAS GNSS_35X35_L70
| Part | Antenna Type | Height (Max) [Max] | Height (Max) [Max] | Number of Bands | Termination | Frequency (Center/Band) | Frequency Group [Max] | Frequency Group [Min] | Frequency Group | RF Family/Standard | Frequency Range [Min] | Frequency Range [Max] | Mounting Type | Features | VSWR | Gain | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Ceramic Patch | 9 mm | 0.354 in | 1 | IPEX MHF1 U.FL (UMCC) | 1.5825 GHz | 2 GHz | 1 GHz | UHF | Navigation | 1.559 GHz | 1.606 GHz | Adhesive | Cable - 70mm LNA | 3 | 26 dBi | GNSS |
