2842248 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

34P,2MM,SHRD HDR,DRRT,0.1AU,TB

Part	Connector Type	Style	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Termination	Voltage Rating	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Fastening Type	Shrouding	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Material	Number of Positions	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Insulation Color	Contact Type	Material Flammability Rating	Applications	Number of Positions
TE Connectivity Raychem Cable Protection 3-2842248-4	Header	Board to Board Cable	2.5 mm	0.098 in	2 A	Solder	125 VAC	Copper Alloy	0.079 in	2 mm	Gold	Detent Lock	Shrouded - 4 Wall	0.079 in	2 mm	Thermoplastic	34	0.142 in	3.6 mm	All	2	125 °C	-40 °C	Tin	Square	2 çm	78.7 çin	3.94 µin	0.1 µm	Through Hole Right Angle	Black	Male Pin	UL94 V-0

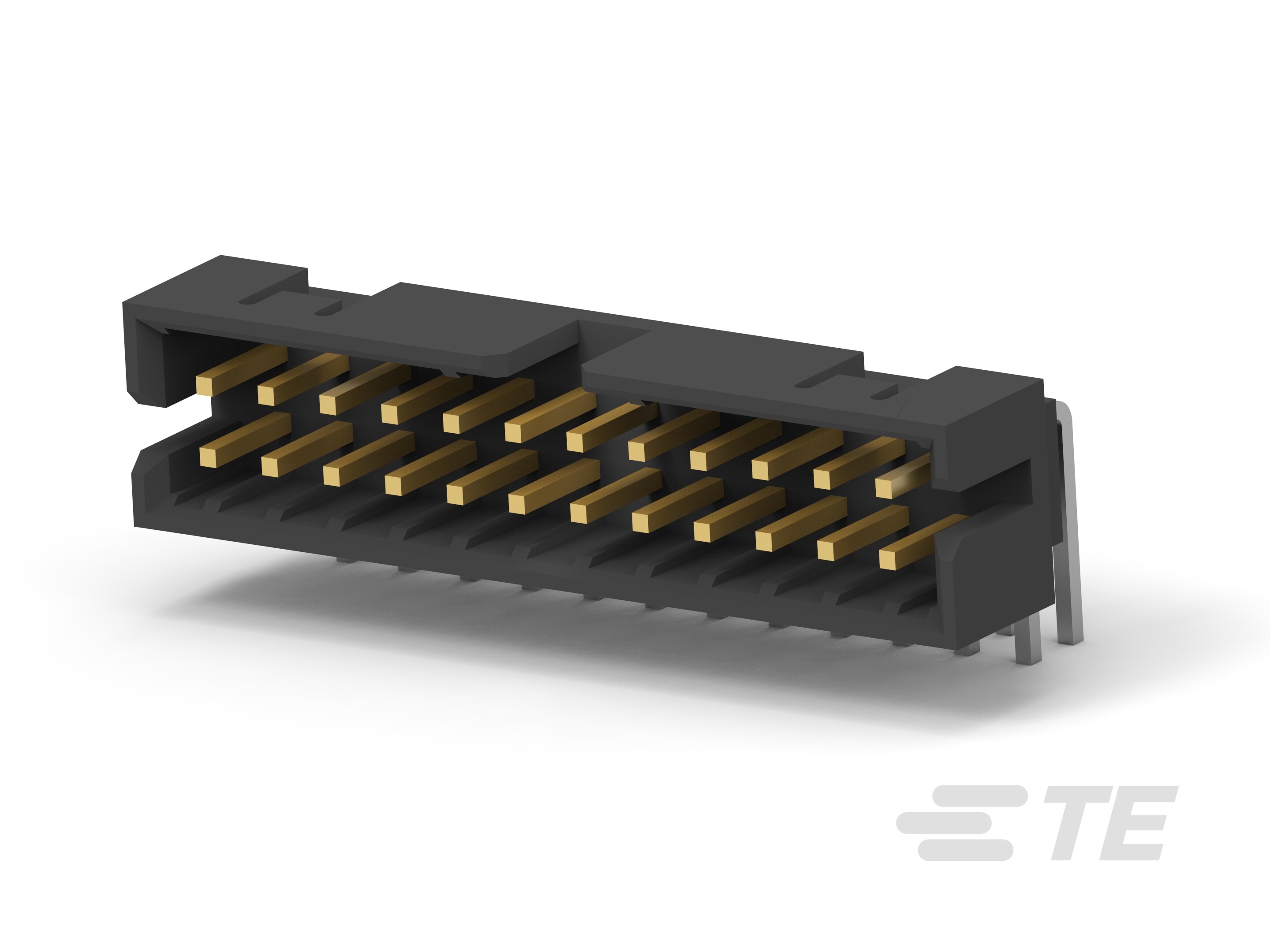

TE Connectivity Raychem Cable Protection 2-2842248-6	Header	Board to Board Cable	2.5 mm	0.098 in	2 A	Solder	125 VAC	Copper Alloy	0.079 in	2 mm	Gold	Detent Lock	Shrouded - 4 Wall	0.079 in	2 mm	Thermoplastic	26	0.142 in	3.6 mm	All	2	125 °C	-40 °C	Tin	Square	2 çm	78.7 çin	3.94 µin	0.1 µm	Through Hole Right Angle	Black	Male Pin	UL94 V-0
TE Connectivity Raychem Cable Protection 4-2842248-4	Header	Board to Board Cable	2.5 mm	0.098 in	2 A	Solder	125 VAC	Copper Alloy	0.079 in	2 mm	Gold	Detent Lock	Shrouded - 4 Wall	0.079 in	2 mm	Thermoplastic	44	0.142 in	3.6 mm	All	2	125 °C	-40 °C	Tin	Square	2 çm	78.7 çin	3.94 µin	0.1 µm	Through Hole Right Angle	Black	Male Pin	UL94 V-0

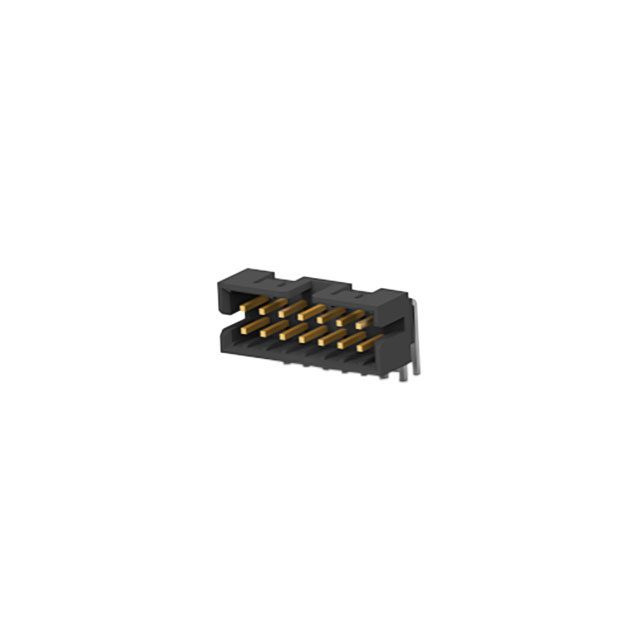

TE Connectivity Raychem Cable Protection 1-2842248-4	Header	Board to Board Cable	2.5 mm	0.098 in	2 A	Solder	125 VAC	Copper Alloy	0.079 in	2 mm	Gold	Detent Lock	Shrouded - 4 Wall	0.079 in	2 mm	Thermoplastic	14	0.141 in	3.6 mm	All	2	125 °C	-40 °C	Tin	Square	2 çm	78.7 çin	3.94 µin	0.1 µm	Through Hole Right Angle	Black	Male Pin	UL94 V-0	General Purpose Industrial
TE Connectivity Raychem Cable Protection 1-2842248-6	Header	Board to Board Cable	2.5 mm	0.098 in	2 A	Solder	125 VAC	Copper Alloy	0.079 in	2 mm	Gold	Detent Lock	Shrouded - 4 Wall	0.079 in	2 mm	Thermoplastic		0.141 in	3.6 mm	All	2	125 °C	-40 °C	Tin	Square	2 çm	78.7 çin	3.94 µin	0.1 µm	Through Hole Right Angle	Black	Male Pin	UL94 V-0	General Purpose Industrial	16
TE Connectivity Raychem Cable Protection 4-2842248-0	Header	Board to Board Cable	2.5 mm	0.098 in	2 A	Solder	125 VAC	Copper Alloy	0.079 in	2 mm	Gold	Detent Lock	Shrouded - 4 Wall	0.079 in	2 mm	Thermoplastic	40	0.142 in	3.6 mm	All	2	125 °C	-40 °C	Tin	Square	2 çm	78.7 çin	3.94 µin	0.1 µm	Through Hole Right Angle	Black	Male Pin	UL94 V-0
TE Connectivity Raychem Cable Protection 2-2842248-4	Header	Board to Board Cable	2.5 mm	0.098 in	2 A	Solder	125 VAC	Copper Alloy	0.079 in	2 mm	Gold	Detent Lock	Shrouded - 4 Wall	0.079 in	2 mm	Thermoplastic	24	0.142 in	3.6 mm	All	2	125 °C	-40 °C	Tin	Square	2 çm	78.7 çin	3.94 µin	0.1 µm	Through Hole Right Angle	Black	Male Pin	UL94 V-0
