C1210H Series

Manufacturer: KEMET

Catalog

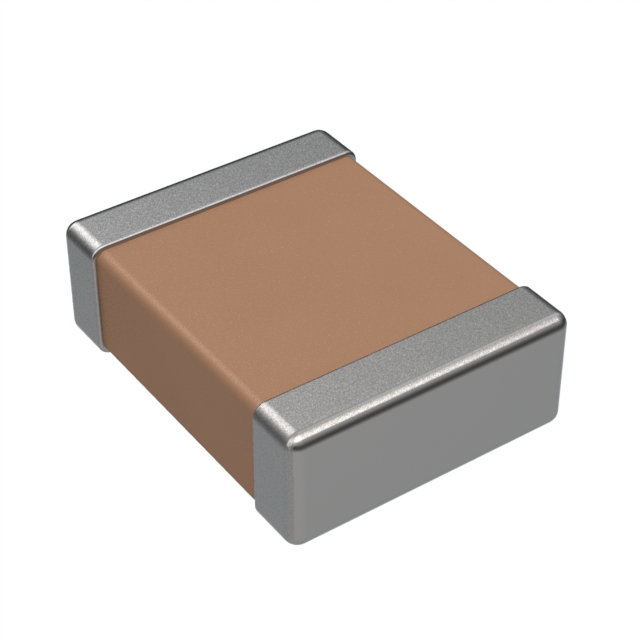

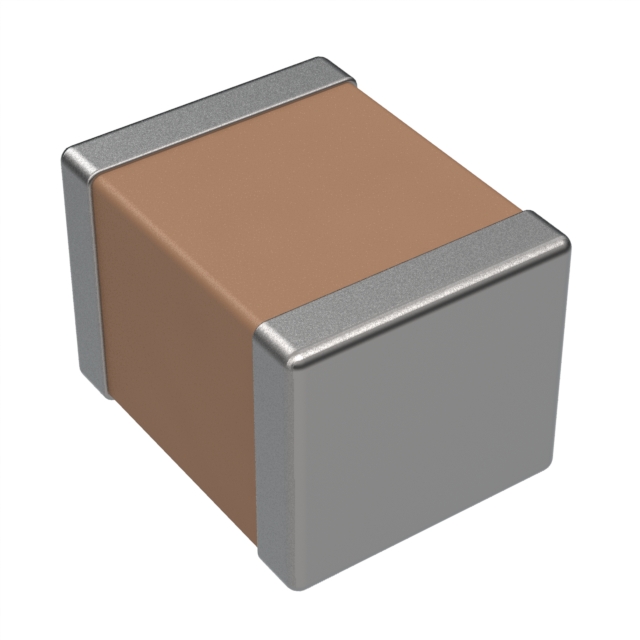

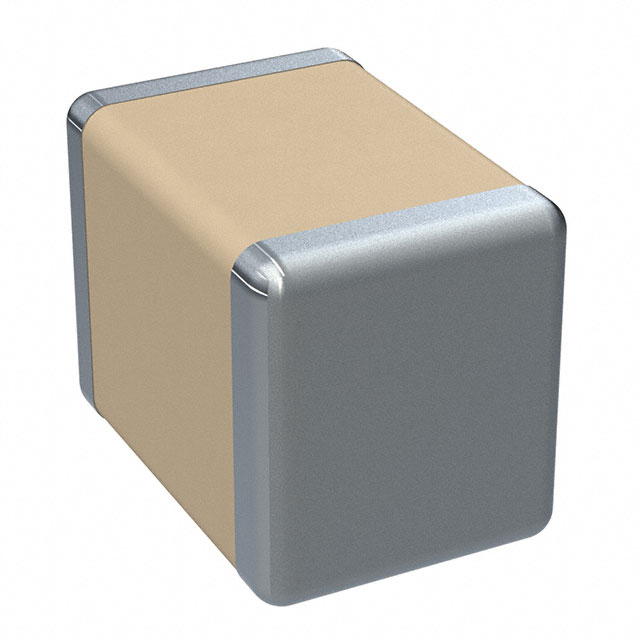

CAP CER 10000PF 100V NP0 1210

Part	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Thickness (Max) [Max]	Thickness (Max) [Max]	Capacitance	Voltage - Rated	Package / Case	Package / Case	Temperature Coefficient	Features	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Voltage - Rated	Thickness (Max) [Max] [custom]	Thickness (Max) [Max] [custom]
KEMET C1210H103J1GAC7800	5 %	200 °C	-55 C	Downhole	0.047 in	1.2 mm	10000 pF	100 V	1210	3225 Metric	C0G NP0	High Temperature Low ESL	2.5 mm	0.098 in	3.2 mm	0.126 "	MLCC Surface Mount
KEMET C1210H272JDGAC7800	5 %	200 °C	-55 C	Downhole	0.11 in	2.8 mm	2700 pF	1000 V	1210	3225 Metric	C0G NP0	High Temperature High Voltage Low ESL	2.5 mm	0.098 in	3.2 mm	0.126 "	MLCC Surface Mount	1 kV
KEMET C1210H562KCGACT500	10 %	200 °C	-55 C	Downhole			0.0056 µF	500 V	1210	3225 Metric	C0G NP0	High Temperature High Voltage Low ESL	2.5 mm	0.098 in	3.2 mm	0.126 "	MLCC Surface Mount		0.087 in	2.2 mm
KEMET C1210H102J1GAC7800	5 %	200 °C	-55 C	Downhole	0.035 "	0.88 mm	0.001 µF	100 V	1210	3225 Metric	C0G NP0	High Temperature Low ESL	2.5 mm	0.098 in	3.2 mm	0.126 "	MLCC Surface Mount
KEMET C1210H332J2GAC7800	5 %	200 °C	-55 C	Downhole	0.047 in	1.2 mm	0.0033 µF	200 VDC	1210	3225 Metric	C0G NP0	High Temperature Low ESL	2.5 mm	0.098 in	3.2 mm	0.126 "	MLCC Surface Mount
KEMET C1210H562J2GAC7800	5 %	200 °C	-55 C	Downhole	0.055 in	1.4 mm	0.0056 µF	200 VDC	1210	3225 Metric	C0G NP0	High Temperature Low ESL	2.5 mm	0.098 in	3.2 mm	0.126 "	MLCC Surface Mount
KEMET C1210H154J5GAC7800	5 %	200 °C	-55 C	Downhole	0.075 in	1.9 mm	0.15 ÁF	50 VDC	1210	3225 Metric	C0G NP0	High Temperature Low ESL	2.5 mm	0.098 in	3.2 mm	0.126 "	MLCC Surface Mount
KEMET C1210H681F5GAFT0507130	1 %	200 °C	-55 C	Downhole	0.035 "	0.88 mm	680 pF	50 VDC	1210	3225 Metric	C0G NP0	High Temperature Low ESL	2.5 mm	0.098 in	3.2 mm	0.126 "	MLCC Surface Mount
KEMET C1210H562KCGAC7800	10 %	200 °C	-55 C	Downhole			0.0056 µF	500 V	1210	3225 Metric	C0G NP0	High Temperature High Voltage Low ESL	2.5 mm	0.098 in	3.2 mm	0.126 "	MLCC Surface Mount		0.087 in	2.2 mm
