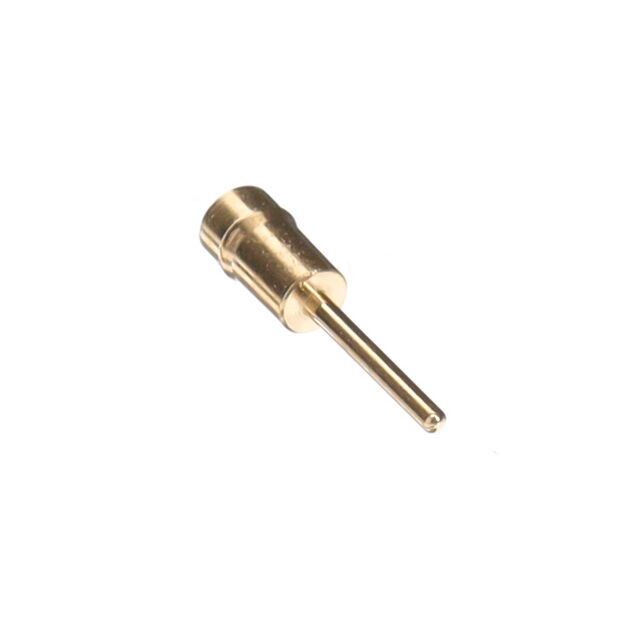

1130-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC 0.018DIA GOLD
| Part | Contact Finish Thickness | Contact Finish Thickness | Terminal Type | Contact Material | Termination | Length - Above Flange [x] | Length - Above Flange [x] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Type | Terminal Style | Length - Overall [x] | Length - Overall [x] | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 50 µin | 1.27 µm | PC Pin | Phosphor Bronze | Press-Fit | 5.84 mm | 0.23 in | 1.45 mm | 0.057 in | Gold | 0.018 in | 0.46 mm | 0.057 in | 1.45 mm | Through Hole | Single End | 6.55 mm | 0.258 in | Non-Insulated |
 Mill-Max Manufacturing Corp. | 200 Áin | 5.08 Ám | PC Pin | Phosphor Bronze | Press-Fit | 5.84 mm | 0.23 in | 1.45 mm | 0.057 in | Tin-Lead | 0.018 in | 0.46 mm | 0.057 in | 1.45 mm | Through Hole | Single End | 6.55 mm | 0.258 in | Non-Insulated |
 Mill-Max Manufacturing Corp. | 10 Áin | 0.25 Ám | PC Pin | Phosphor Bronze | Press-Fit | 5.84 mm | 0.23 in | 1.45 mm | 0.057 in | Gold | 0.018 in | 0.46 mm | 0.057 in | 1.45 mm | Through Hole | Single End | 6.55 mm | 0.258 in | Non-Insulated |
Mill-Max Manufacturing Corp. | 20 µin | 0.51 µm | PC Pin | Phosphor Bronze | Press-Fit | 5.84 mm | 0.23 in | 1.45 mm | 0.057 in | Gold | 0.018 in | 0.46 mm | 0.057 in | 1.45 mm | Through Hole | Single End | 6.55 mm | 0.258 in | Non-Insulated |
