MRAN4 Series

Catalog

SWITCH ROTARY

Part	Panel Cutout Dimensions [diameter]	Contact Material	Actuator Length [x]	Contact Timing	Termination Style	Number of Positions [Min]	Number of Positions [Max]	Voltage Rating - AC	Index Stops	Contact Finish	Number of Decks [custom]	Actuator Type	Depth Behind Panel [z]	Features	Mounting Type	Current Rating (Amps)	Angle of Throw	Circuit per Deck
NKK Switches MRAN403-CF	0.25 in	Copper	15.8 mm	Non-Shorting (BBM)	PC Pin	2	3	125 V	Adjustable	Silver	1	Knob	17 mm	Process Sealed	Panel Mount Through Hole	250 mA	30 °	4P3T
NKK Switches MRAN403-BF	0.25 in	Copper	14.3 mm	Non-Shorting (BBM)	PC Pin	2	3	125 V	Adjustable	Silver	1	Knob	17 mm	Process Sealed	Panel Mount Through Hole	250 mA	30 °	4P3T
NKK Switches MRAN403	0.25 in	Copper	10 mm	Non-Shorting (BBM)	PC Pin	2	3	125 V	Adjustable	Silver	1	Flatted (3.17mm Dia)	17 mm	Process Sealed	Panel Mount Through Hole	250 mA	30 °	4P3T
NKK Switches MRAN403-BH	0.25 in	Copper	14.3 mm	Non-Shorting (BBM)	PC Pin	2	3	125 V	Adjustable	Silver	1	Knob	17 mm	Process Sealed	Panel Mount Through Hole	250 mA	30 °	4P3T

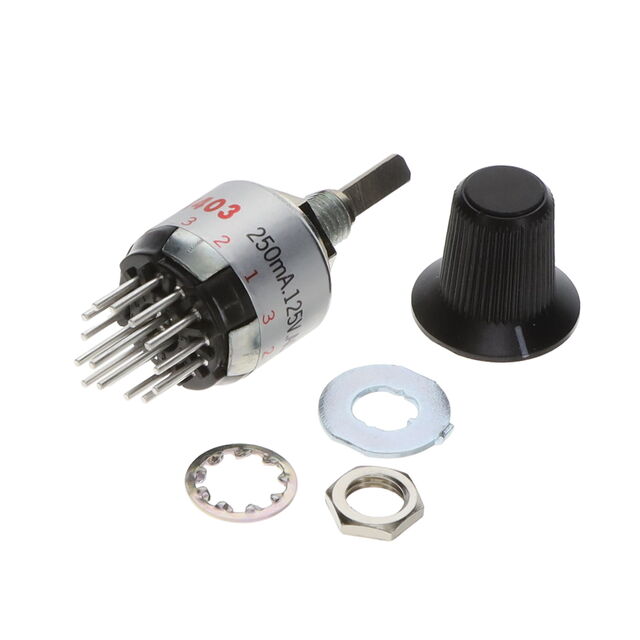

NKK Switches MRAN403-BA	0.25 in	Copper	14.3 mm	Non-Shorting (BBM)	PC Pin	2	3	125 V	Adjustable	Silver	1	Knob	17 mm	Process Sealed	Panel Mount Through Hole	250 mA	30 °	4P3T

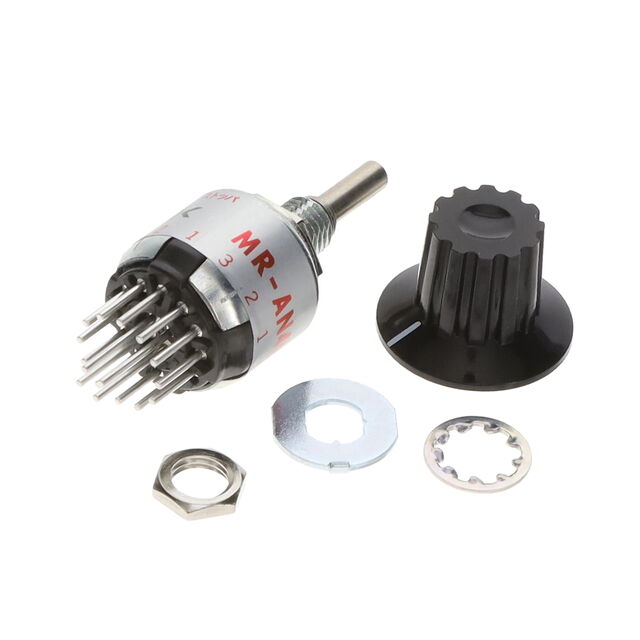

NKK Switches MRAN403-A	0.25 in	Copper	13 mm	Non-Shorting (BBM)	PC Pin	2	3	125 V	Adjustable	Silver	1	Knob	17 mm	Process Sealed	Panel Mount Through Hole	250 mA	30 °	4P3T
NKK Switches MRAN403-BG	0.25 in	Copper	14.3 mm	Non-Shorting (BBM)	PC Pin	2	3	125 V	Adjustable	Silver	1	Knob	17 mm	Process Sealed	Panel Mount Through Hole	250 mA	30 °	4P3T
NKK Switches MRAN403-BB	0.25 in	Copper	14.3 mm	Non-Shorting (BBM)	PC Pin	2	3	125 V	Adjustable	Silver	1	Knob	17 mm	Process Sealed	Panel Mount Through Hole	250 mA	30 °	4P3T
