SM15B-SU Series

Catalog

CONN HEADER SMD R/A 15POS 0.8MM

Part	Insulation Color	Connector Type	Insulation Height [z]	Insulation Height [z]	Contact Type	Shrouding	Contact Finish - Post	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Features	Termination	Contact Material	Voltage Rating	Current Rating (Amps)	Number of Positions	Number of Rows	Fastening Type	Mounting Type	Style	Material Flammability Rating	Contact Shape	Pitch - Mating	Pitch - Mating	Insulation Material

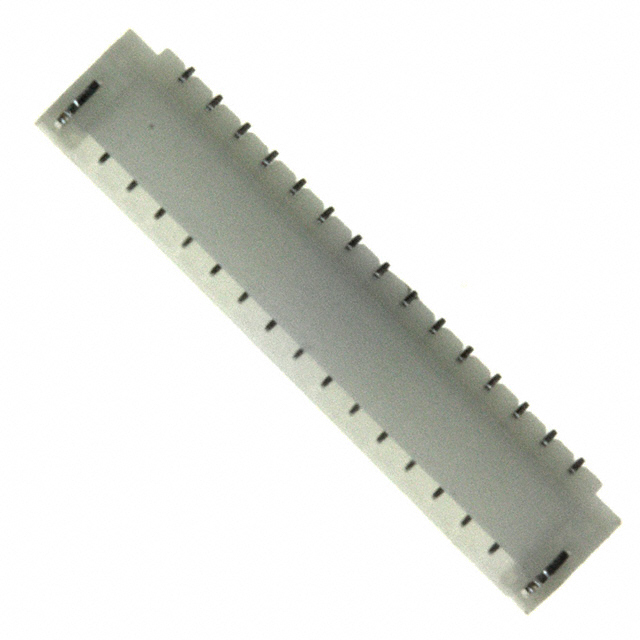

JST Sales America Inc. SM15B-SURS-TF	Natural	Header	0.069 in	1.75 mm	Outer Shroud Contact	Shrouded - 4 Wall	Tin	All	85 °C	-25 °C	Solder Retention	Solder	Copper Alloy	30 VDC	0.2 A 0.5 A	15	1	Push-Pull	Right Angle Surface Mount	Board to Cable/Wire	UL94 V-0	Rectangular	0.8 mm	0.031 in	Nylon Polyamide (PA)
