902005CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

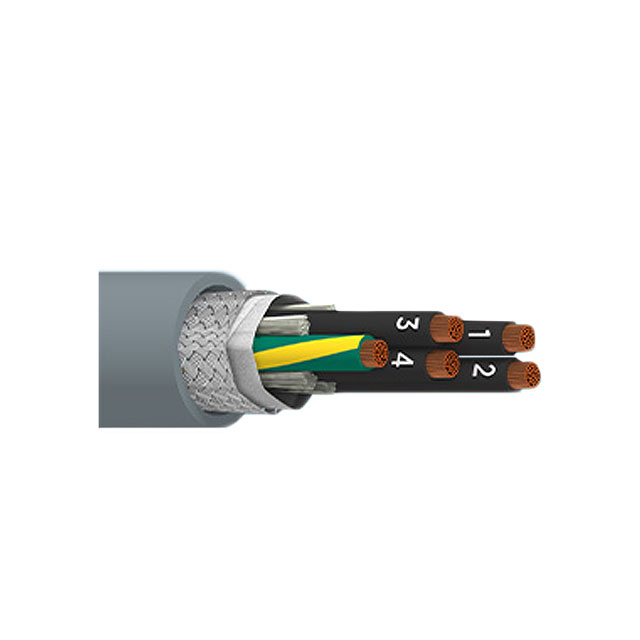

CABLE 5CON 20AWG SLATE SHLD FEET
| Part | Shield Coverage | Shield Material | Spool Size [x] | Spool Size [x] | Conductor Insulation | Conductor Insulation | Conductor Insulation | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Conductor Material | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Length | Jacket (Insulation) Material | Cable Type | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 85 % | Copper Tinned | 304.8 m | 1000 ft | Polyamide (PA) | Nylon | Poly-Vinyl Chloride (PVC) | 5 | 10 | 30 AWG | 600 V | Copper Bare | 20 AWG | 1.143 mm | 0.045 in | -30 ░C | 90 °C | Slate | Enter Number of Feet in Order Quantity | Thermoplastic Elastomer (TPE) | Multi-Conductor | Braid | 8.66 mm | 0.341 in | Industrial |
