61NT1 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH TOGGLE SPST-NO 10A 125V

Part	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Features	Panel Cutout Dimensions [diameter]	Ingress Protection	Current Rating (Amps)	Circuit	Actuator Type	Bushing Thread	Mounting Type	Actuator Length [x]	Illumination	Switch Function	Termination Style

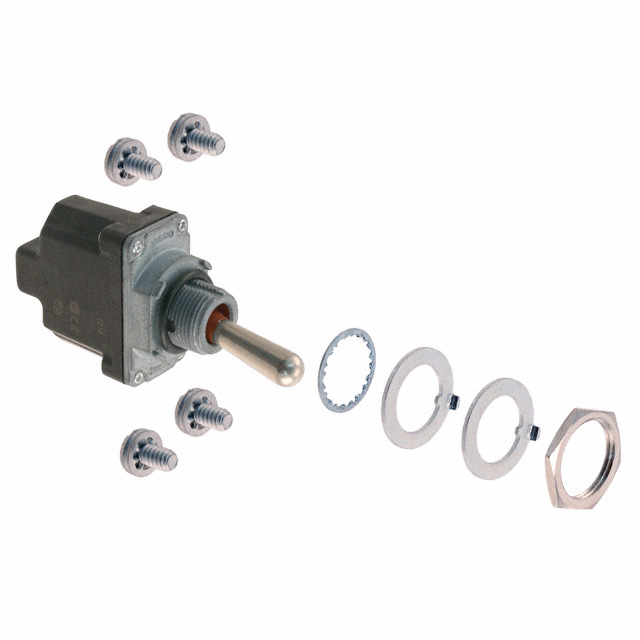

Honeywell Sensing and Productivity Solutions 61NT1-6	125 V	71 °C	-40 C	Sealed	12.4 mm	IP67/IP68	10 A	SPST-NO	Standard Round	15/32-32	Panel Mount	17.02 mm	Non-Illuminated	Off-Mom	Screw Terminal
Honeywell Sensing and Productivity Solutions 61NT1-1	125 V	71 °C	-40 C	Sealed	12.4 mm	IP67/IP68	15 A	SPDT	Standard Round	15/32-32	Panel Mount	17.02 mm	Non-Illuminated	On-Off-On	Screw Terminal
Honeywell Sensing and Productivity Solutions 61NT1-3	125 V	71 °C	-40 C	Sealed	12.4 mm	IP67/IP68	15 A	SPDT	Standard Round	15/32-32	Panel Mount	17.02 mm	Non-Illuminated	On-On	Screw Terminal
Honeywell Sensing and Productivity Solutions 61NT1-3-NH	125 V	71 °C	-40 C	Sealed	12.4 mm	IP67/IP68	15 A	SPDT	Standard Round	15/32-32	Panel Mount	17.02 mm	Non-Illuminated	On-On	Screw Terminal
Honeywell Sensing and Productivity Solutions 61NT1-8-NH	125 V	71 °C	-40 C	Sealed	12.4 mm	IP67/IP68	10 A	SPDT	Standard Round	15/32-32	Panel Mount	17.02 mm	Non-Illuminated	On-Mom	Screw Terminal

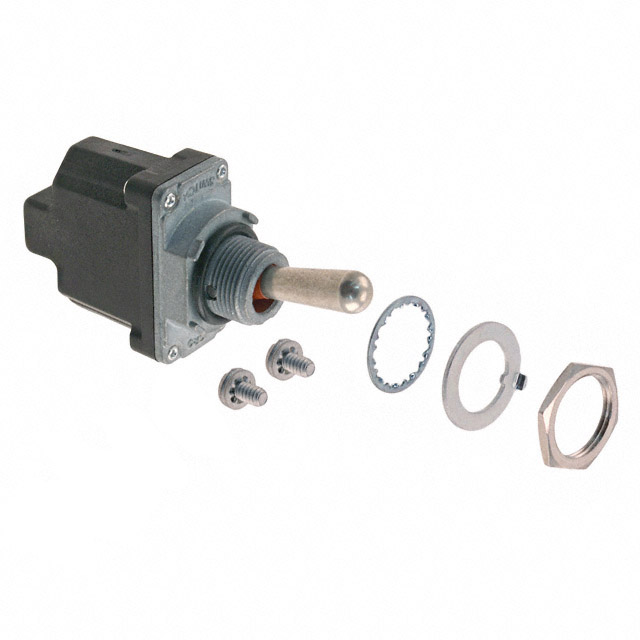

Honeywell Sensing and Productivity Solutions 61NT1-2	125 V	71 °C	-40 C	Sealed	12.4 mm	IP67/IP68	15 A	SPST	Standard Round	15/32-32	Panel Mount	17.02 mm	Non-Illuminated	On-Off	Screw Terminal
Honeywell Sensing and Productivity Solutions 61NT1-7	125 V	71 °C	-40 C	Sealed	12.4 mm	IP67/IP68	10 A	SPDT	Standard Round	15/32-32	Panel Mount	17.02 mm	Non-Illuminated	Mom-Off-Mom	Screw Terminal
Honeywell Sensing and Productivity Solutions 61NT1-8	125 V	71 °C	-40 C	Sealed	12.4 mm	IP67/IP68	10 A	SPDT	Standard Round	15/32-32	Panel Mount	17.02 mm	Non-Illuminated	On-Mom	Screw Terminal

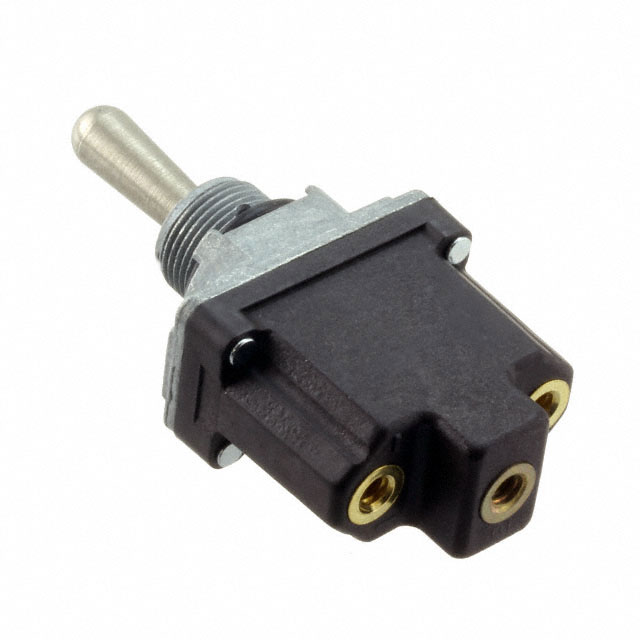

Honeywell Sensing and Productivity Solutions 61NT1-7-NH	125 V	71 °C	-40 C	Sealed	12.4 mm	IP67/IP68	10 A	SPDT	Standard Round	15/32-32	Panel Mount	17.02 mm	Non-Illuminated	Mom-Off-Mom	Screw Terminal
